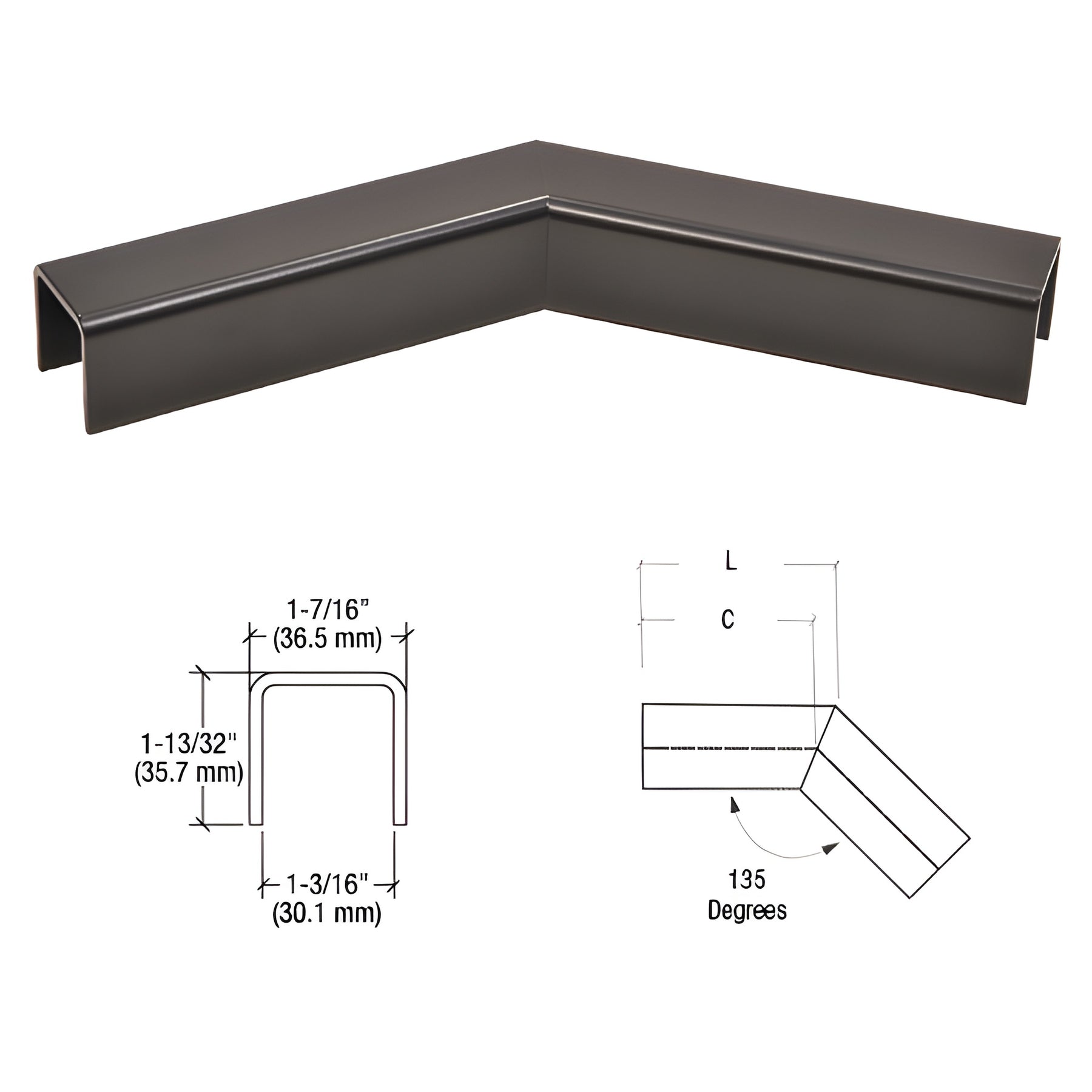

CRL Matte Black L10 Series U-Channel 135 Degree Horizontal Corner for 21.52 mm Laminated Glass Cap Railing
Item # L10H3MBL
$196.02
CAD
Finish (2)
-
Brushed Stainless Steel -
Matte Black
Overview
| SKU | L10H3MBL |
|---|---|
| Sold As | 1 Each |
| Angle | 135 |
| Centerline | 5-1/4 in. (133 mm) |
| Finish/Color | Matte Black |
| Glazing Thickness | 1/2 in. (13 mm) |
| Length | 6 in. (152 mm) |
| Material | 316 Stainless Steel |
Description
- Welded and Finished
- Ready-to-Install
- Use Laminated Tempered Glass
This CRL 135 Degree Horizontal Corner for 27/32" (21.52 mm) thick laminated glass allows for hairline joint assemblies with straight lengths of CRL Cap Rail. Use of our LR21PV Cap Railing Rubber Insert and 95CBL Silicone is required to achieve a secure and permanent bond.
NOTE: When used with 27/32" (21.52 mm) glass, our LR21PV Cap Railing Rubber Insert and 95CBL Silicone should be used to secure the glass.
For more information contact CRL Railing Products Technical Sales Department.
