CRL Locknetics® Electromagnetic Mortise Overhead Shear Lock - 3000 lb

• Fully Automatic 12/24V DC Selection
• 3000 Pounds Shear Holding Force (GF3000 Series)
• Limited Lifetime Warranty

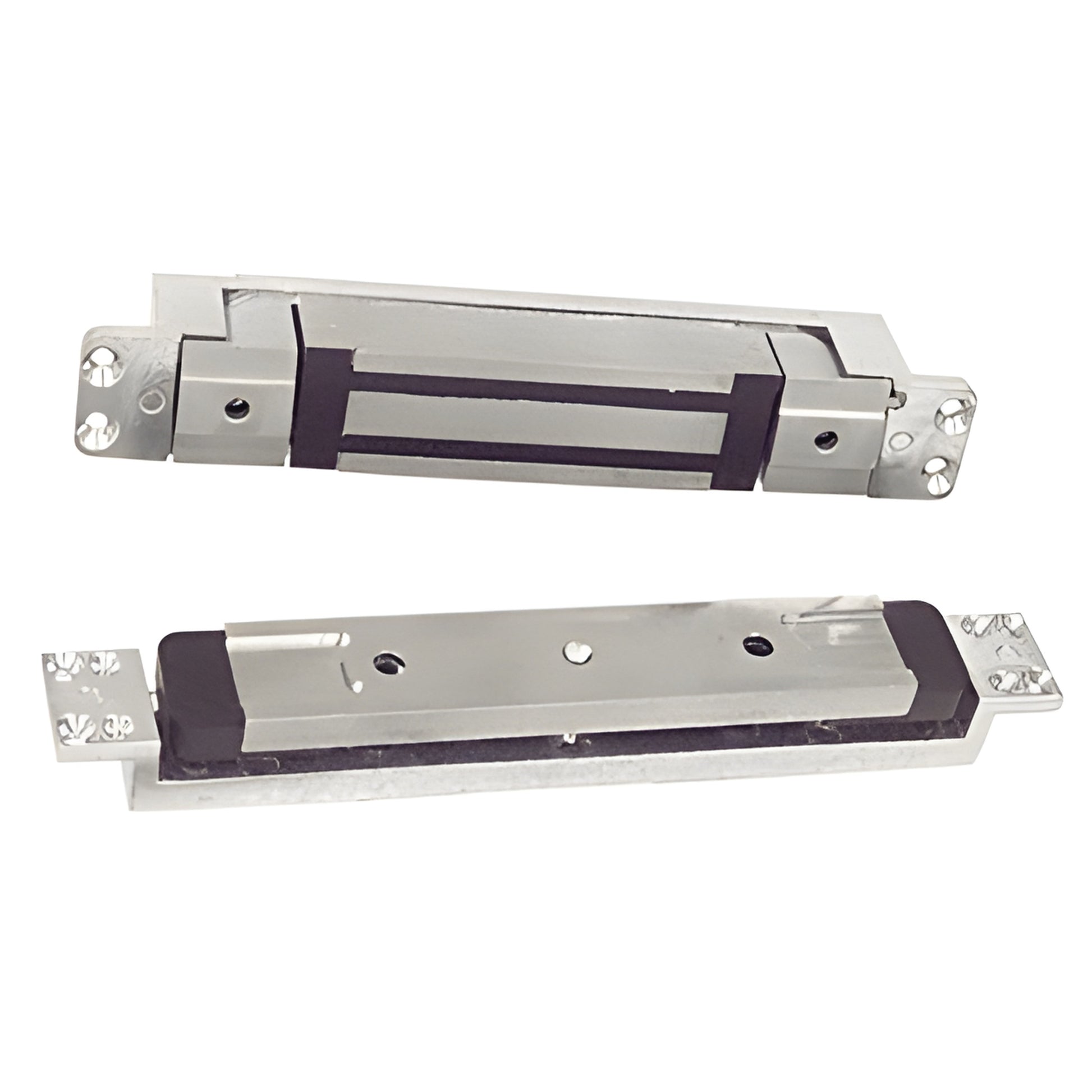

CRL Mortise Mounted Shear Lock — Model GF3000 is a concealed, mortise-mounted shear lock engineered for commercial doors and Herculite® type doors. Its patented floating-magnet design lets the lock assembly move toward the armature during engagement, overcoming gaps up to 1/4" (6 mm) without current inrush. Key differentiators include a fully hidden installation, low operating temperature, and an adjustable automatic relock for reliable access control performance.


The GF3000 Series delivers up to 3000 lbs. shear holding force while operating efficiently on 12/24V DC power. Automatic voltage selection circuitry accepts filtered, regulated power supplies and reduces installation complexity for retrofit or new construction projects. Universal hardware is included for flush or recessed door-edge installation; a "BRD" floor-mount model is available when top-rail mounting is not possible.


SPECIFICATIONS:
Holding Force: 2700 - 3000 Lbs. (1225 - 1361 kg)
Input Voltage: 12/24 Volts DC — Automatic Selection (requires filtered, regulated power supply)
Current Draw: 900 mA @ 12V DC, 450 mA @ 24V DC
Features: Patented floating magnet/armature action, adjustable relock 1–30 seconds, universal mounting hardware, concealed mortise design, low operating temperature
Warranty: Limited Lifetime Warranty

NOTE: A complete list of accessories — mounting brackets, compatible power supplies, transformers, and keypads — is available.

Product Warning:

This item requires a filtered, regulated 12–24 VDC power supply (or filtered unregulated via transformer with rectifier for 12–16 VDC). Voltage selection is automatic.
