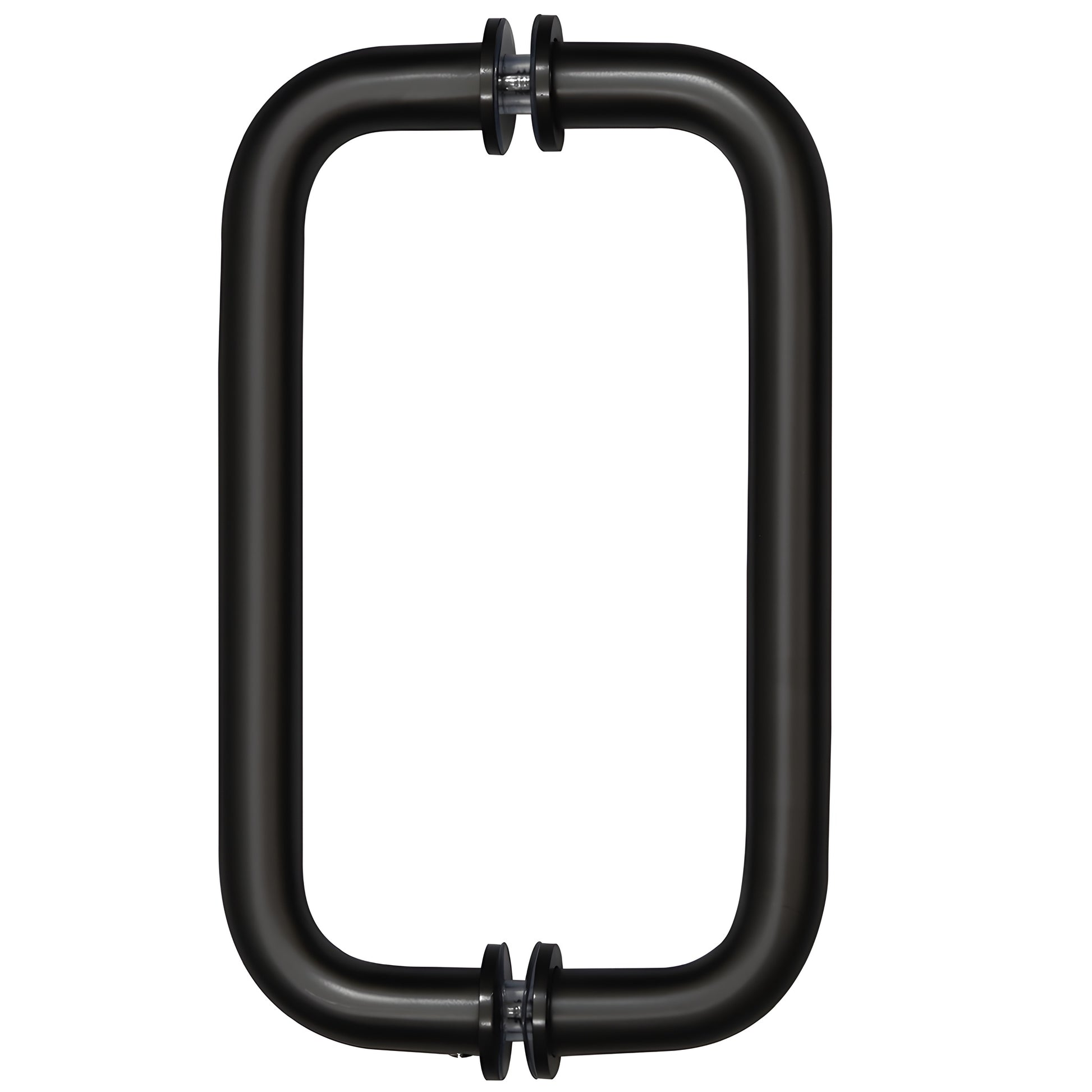

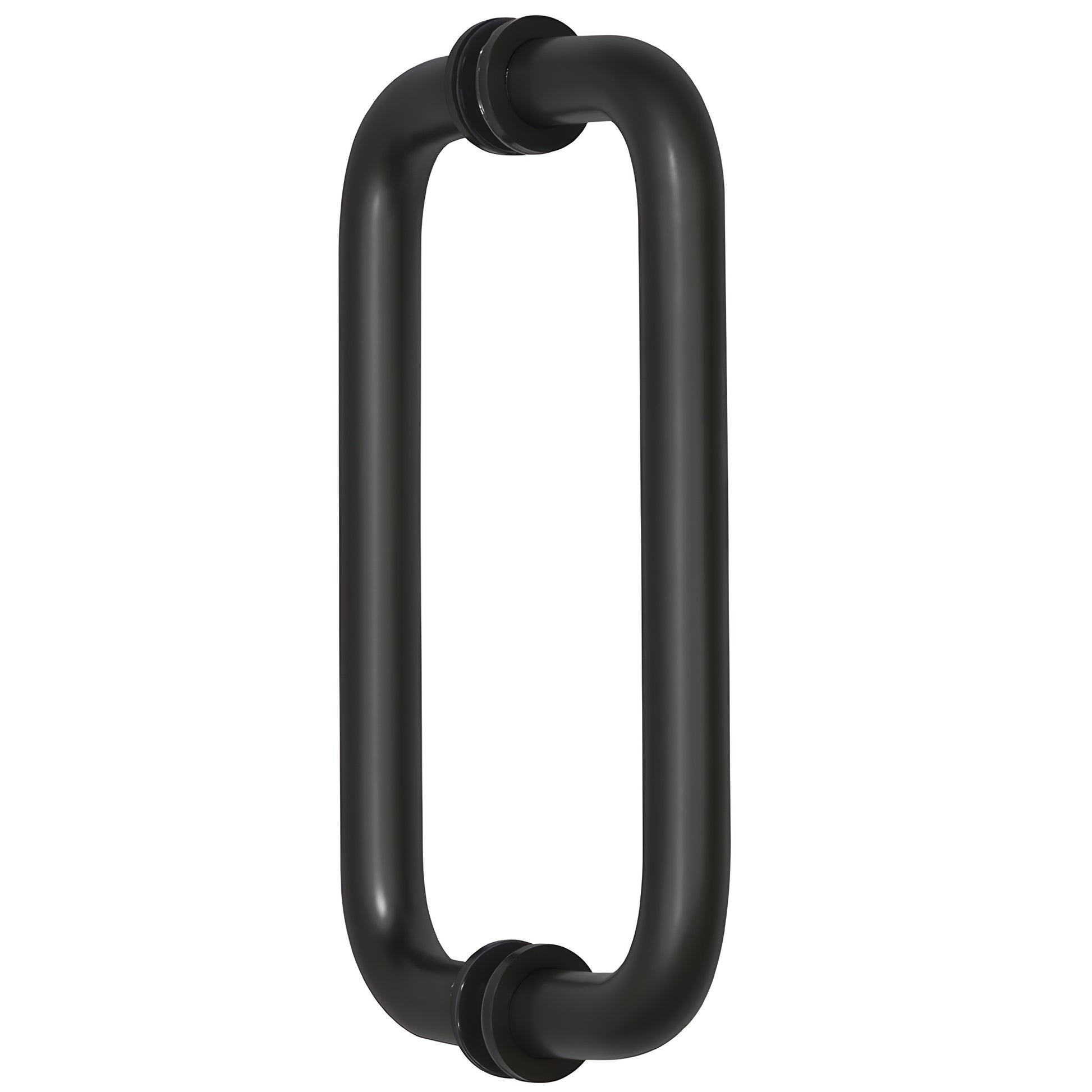

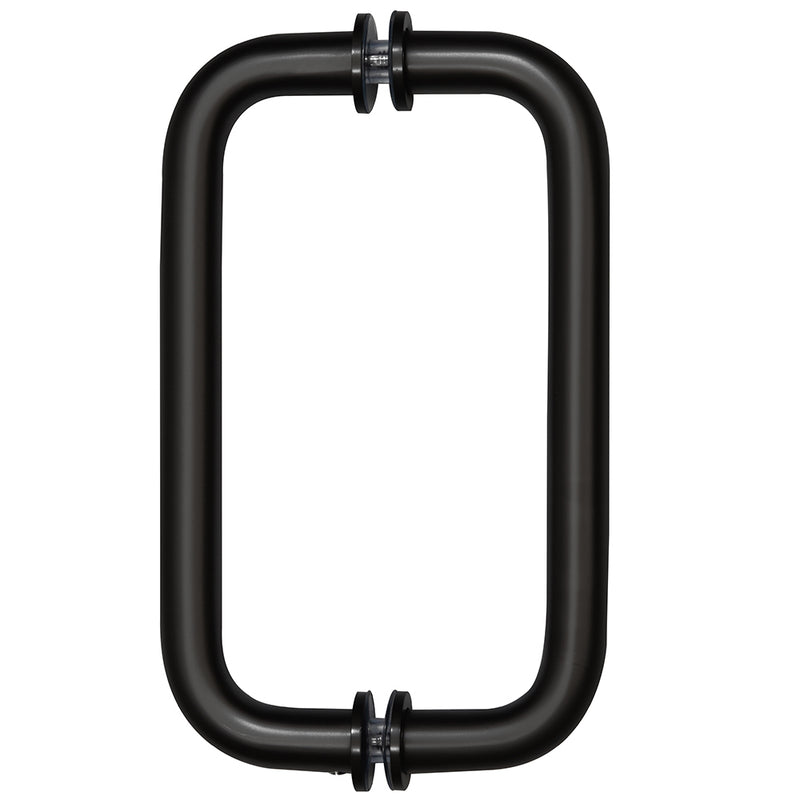

CRL Matte Black 8" BM Series Tubular Back-to-Back Pull Handle

Construction

Tubular

Diameter

3/4 in. (19 mm)

Finish/Color

Matte Black

Glazing Thickness

1/4 in. To 1/2 in. (6 mm To 12 mm)

Material

Brass

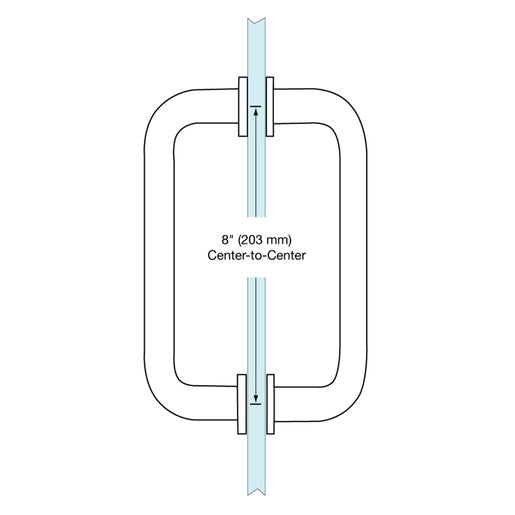

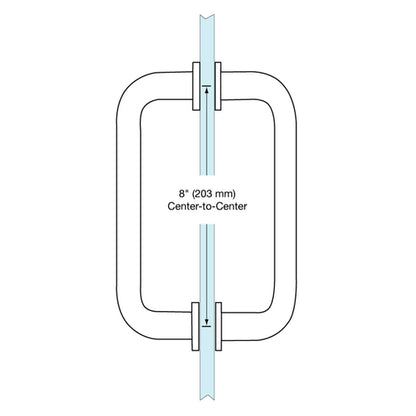

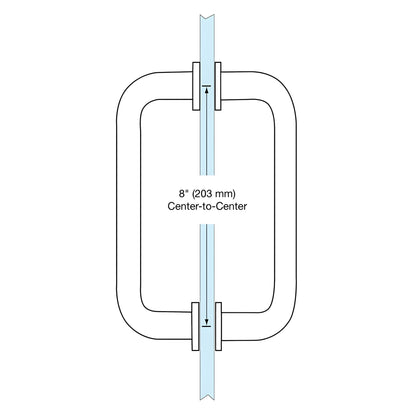

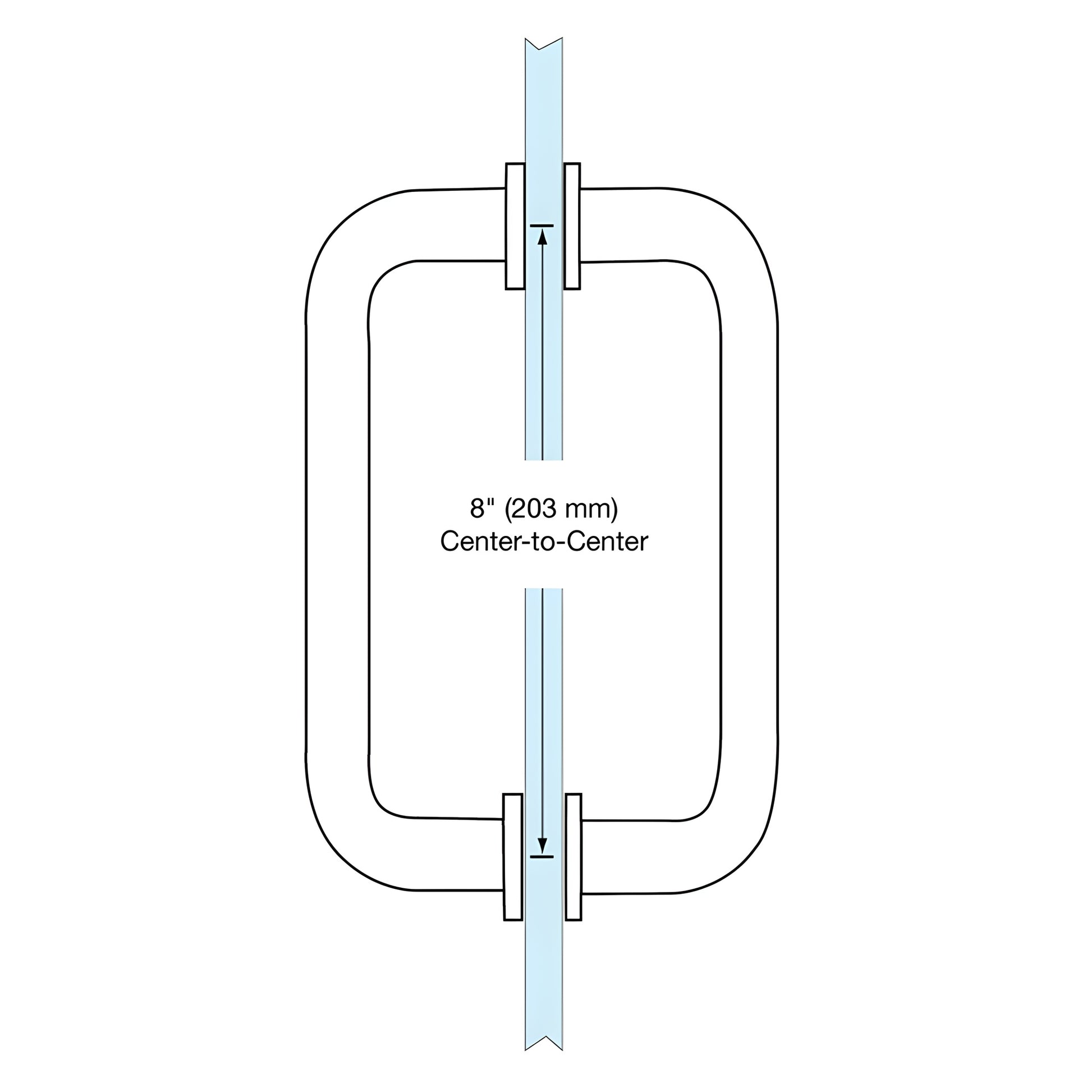

Mounting Center To Center

8 in. (203 mm)

Mounting Type

Glass Mount - Back To Back

Projection From Surface

2-1/2 in. (64 mm)

Series

BM

Style Washer Diameter

1-1/4 in. (32 mm)

Style Washers

Yes

Thread Size

14-20

Our Most Popular Handle

Features:

• Decorative metal washers cover glass hole imperfections
• Available in multiple finishes: 6" (152 mm) and 8" (203 mm)
• Custom finishes available upon request
• Heavy-duty 3/4" (19 mm) diameter tubular brass construction (1.5 mil thick)
• Designed for use with monolithic tempered glass

Product Highlights:

The CRL BM Series Back-to-Back Tubular Pull Handles are crafted from 1.5 mil thick heavy brass tubing for strength and style. Each handle set includes:

• One pull handle for each side of the glass (back-to-back)
• Decorative metal washers
• Plastic washers to prevent glass-to-metal contact

These handles are not only functional but elevate the look of any shower enclosure or wardrobe door. Whether you need back-to-back or single-sided handles, our options offer easy installation and long-lasting performance. Custom designs and finishes are available for special projects.

Technical Specifications:

SpecificationDetailsMaterial3/4" (19 mm) Brass TubingWall Thickness1.5 milWasher Diameter1-1/4" (32 mm)Glass Thickness Range1/4" (6 mm) to 1/2" (12 mm)Required Hole Diameter1/2" (12 mm)Center-to-Center Spacing6" (152 mm), 8" (203 mm)Thread Size1/4"-20

Note: Shipping weights are approximate. For precise shipping costs, contact CRL Customer Service prior to order submission. Product images are representative and may vary slightly in color due to screen settings.

Brochures & Literature

Frameless Shower Door Hardware Catalog

Quote Request Forms

Frameless Shower Door Quote Request Form

Specifications

Door Pull Specifications

CAD Drawings - pdf

BM6X6 BM8X8 Detailed CAD Drawings.pdf

CAD Drawings - dwg

BM6X6 BM8X8 Detailed CAD Drawings.dwg

Cleaning & Maintenance

Frameless Shower Door Glass and Hardware Cleaning Instructions
