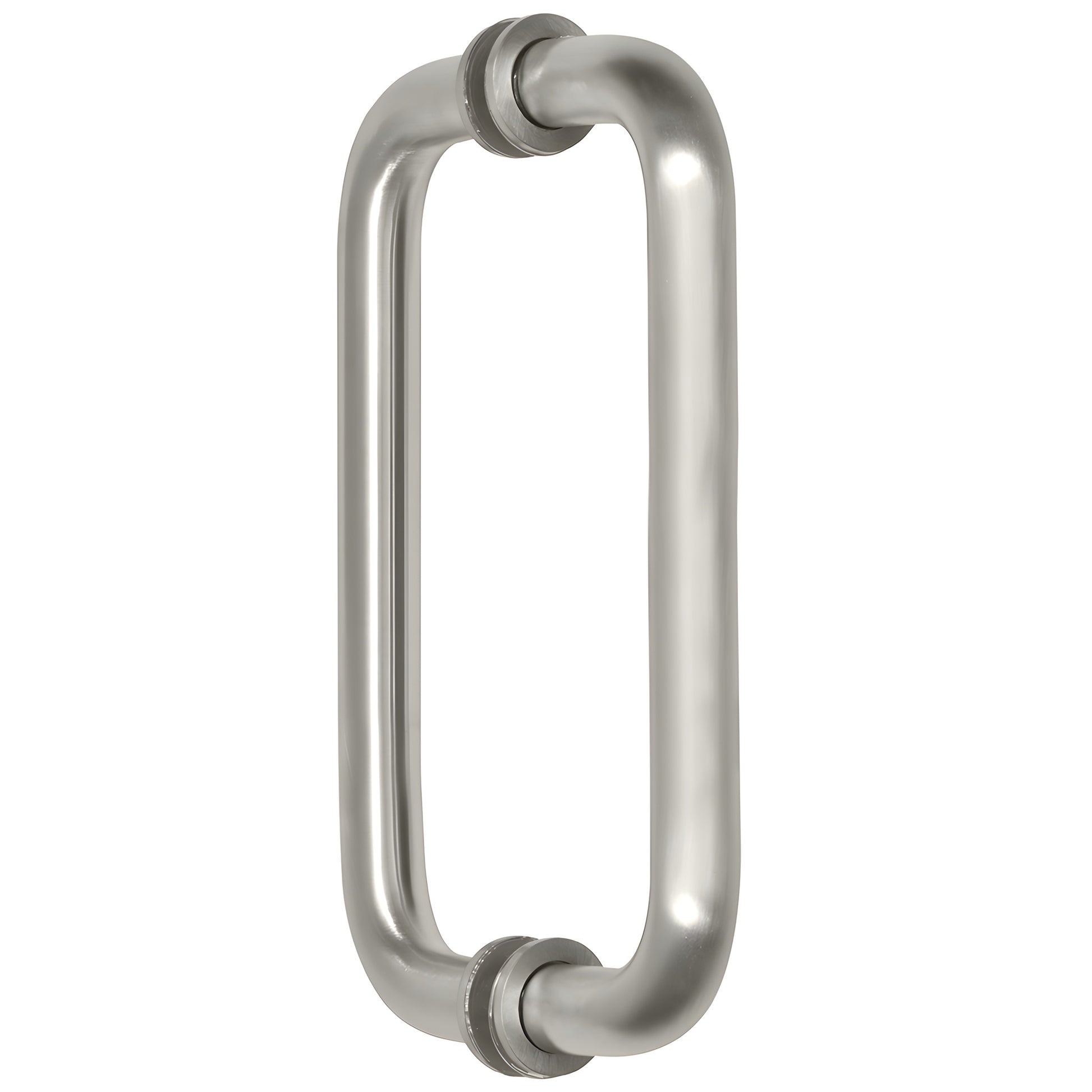

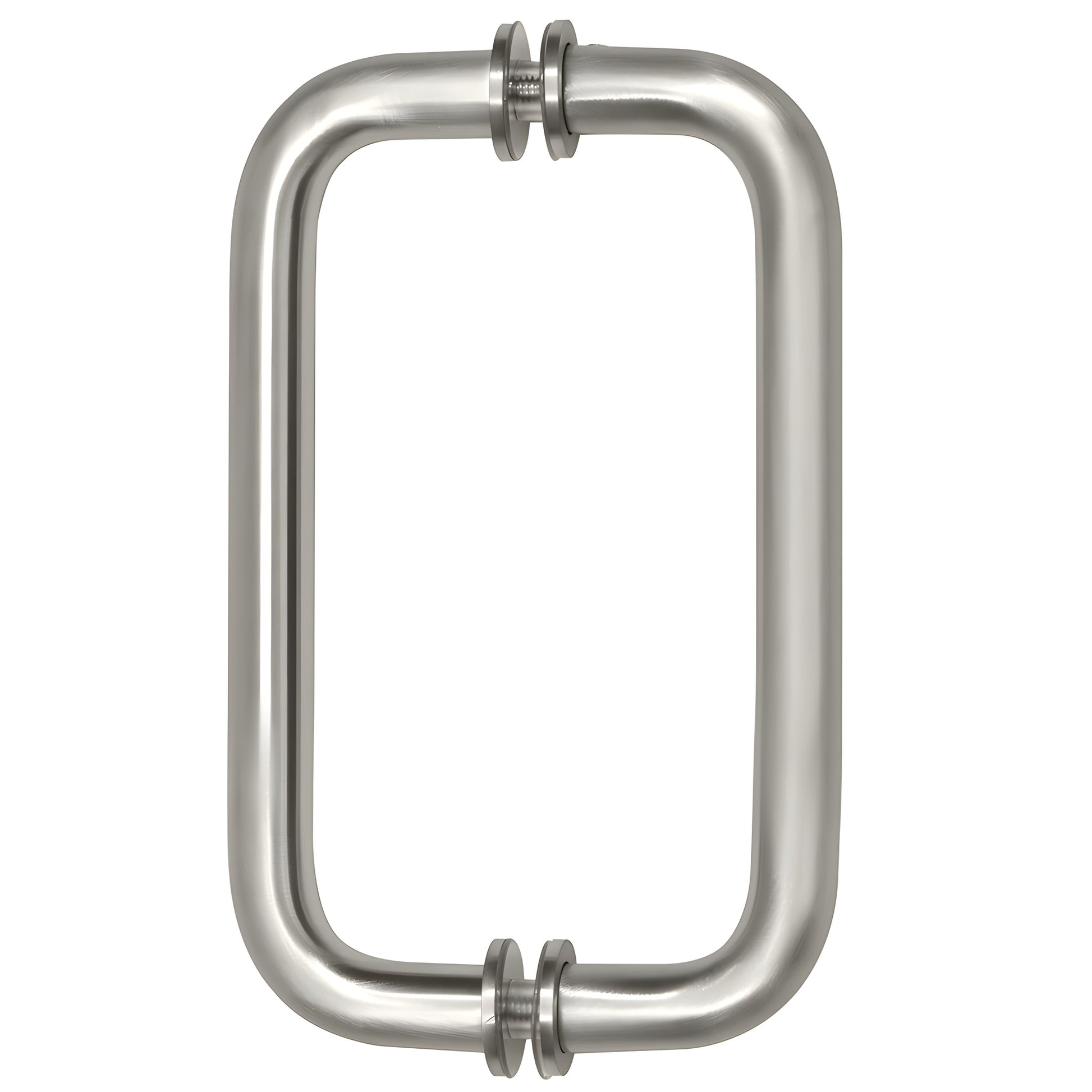

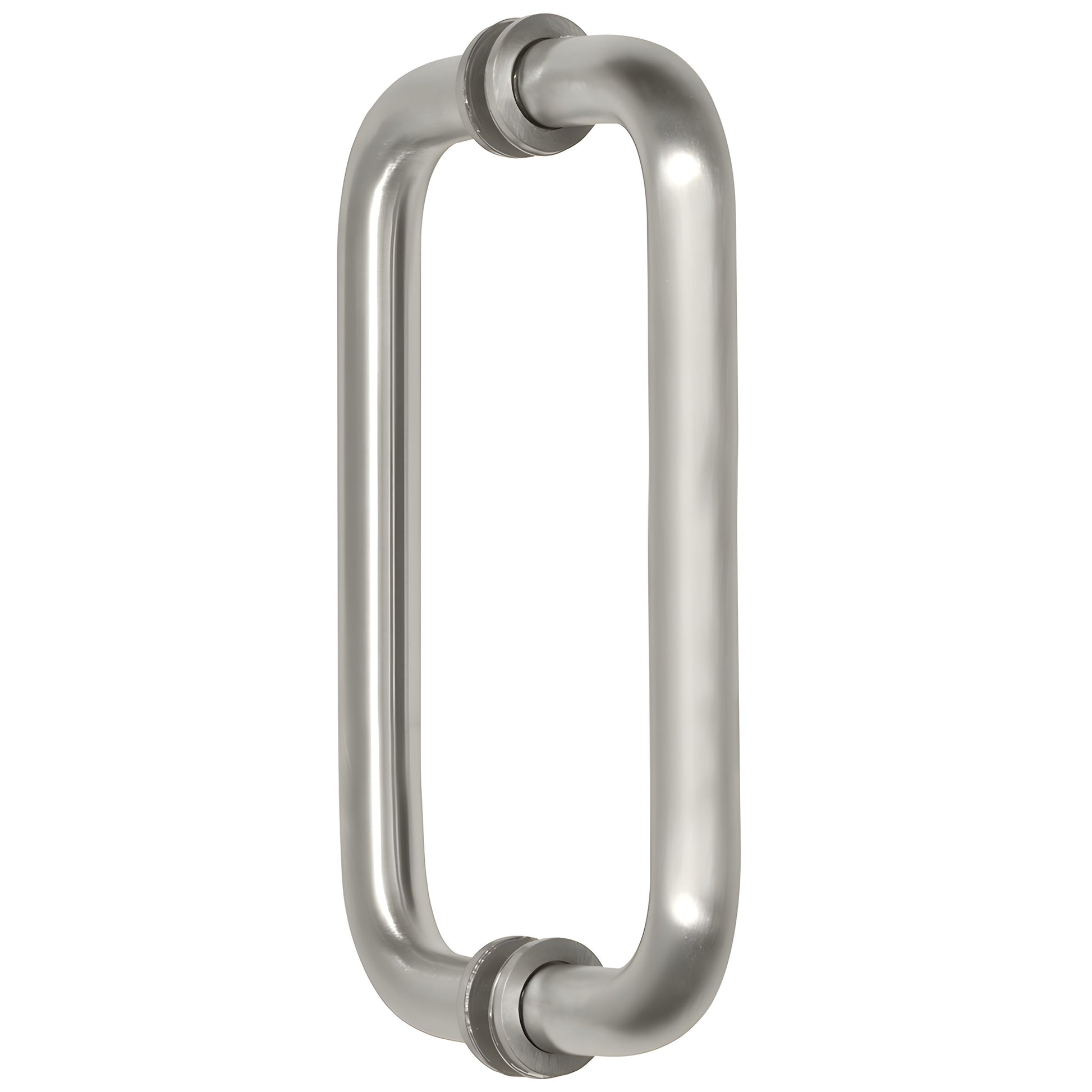

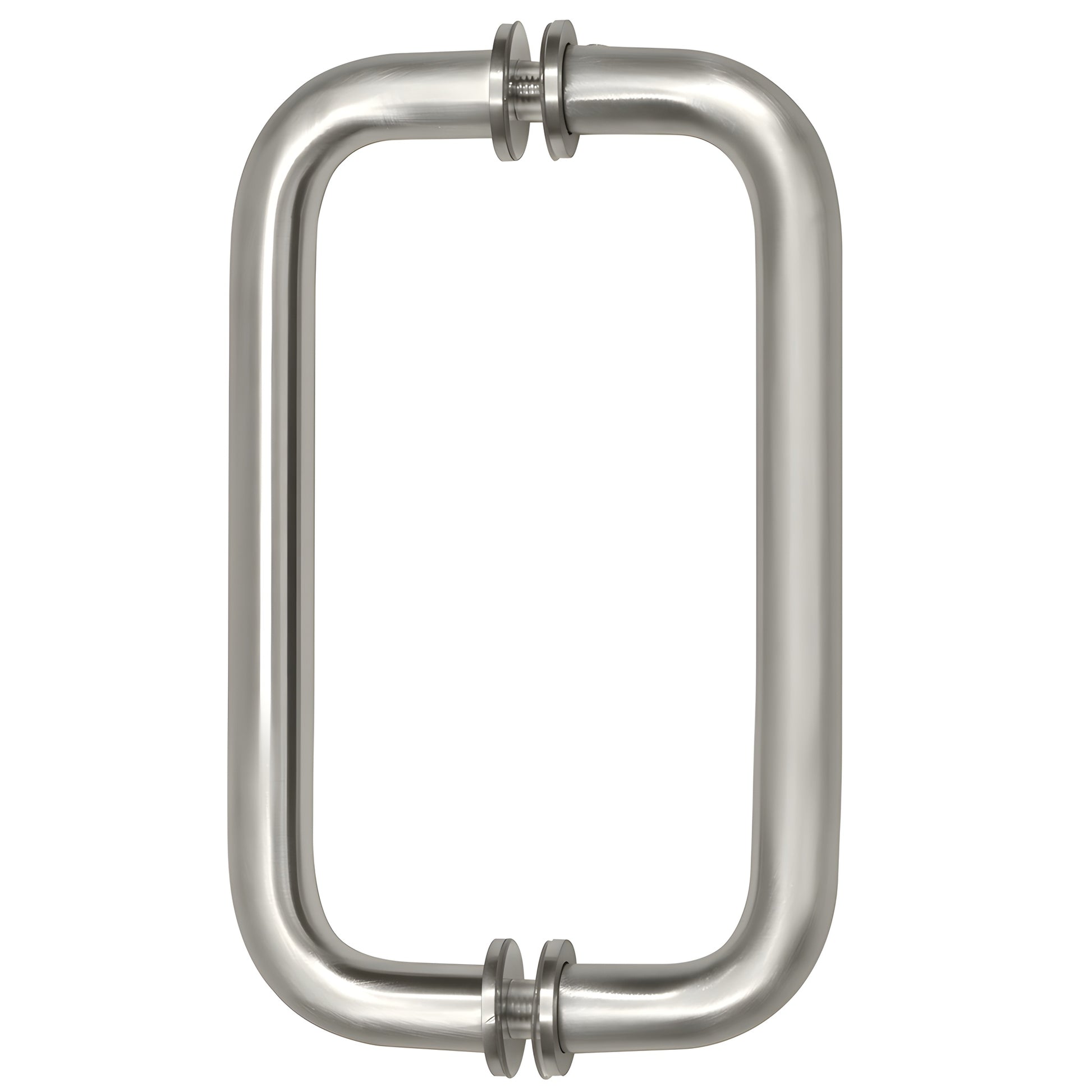

CRL BM Series 8 in Satin Nickel Tubular Back-to-Back Door Pull
CRL BM Series 8 in Satin Nickel Tubular Back-to-Back Door Pull
Regular price
$70.53 CAD
Regular price
Sale price
$70.53 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BM8X8SN
Shipping Weight: 1.02 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.02 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Construction
Tubular
Diameter
3/4 in. (19 mm)
Finish/Color
Satin Nickel
Glazing Thickness
1/4 in. To 1/2 in. (6 mm To 12 mm)
Material
Brass
Mounting Center To Center
8 in. (203 mm)
Mounting Type
Glass Mount - Back To Back
Projection From Surface
2-1/2 in. (64 mm)
Series
BM
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Thread Size
14-20
Overview
- Our most popular back-to-back tubular pull handle for glass doors
- Decorative metal washers cover hole defects in glass and protect the aesthetic finish
- Available in numerous finishes and two sizes: 6" (152 mm) and 8" (203 mm)
- Custom finishes available for specialty shower or wardrobe door projects
- Heavy 3/4" (19 mm) diameter brass tubular construction (1.5 mil thick) for durable, long-lasting performance
- Includes plastic washers to protect against glass-to-metal contact — ideal for monolithic tempered glass
The CRL BM Series Back-to-Back Tubular Pull Handles with Metal Washers (SKU: BM8X8SN) are built from heavy brass tubing (1.5 mil thick) and include both decorative metal backup washers and protective plastic washers to prevent glass-to-metal wear. Each set provides one pull on each side of the door and is offered in 6" and 8" center-to-center sizes — perfect for shower door pulls, wardrobe pulls, and other glass door applications.
With over a dozen distinct pull handle models and numerous finish options, the BM Series is designed to complement a wide range of interior décor. These easy-to-install, durable handles are suited for commercial and residential glass doors; custom designs and finishes are available when a unique look is required.
SPECIFICATIONS:
Material: 3/4" (19 mm) diameter brass tubing (1.5 mil thick); 1-1/4" (32 mm) diameter washers
Glass Thickness Range: 1/4" (6 mm) to 1/2" (12 mm)
Hole Diameter Required: 1/2" (12 mm)

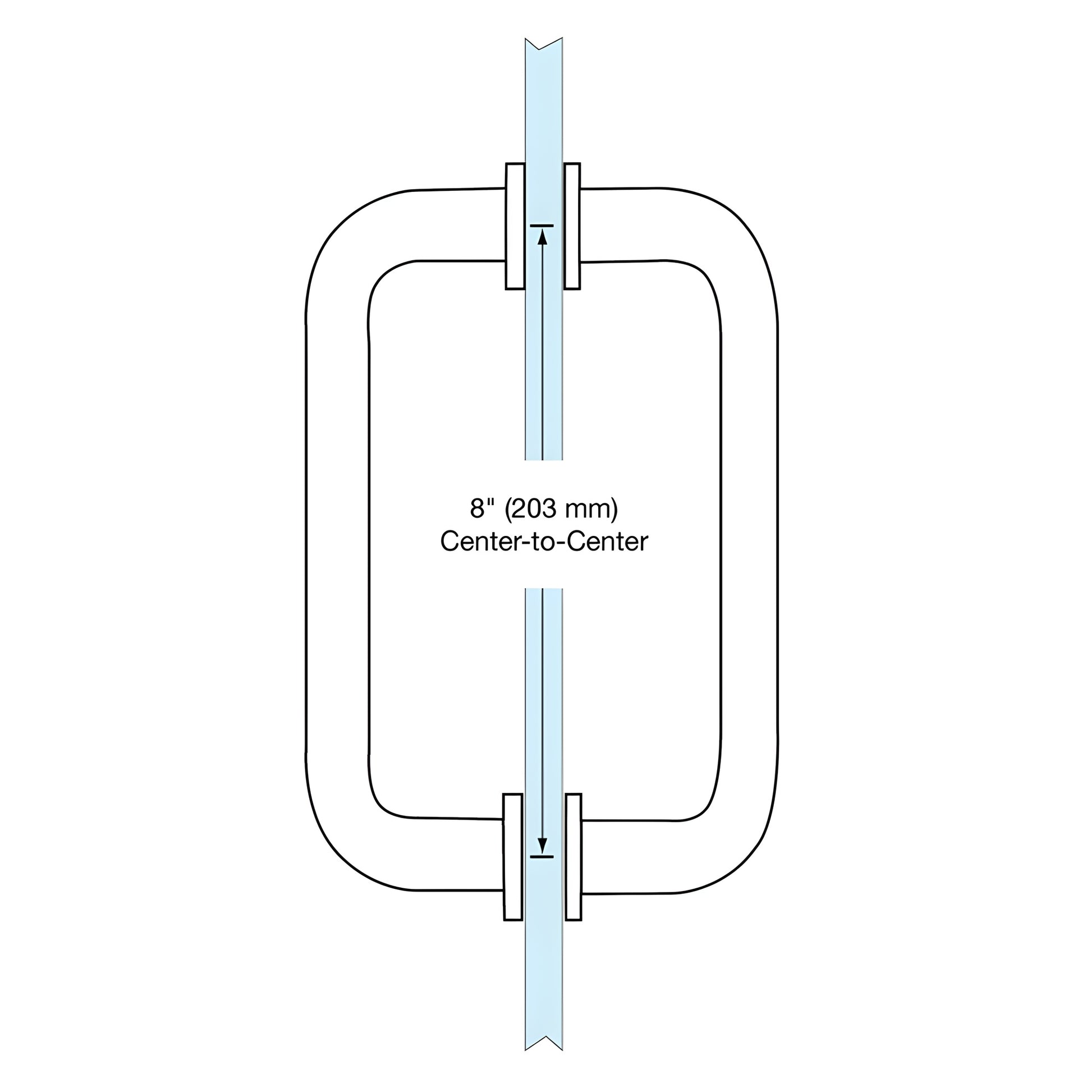

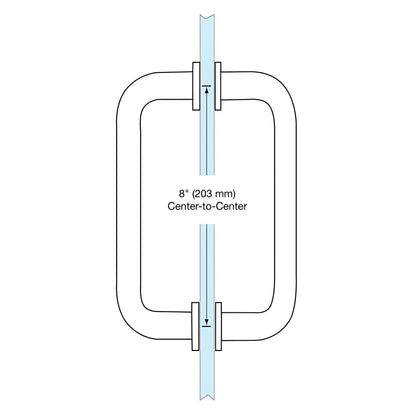

Center-to-Center Hole Spacing: 6" (152 mm); 8" (203 mm)
Thread Size: 1/4"-20
Order the BM Series back-to-back tubular pull handle (SKU: BM8X8SN) today to upgrade your glass door hardware—contact CRL for finish availability and custom options.
