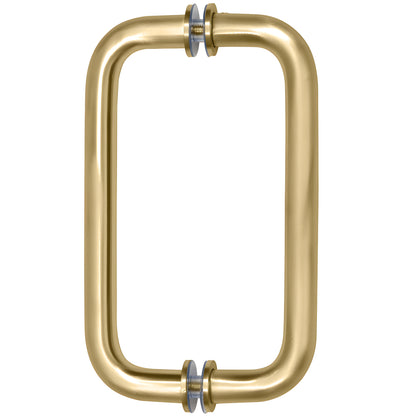

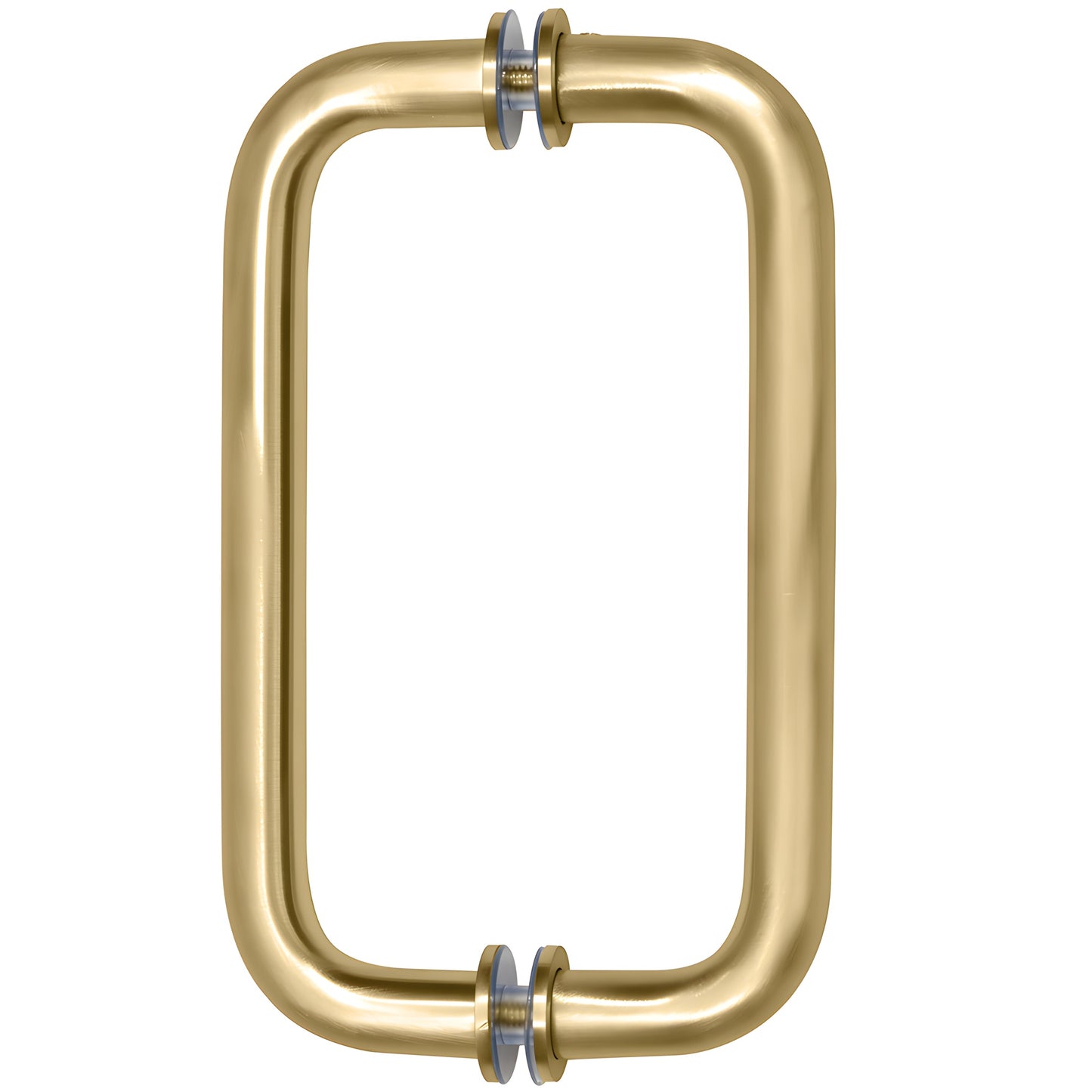

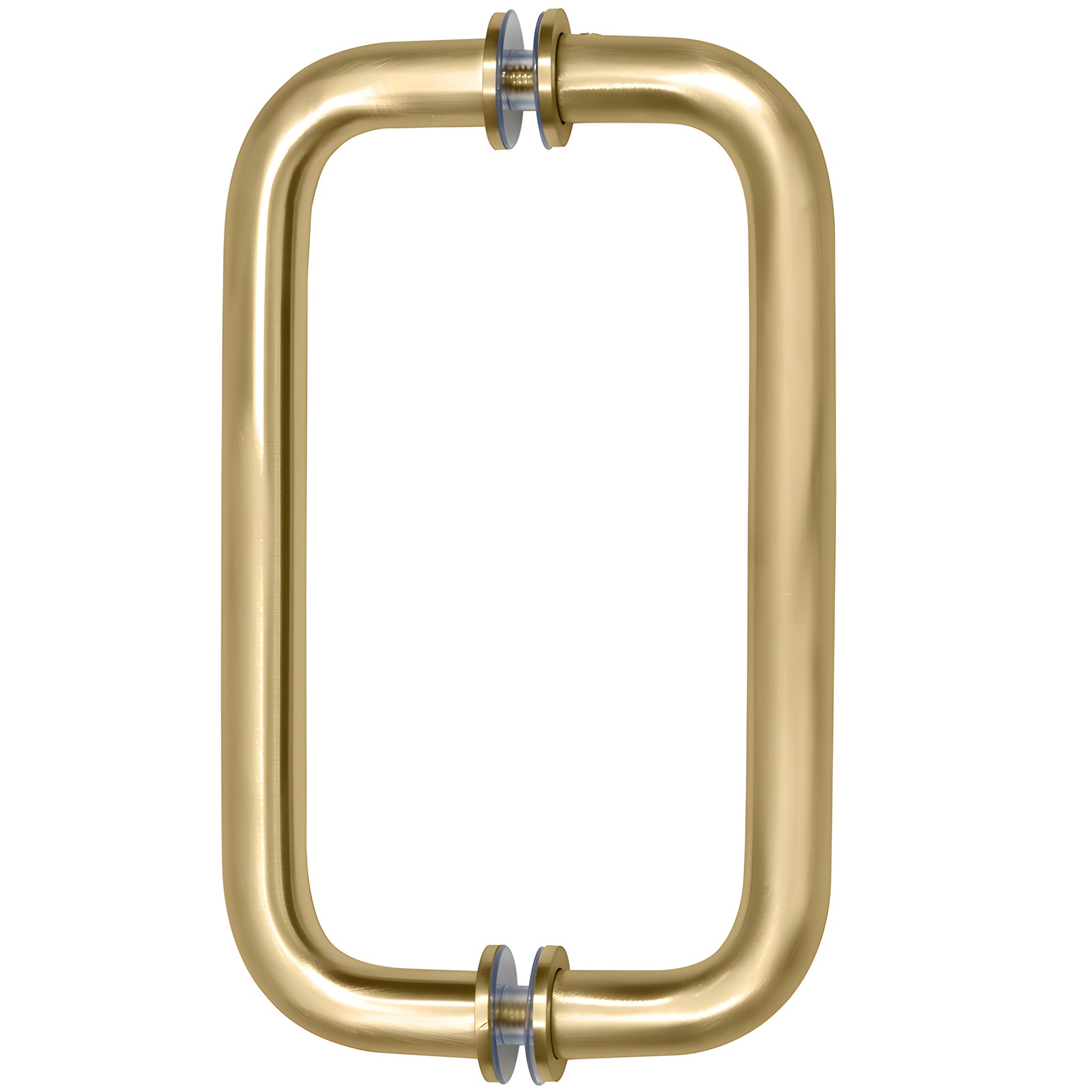

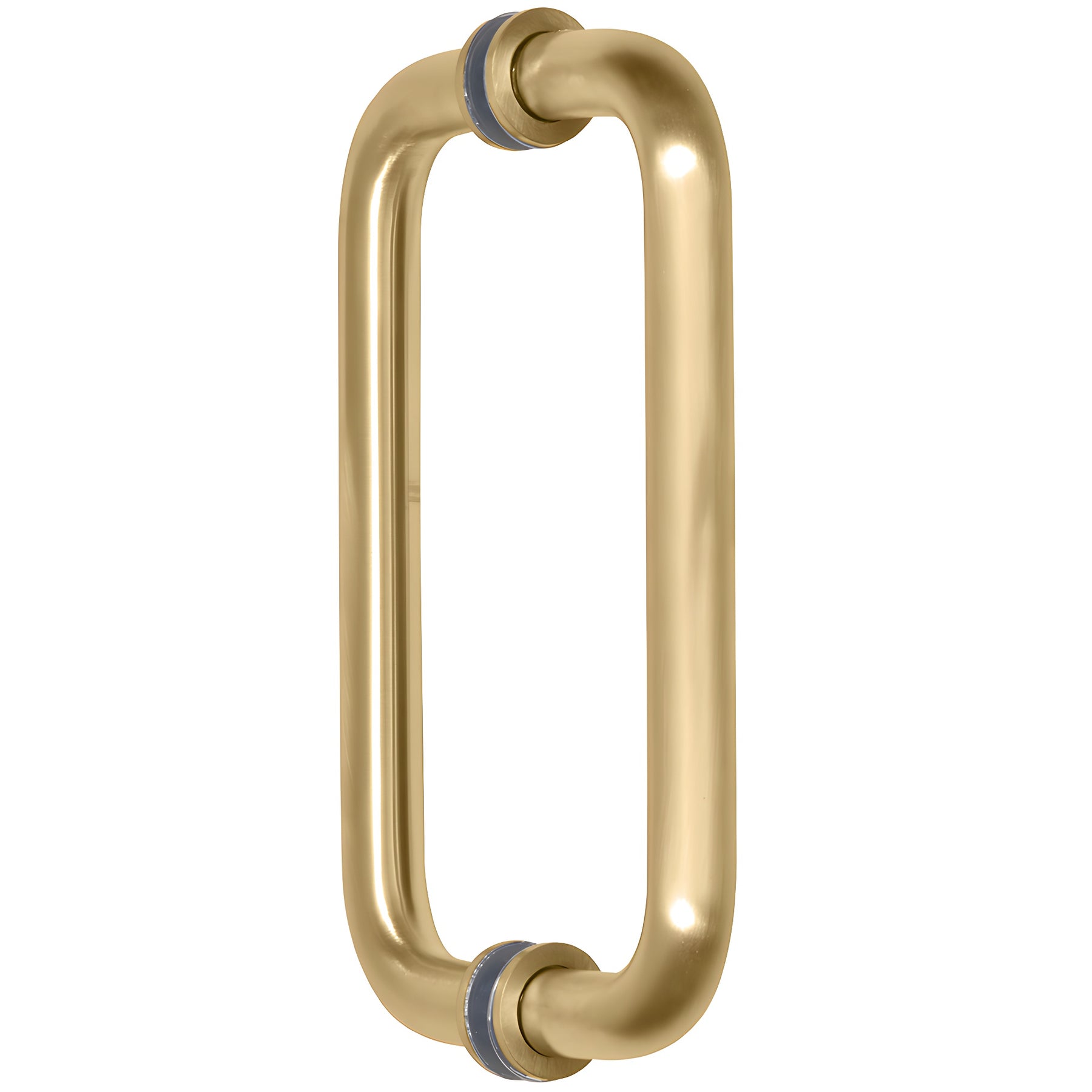

CRL 8" Satin Brass BM Series Tubular Back-to-Back Door Pull Handle
CRL 8" Satin Brass BM Series Tubular Back-to-Back Door Pull Handle
Regular price
$59.34 CAD
Regular price
Sale price
$59.34 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BM8X8SB
Shipping Weight: 1.01 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.01 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Construction
Tubular
Diameter
3/4 in. (19 mm)
Finish/Color
Satin Brass
Glazing Thickness
1/4 in. To 1/2 in. (6 mm To 12 mm)
Material
Brass
Mounting Center To Center
8 in. (203 mm)
Mounting Type
Glass Mount - Back To Back
Projection From Surface
2-1/2 in. (64 mm)
Series
BM
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Thread Size
14-20
Overview
- SKU: BM8X8SB
- Most popular back-to-back tubular pull handle
- Decorative metal washers conceal glass hole defects and protect finishes
- Available in 6" and 8" (152 and 203 mm) center-to-center sizes
- Numerous standard finishes; custom finishes available
- Heavy 3/4" (19 mm) diameter brass tubular construction (1.5 mil thick)
- Designed for monolithic tempered glass shower and wardrobe doors
The CRL BM Series Back-to-Back Tubular Pull Handles with Metal Washers combine heavy brass tubing and decorative metal washers to provide a durable, attractive pull for glass shower doors, wardrobe doors, and other applications requiring a back-to-back pull handle. Each set includes washers and plastic protective spacers to prevent glass-to-metal contact. Available in 6" and 8" center-to-center sizes for easy retrofit or new installations.
Our pull handle range includes over a dozen models and multiple finish options to match shower door hardware and interior décor. Each handle is engineered for straightforward installation, long service life, and optional custom finishes when a tailored look is required.
SPECIFICATIONS:
Material: 3/4" (19 mm) diameter brass tubing (1.5 mil thick); 1-1/4" (32 mm) diameter washers
Glass Thickness Range: 1/4" (6 mm) to 1/2" (12 mm)
Hole Diameter Required: 1/2" (12 mm)

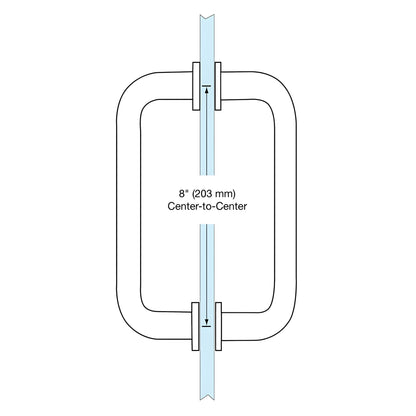

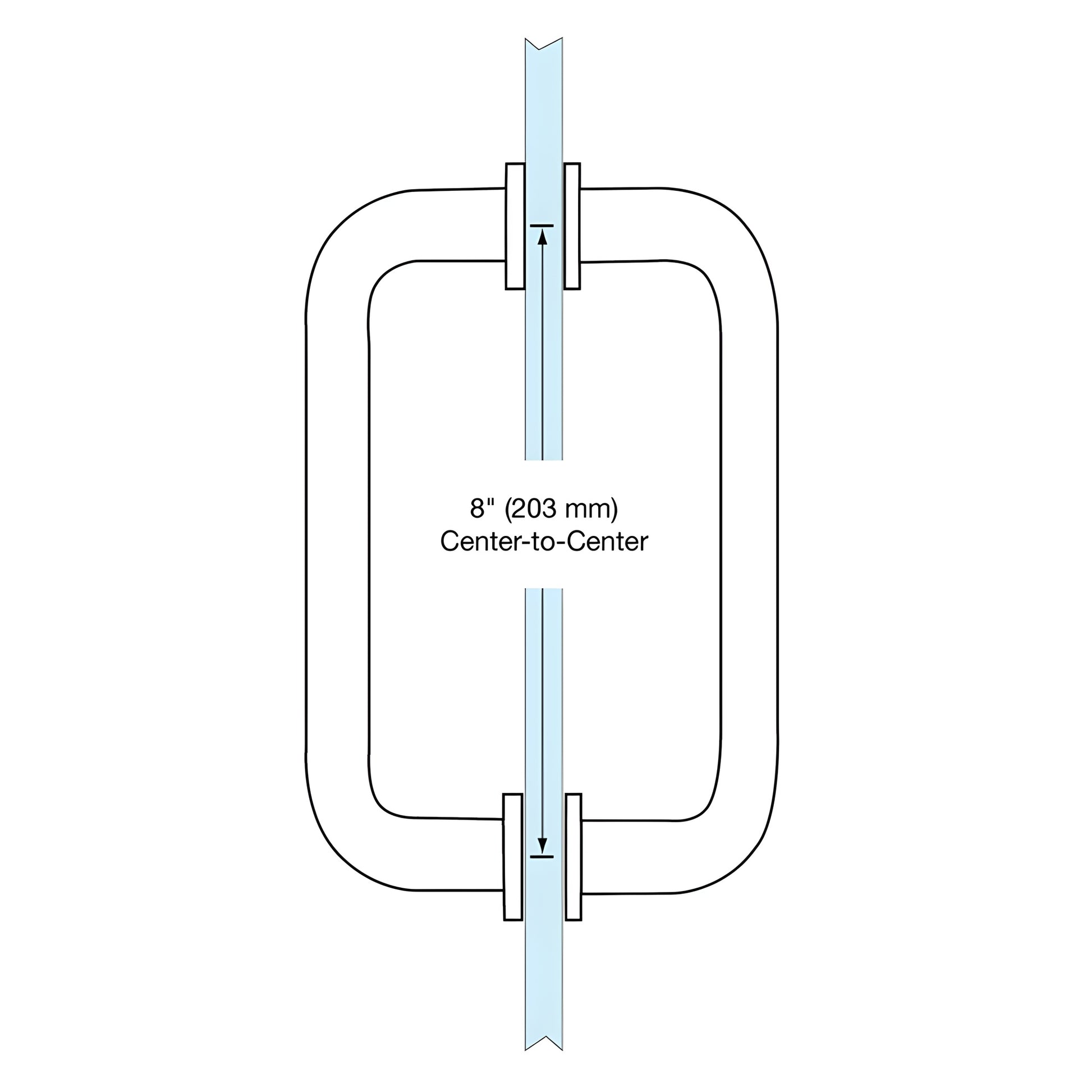

Center-to-Center Hole Spacing: 6" (152 mm); 8" (203 mm)
Thread Size: 1/4"-20
Brass Finish Advisory:
Brass is durable but can oxidize over time and develop a tarnished appearance. See the Brass Finish Disclaimer in Technical References for care and maintenance details.
Order the BM8X8SB back-to-back tubular pull handle today for a durable, stylish shower door or wardrobe door solution.
