- Most popular single-sided towel bar for glass
- Decorative metal washers cover glass holes and protect finish
- Heavy 3/4" (19 mm) diameter brass tubing (1.5 mil thick)
- Available in sizes 12" to 30" (305 to 762 mm); custom finishes available
- Designed for monolithic tempered glass panels and doors
The

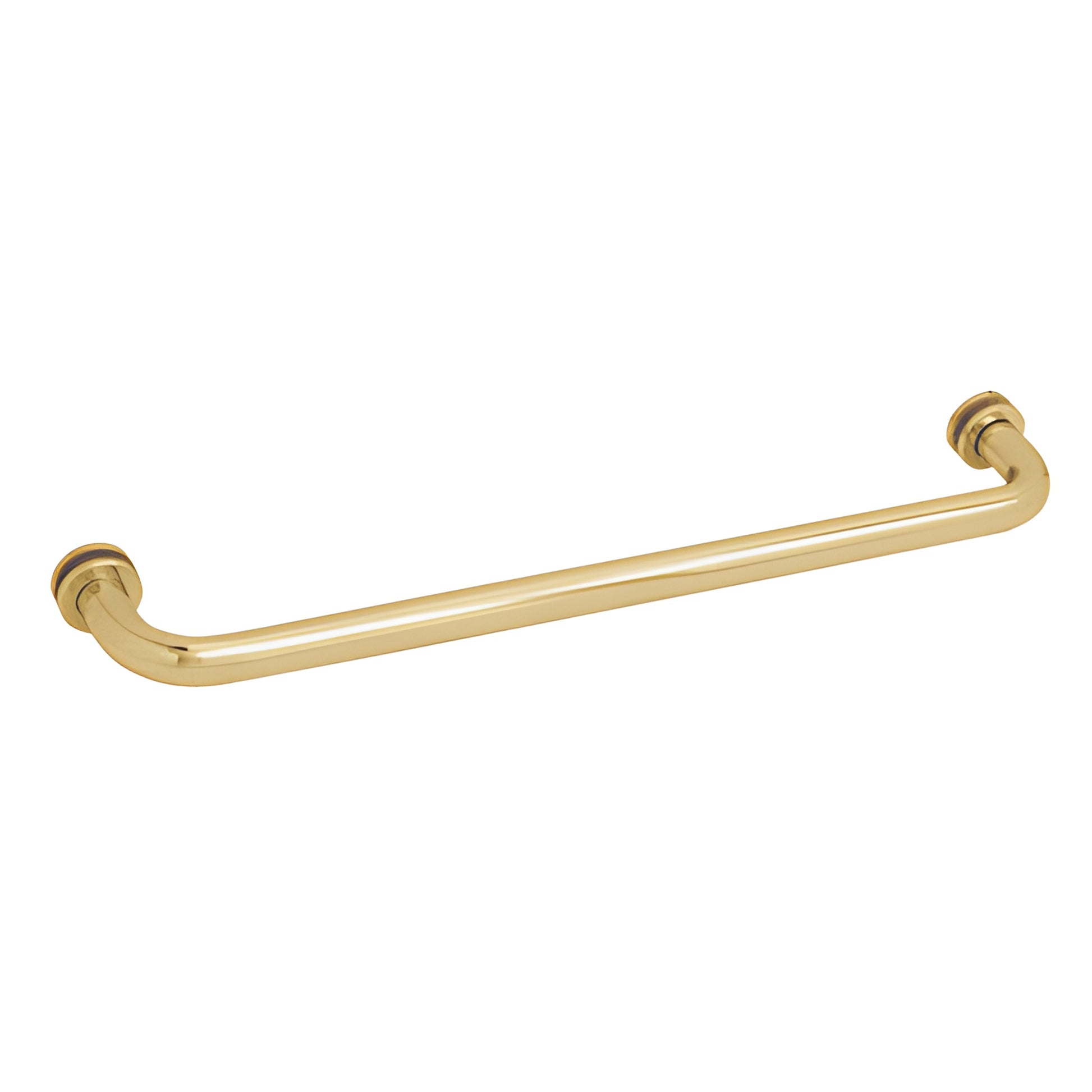

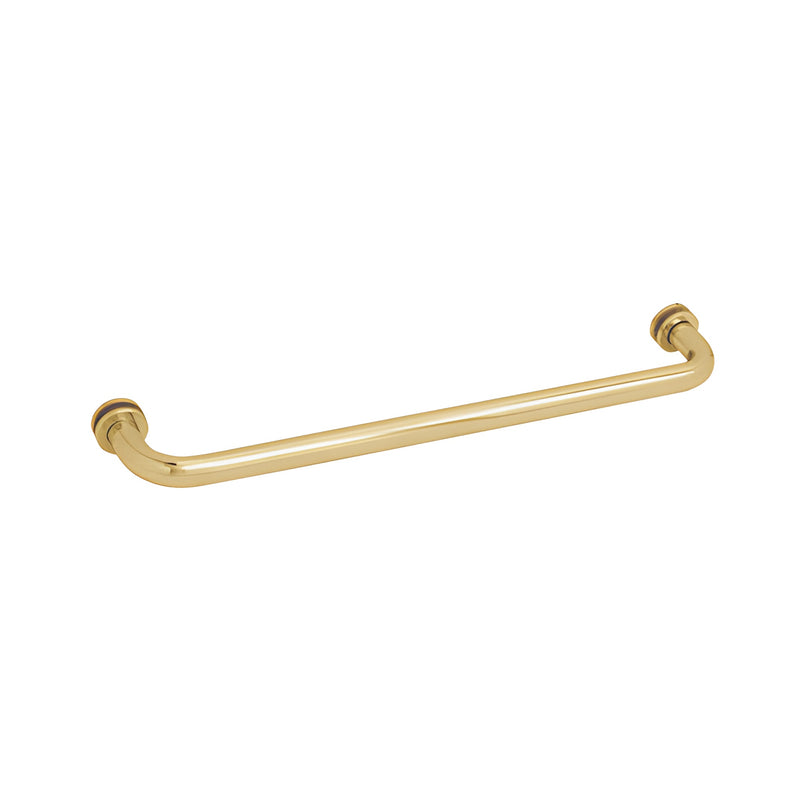

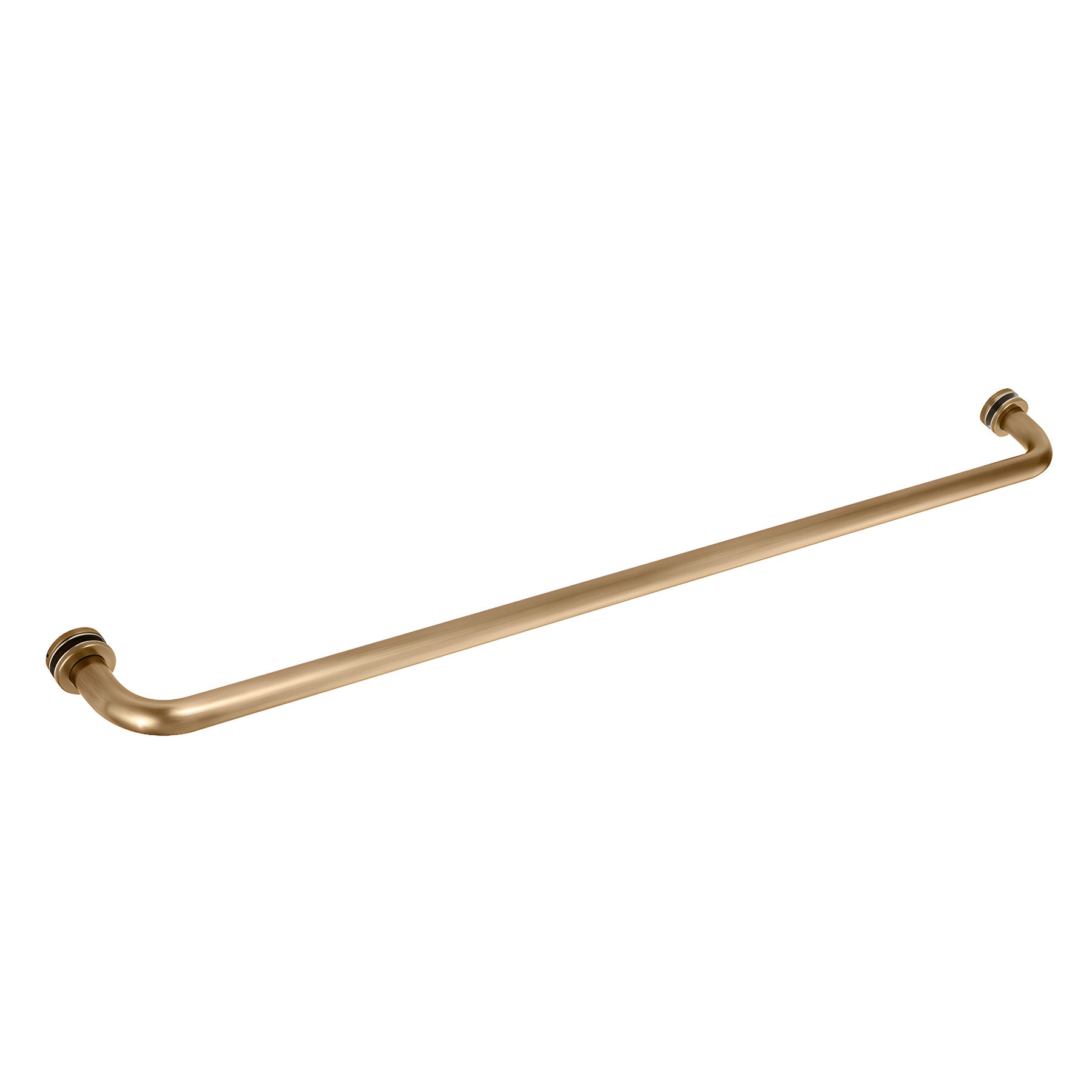

BM Series of Single-Sided Towel Bars With Metal Washers (SKU BM24SB) is engineered for glass mounting on fixed panels or doors and is ideal for sliding bypass doors due to its low-profile 3/16" end caps. Constructed from heavy brass tubing (1.5 mil thick), each bar includes decorative metal back-up washers and protective plastic washers to prevent glass-to-metal contact—making it a durable, stylish towel bar for glass shower doors and glass panels.
SPECIFICATIONS:
Material: 3/4" (19 mm) diameter brass tubing (1.5 mil thick); 1-1/4" (32 mm) diameter metal washers
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Thread Size: 1/4"-20
Center-to-Center Hole Spacing:
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
20" Towel Bar = 20" (508 mm)
22" Towel Bar = 22" (559 mm)
24" Towel Bar = 24" (610 mm)
26" Towel Bar = 26" (660 mm)
27" Towel Bar = 27" (686 mm)
28" Towel Bar = 28" (711 mm)
30" Towel Bar = 30" (762 mm)
AVAILABLE SIZES:
Cat. No. BM12 — 12" Towel Bar
Cat. No. BM18 — 18" Towel Bar
Cat. No. BM20 — 20" Towel Bar
Cat. No. BM22 — 22" Towel Bar
Cat. No. BM24 — 24" Towel Bar
Cat. No. BM26 — 26" Towel Bar
Cat. No. BM27 — 27" Towel Bar
Cat. No. BM28 — 28" Towel Bar
Cat. No. BM30 — 30" Towel Bar
