- Our most popular glass-mounted towel bar for shower doors and fixed panels
- Decorative metal washers cover the hole in glass and serve as a finished accent
- Heavy 3/4" (19 mm) diameter brass tubing (1.5 mil thick) for durable towel support
- Multiple finish choices and sizes from 12" to 30" (305 to 762 mm); custom finishes available
- Low-profile 3/16" end caps—ideal for sliding bypass doors
- Includes metal back-up washers plus plastic protectors to prevent glass-to-metal contact
- Designed for monolithic tempered glass
The

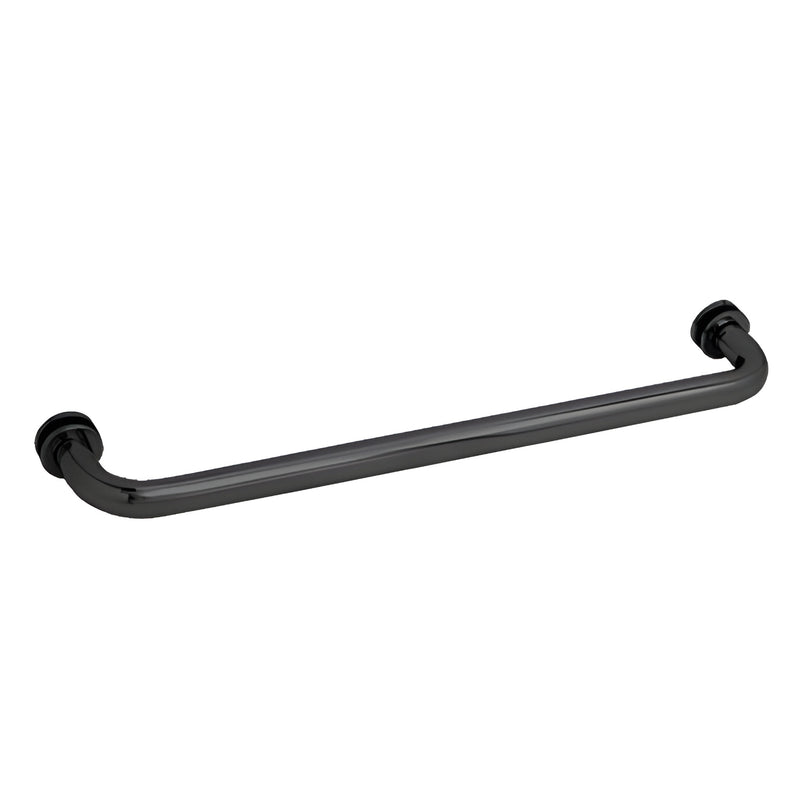

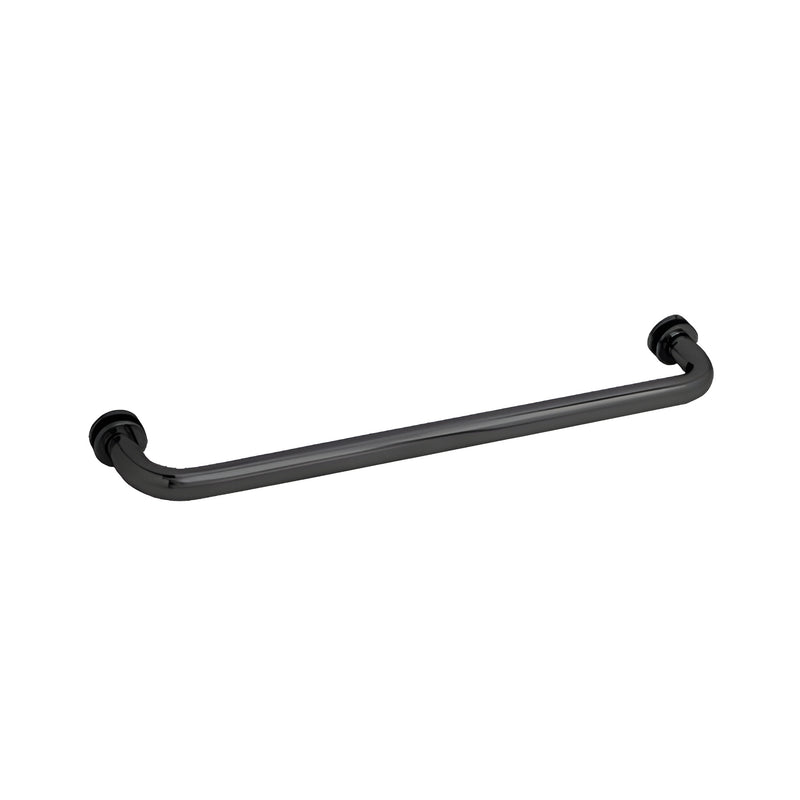

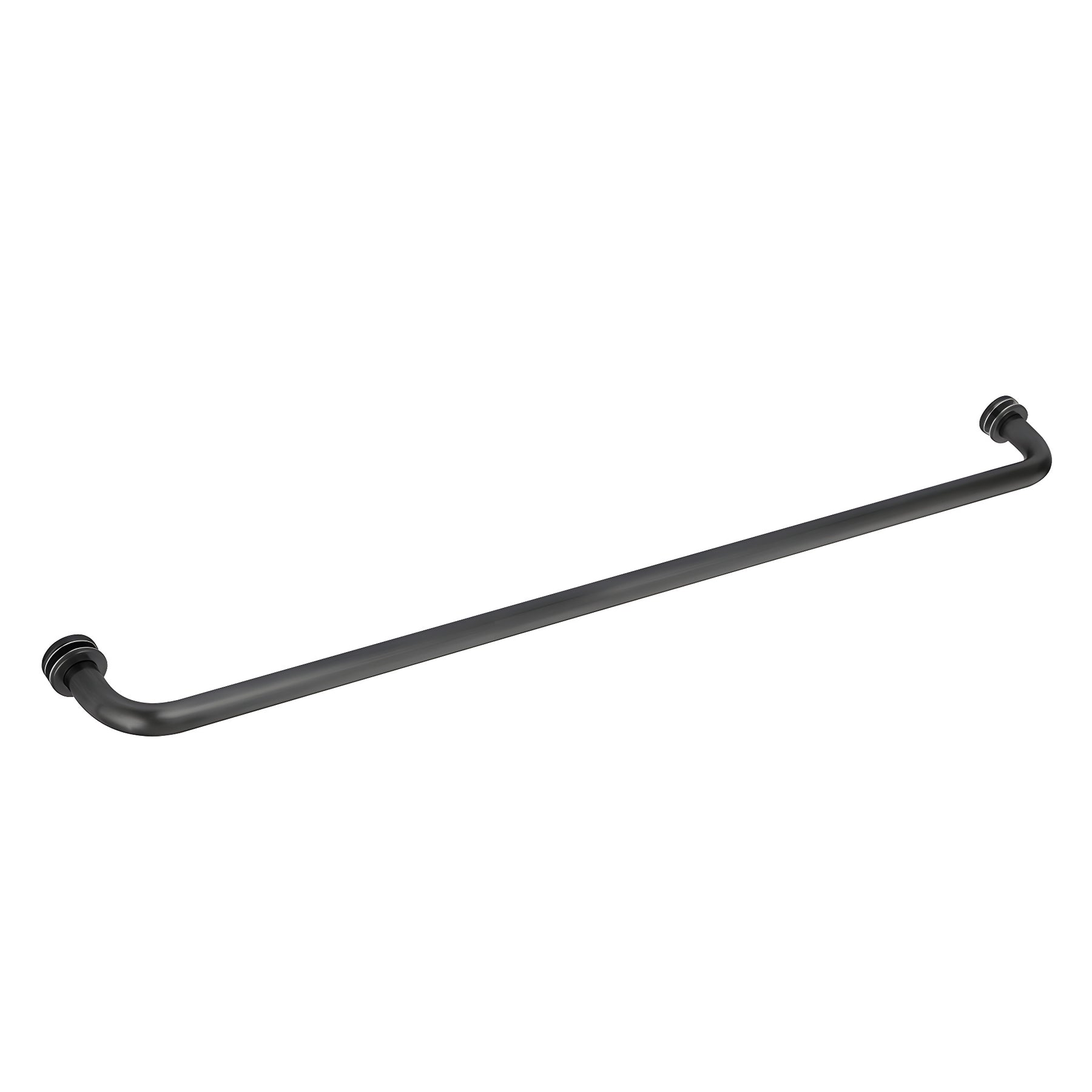

BM Series Single-Sided Towel Bars with Metal Washers are engineered for glass mounting on fixed panels or doors. Decorative metal back-up washers cover the required glass hole while plastic washers protect the glass. Low-profile 3/16" end caps make the bar ideal for sliding bypass doors. Constructed from 1.5 mil thick heavy brass tubing, the BM series combines durable construction with a clean, finished look for shower and bath glass doors. SKU:
BM24MBL.
SPECIFICATIONS: Material: 3/4" (19 mm) Diameter Brass Tubing (1.5 mil thick); 1-1/4" (32 mm) Diameter Metal Washers
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Thread Size: 1/4"-20
Center-to-Center Hole Spacing: 12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
20" Towel Bar = 20" (508 mm)
22" Towel Bar = 22" (559 mm)
24" Towel Bar = 24" (610 mm)
26" Towel Bar = 26" (660 mm)
27" Towel Bar = 27" (686 mm)
28" Towel Bar = 28" (711 mm)
30" Towel Bar = 30" (762 mm)
AVAILABLE SIZES: Cat. No. BM12 12" Towel Bar
Cat. No. BM18 18" Towel Bar
Cat. No. BM20 20" Towel Bar
