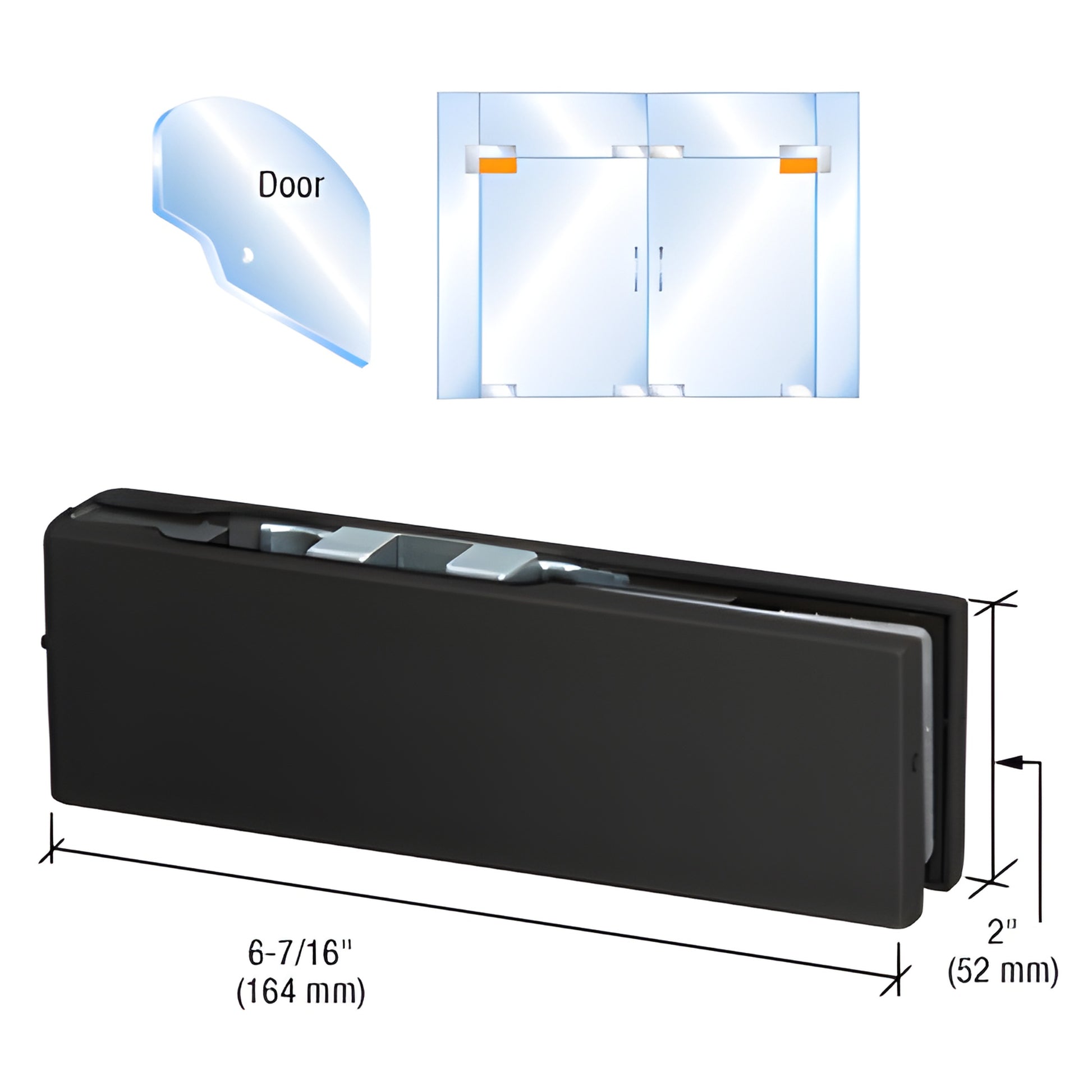

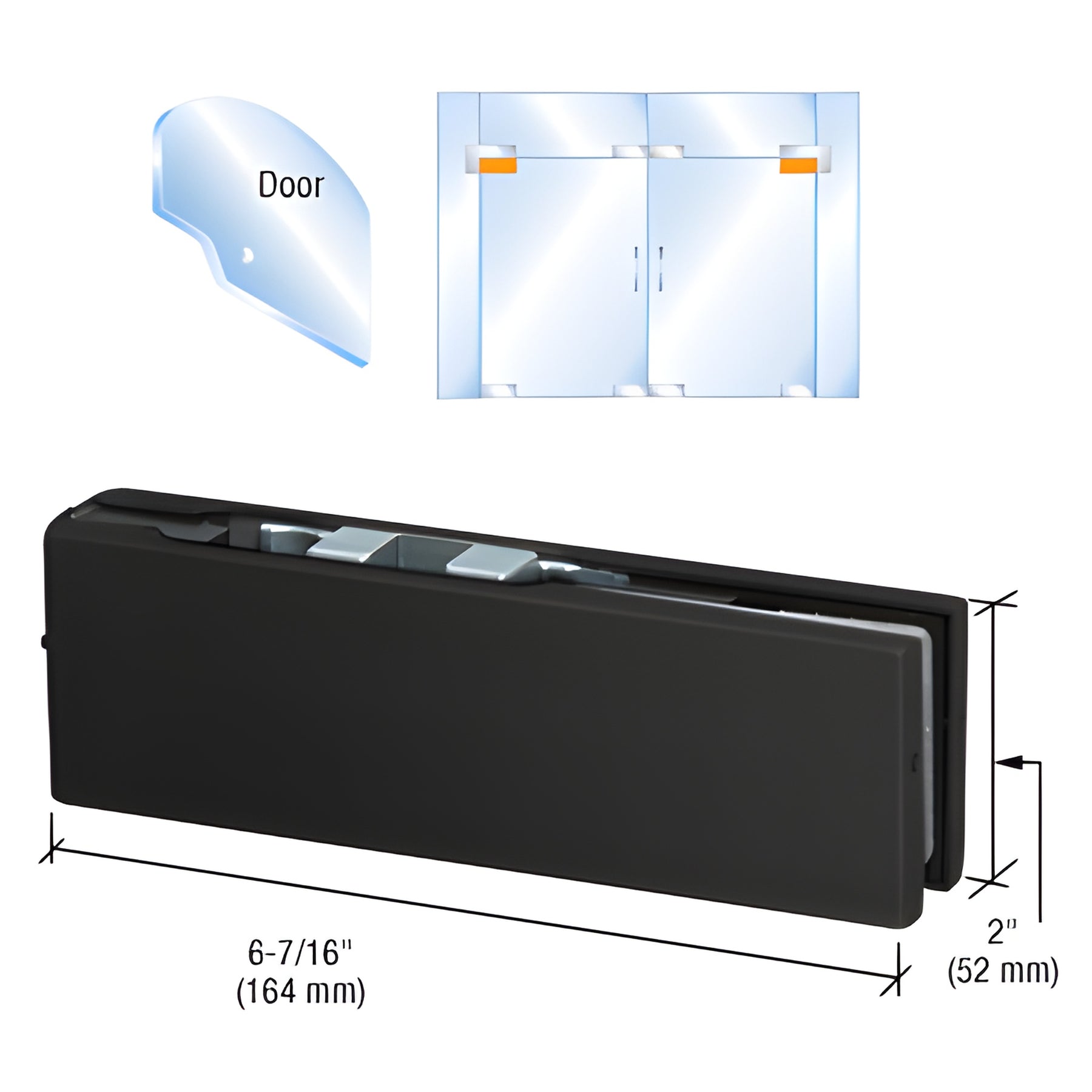

CRL Matte Black Adjustable Top Patch Fitting for Glass Doors

• Adjustable pivot insert allows three degrees of movement for proper door alignment
• 2-3/4" (70 mm) pivot setback
• Fits 3/8" or 1/2" (10 or 12 mm) glass
• Use monolithic tempered glass only

CRL Adjustable Top Door Patch Fitting (SKU: PH20CMBL) — Adjustable top door patch fitting for glass doors with a pivot insert providing 3° of adjustment to align the door to the jamb. Designed for use with the CRL9970 Overhead Concealed Door Closer. Finished covers available in five standard finishes. Gaskets included to accommodate either 3/8" or 1/2" (10 or 12 mm) glass, suitable for frameless glass door installations requiring a top patch fitting.

Guidelines for use with this hardware:

• Maximum height: 102" (2.59 m)
• Maximum weight: 194 lbs (88 kg)
• Maximum width: 42" (1.07 m)

If the door exceeds any of these limits, use full door rails.

Glass fabrication required:
One 3/4" (19 mm) diameter hole and corner notch.

Comes with: Template and instructions.

Do not use with: European 2-9/16" (65 mm) pivot setback overhead concealed door closers. Those require European door patch fitting PH21C.

Product warning:
Not for use with laminated glass.

Need this adjustable top door patch fitting (PH20CMBL) for a frameless glass door project? Order now or contact CRL Customer Service for technical help and exact shipping weight.
