CRL Dark Bronze Adjustable North American Top Door Patch Fitting
Item # PH20CDU
$116.42
CAD
Finish (7)
-
Satin Anodized -
Polished Brass -
Brushed Stainless Steel -
Black Bronze Anodized -
Matte Black -
Polished Stainless Steel -
Satin Brass
Overview
| SKU | PH20CDU |
|---|---|
| Sold As | 1 Each |
| Finish/Color | Black Bronze Anodized |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Pivot Setback | 2-3/4 |
| Series | North American |
| Type | Top |
| With Insert | Yes |
Description
- Adjustable Pivot Insert Allows Three Degrees Movement for Proper Door Alignment
- 2-3/4" (70 mm) Pivot Setback
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Use Monolithic Tempered Glass

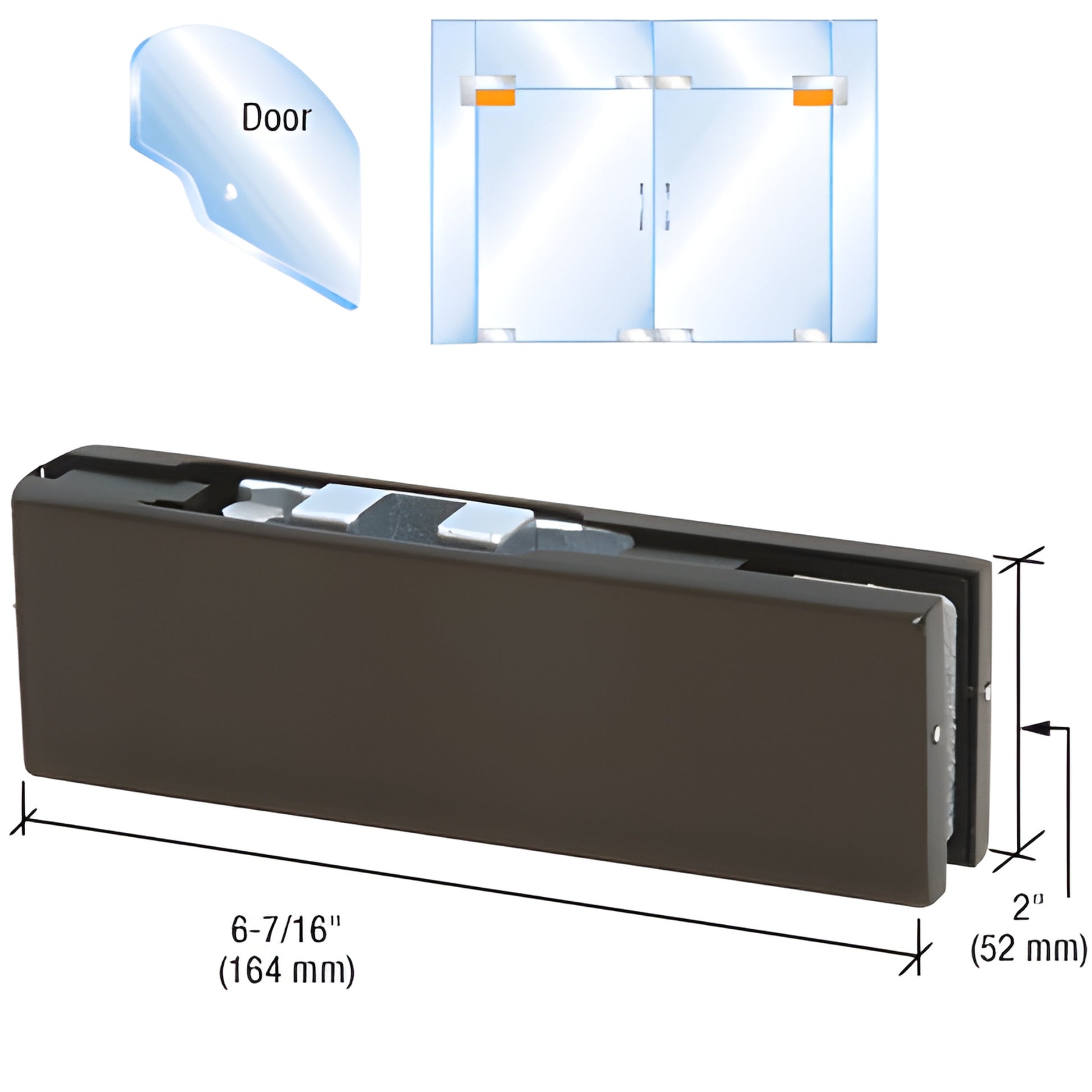

The CRL Adjustable Top Door Patch Fitting includes an adjustable pivot insert that allows for 3 degrees of movement for proper alignment of the door to the jamb when in the closed position. For use with our CRL9970 Overhead Concealed Door Closer. Finished covers are available in five standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (88 kg)
Maximum Width: 42" (1.07 m)
If the door exceeds any of these limitations, full door rails should be used. These fittings are not for use with Laminated Glass.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH: Template and Instructions
DO NOT USE WITH:
European 2-9/16" (65 mm) Pivot Setback Overhead Concealed Door Closers. They Require European Door Patch Fitting PH21C.
Specifications
Installation Instructions
Templates
CAD Drawings - pdf
- PDFCommercial Patch Hardware European Series System CAD Drawings.pdf
- PDFCommercial Patch Hardware North American Series System CAD Drawings.pdf
- PDFCommercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.pdf
- PDFCommercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.pdf
CAD Drawings - dwg
- DocumentCommercial Patch Hardware European Series System CAD Drawings.dwg
- DocumentCommercial Patch Hardware North American Series System CAD Drawings.dwg
- DocumentCommercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.dwg
- DocumentCommercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.dwg
