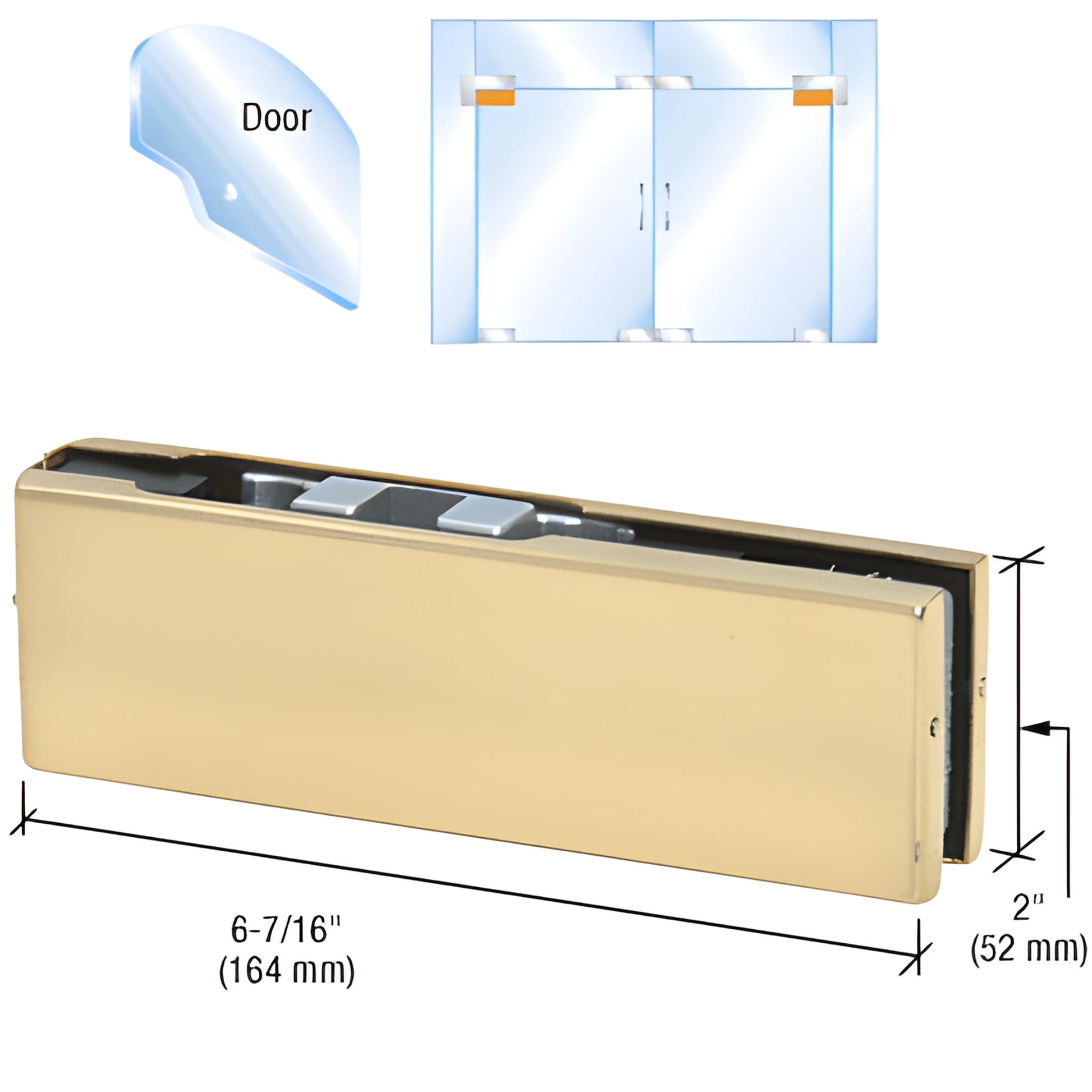

CRL Adjustable Brass Top Patch Fitting for Frameless Glass Doors

• Adjustable pivot insert allows three degrees of movement for proper door alignment
• 2-3/4" (70 mm) pivot setback
• For 3/8" or 1/2" (10 or 12 mm) glass
• Use monolithic tempered glass

The CRL Adjustable Top Door Patch Fitting (SKU: PH20CBR) features an adjustable pivot insert that provides up to 3° of movement to align the glass door to the jamb when closed. Designed for use with the CRL9970 overhead concealed door closer, this top patch fitting accepts supplied gaskets for either 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass and is available with finished covers in five standard finishes.


Use these hardware guidelines when building a glass door with this patch fitting:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.07 m)
If the door exceeds any of these limitations, use full door rails.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) diameter hole and corner notch

COMES WITH: Template and instructions

DO NOT USE WITH:
European 2-9/16" (65 mm) pivot setback overhead concealed closers — these require the European door patch fitting PH21C.

Brass Finish Advisory:
