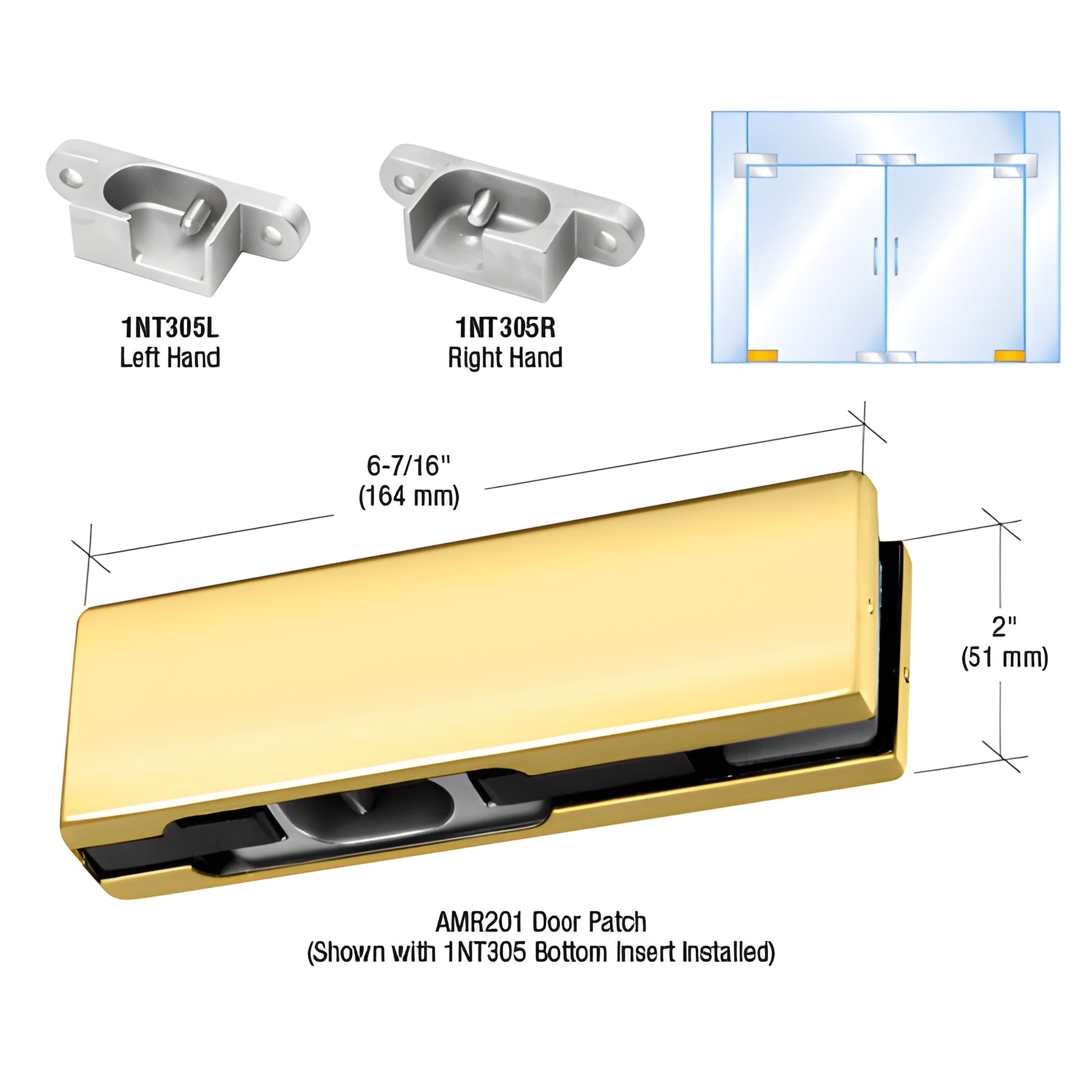

CRL Brass RH North American Bottom Door Patch Fitting
Item # PH10ERBR
$93.64
CAD
Finish (6)
Type (3)
- Bottom
- Top
- Top or Bottom
Overview
| SKU | PH10ERBR |
|---|---|
| Sold As | 1 Each |
| Finish/Color | Polished Brass |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Handing | Right Hand |
| Insert Type | 1NT305R |
| Pivot Setback | 2-3/4 |
| Series | North American |
| Type | Bottom |
| With Insert | Yes |
Description
- For 3/8" or 1/2" (10 or 12 mm) Tempered Glass
- 2-3/4" (70 mm) Pivot Setback
- For Herculite™+ Style Doors
For Use With:
Includes:
Product Warning:
For maximum door size when using this product, CRL follows GANA Guidelines.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.Specifications
Templates
CAD Drawings - pdf
- PDFCommercial Patch Hardware European Series System CAD Drawings.pdf
- PDFCommercial Patch Hardware North American Series System CAD Drawings.pdf
- PDFCommercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.pdf
- PDFCommercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.pdf
CAD Drawings - dwg
- DocumentCommercial Patch Hardware European Series System CAD Drawings.dwg
- DocumentCommercial Patch Hardware North American Series System CAD Drawings.dwg
- DocumentCommercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.dwg
- DocumentCommercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.dwg
Cleaning & Maintenance
