CRL Brushed Stainless Steel RH Bottom Patch Fitting for Glass Door
Item# PH10ERBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Handing
Right Hand
Insert Type
1NT305R
Pivot Setback
2-3/4
Series
North American
Type
Bottom
With Insert
Yes
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
- 2-3/4" (70 mm) pivot setback
- Designed for Herculite™+ style doors
SKU: PH10ERBS
For Use With:
- 3/8" or 1/2" (10 or 12 mm) tempered glass
- Glass fabrication required: one 3/4" (19 mm) diameter hole and corner notch
- Template available at crlaurence.com

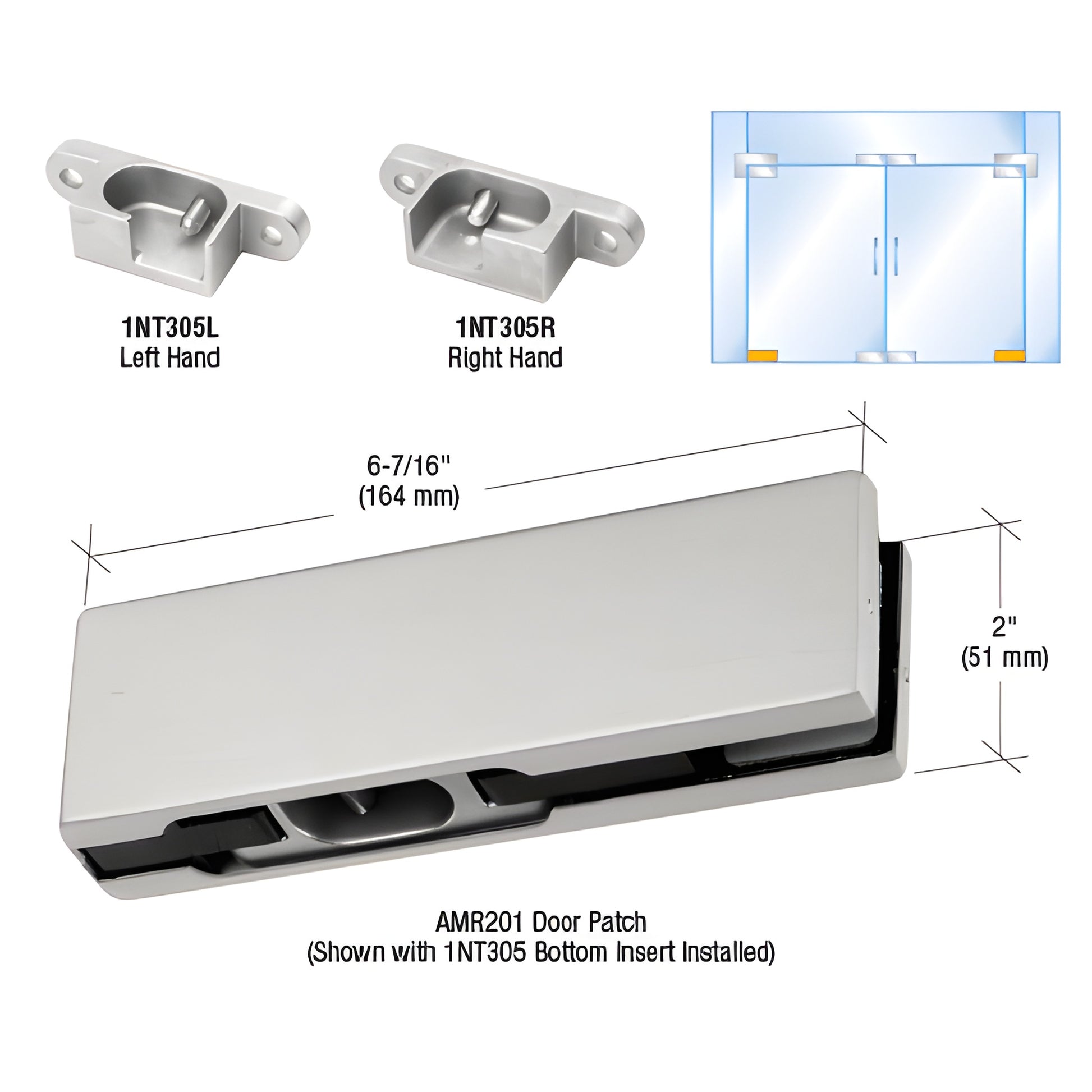

Includes:
- 1 × AMR201 door patch
- 1 × 1NT305L and 1 × 1NT305R bottom door patches
- Insert gaskets for 3/8" or 1/2" (10 or 12 mm) glass
Product Warning:
For maximum door size when using this product, CRL follows GANA Guidelines.
Most shipping weights are approximate and unverified. If exact weight is required to determine shipping costs before completing your order, contact CRL Customer Service. Product images are actual or close representations; colors may vary by monitor.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Designed for Herculite™+ tempered glass doors, this pivot patch system delivers precise pivot setback and reliable hardware compatibility—ideal for commercial storefront and interior glass door installations. Shop PH10ERBS now to complete your glass door hardware package.
CAD Drawings - dwg
