CRL Matte Black RH North American Bottom Door Patch Fitting
CRL Matte Black RH North American Bottom Door Patch Fitting
Regular price
$91.46 CAD
Regular price
Sale price
$91.46 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH10ERMBL
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Matte Black |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Handing | Right Hand |
| Insert Type | 1NT305R |
| Pivot Setback | 2-3/4 |
| Series | North American |
| Type | Bottom |
| With | Insert Yes |
Overview

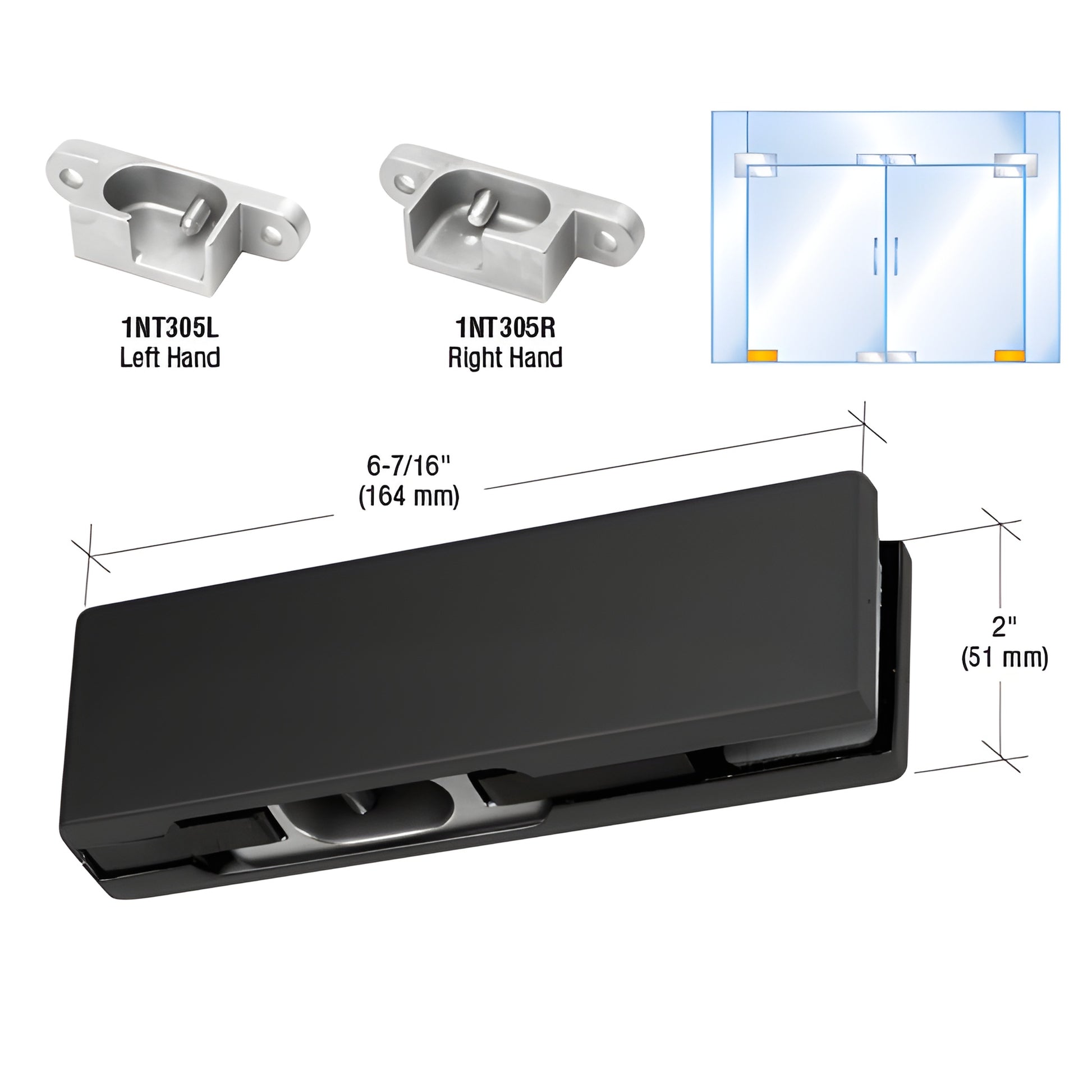

This product is designed for use with 3/8" or 1/2" (10 or 12 mm) tempered glass, featuring a 2-3/4" (70 mm) pivot setback and is ideal for Herculite™+ style doors.
It requires glass fabrication with a 3/4" (19 mm) diameter hole and corner notch, with templates available at crlaurence.com.
The package includes one AMR201 door patch, two bottom door patches (1NT305L and 1NT305R), and insert gaskets for the specified glass thickness.
For maximum door size, CRL adheres to GANA guidelines, and shipping weights are approximate, so please contact CRL Customer Service for precise shipping details.
It requires glass fabrication with a 3/4" (19 mm) diameter hole and corner notch, with templates available at crlaurence.com.
The package includes one AMR201 door patch, two bottom door patches (1NT305L and 1NT305R), and insert gaskets for the specified glass thickness.
For maximum door size, CRL adheres to GANA guidelines, and shipping weights are approximate, so please contact CRL Customer Service for precise shipping details.
Specifications
Templates
CAD Drawings - pdf
CAD Drawings - dwg
