CRL
CRL Satin Anodized Right-Hand Bottom Patch Fitting for Glass Doors
Item# PH10ERA
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Handing
Right Hand
Insert Type
1NT305R
Pivot Setback
2-3/4
Series
North American
Type
Bottom
With Insert
Yes
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
- 2-3/4" (70 mm) pivot setback
- Designed for Herculite™+ style doors (door patch hardware)
For Use With:
- 3/8" or 1/2" (10 or 12 mm) tempered glass
- Glass fabrication required: one 3/4" (19 mm) diameter hole and corner notch
- Template available at crlaurence.com

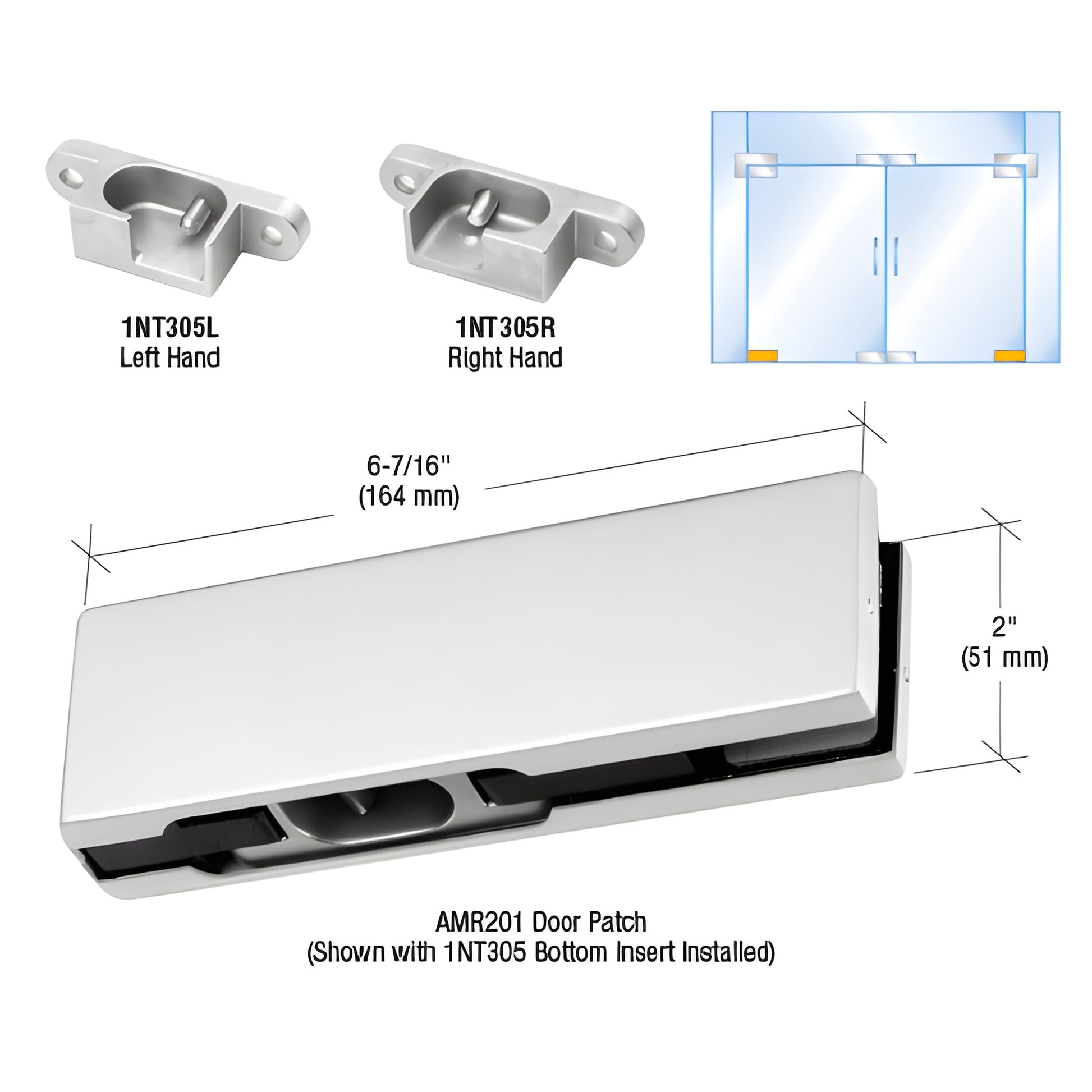

Includes:
- 1 × AMR201 door patch
- 1 × 1NT305L and 1 × 1NT305R bottom door patches
- Insert gaskets for 3/8" or 1/2" (10 or 12 mm) glass
Product Warning:
For maximum door size when using this product, CRL follows GANA Guidelines.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, request it from CRL Customer Service before submitting your order. Product images are representative; colors may vary with monitor settings.
SKU: PH10ERA — Herculite door patch kit for 3/8" or 1/2" tempered glass.
Order now to get the PH10ERA Herculite™+ pivot patch hardware for precision glass door installations.
CAD Drawings - dwg
