CRL Black Bronze Anodized RH North American Bottom Door Patch Fitting
Item # PH10ERDU
$74.13
CAD
Finish (6)
-
Satin Anodized -
Polished Brass -
Brushed Stainless Steel -
Black Bronze Anodized -
Matte Black -
Polished Stainless Steel
Type (3)
- Bottom
- Top
- Top or Bottom
Overview
| SKU | PH10ERDU |
|---|---|
| Sold As | 1 Each |
| Finish/Color | Black Bronze Anodized |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Handing | Right Hand |
| Insert Type | 1NT305R |
| Pivot Setback | 2-3/4 |
| Series | North American |
| Type | Bottom |
| With Insert | Yes |
Description

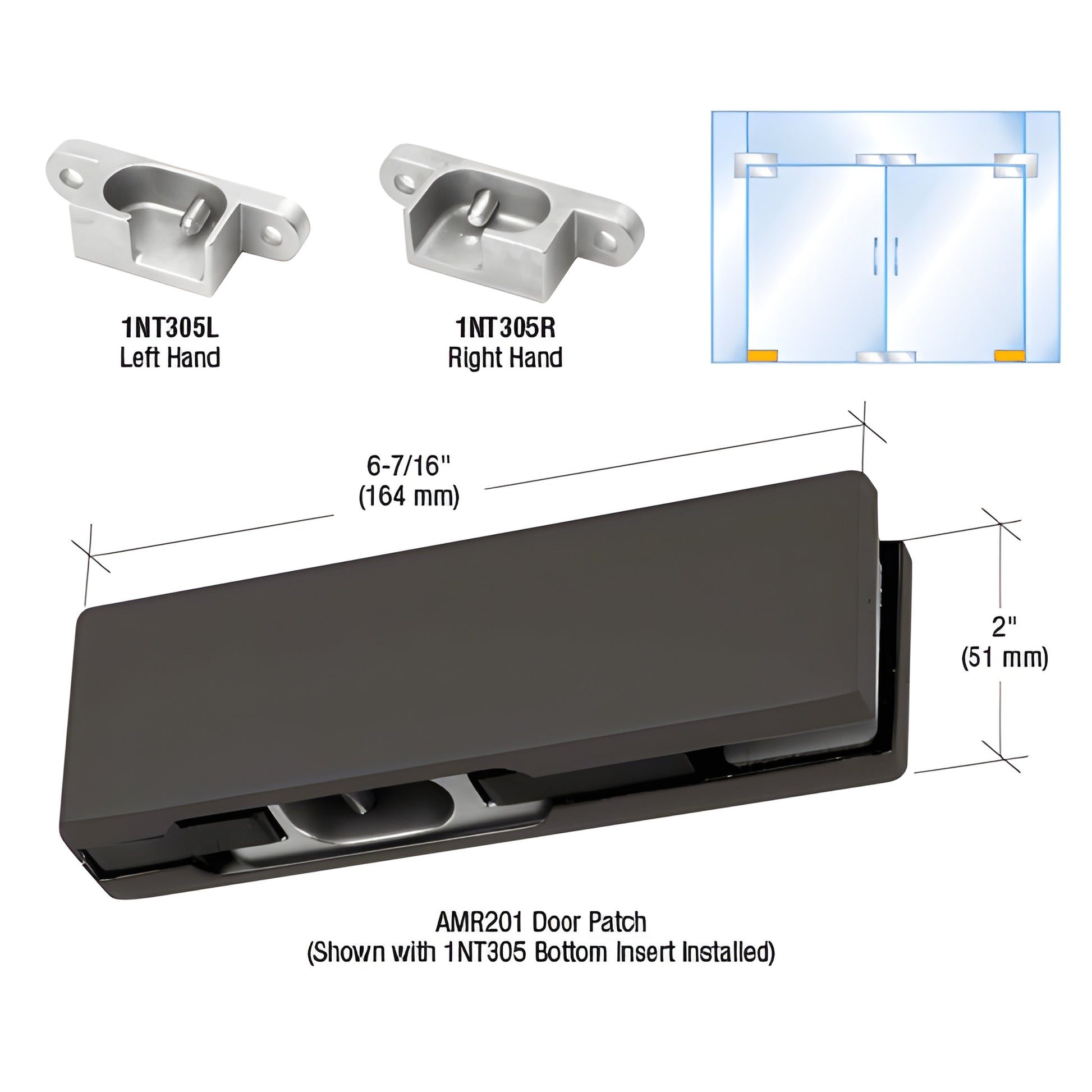

- For 3/8" or 1/2" (10 or 12 mm) Tempered Glass
- 2-3/4" (70 mm) Pivot Setback
- For Herculite™+ Style Doors
For Use With:
Includes:
Product Warning:
For maximum door size when using this product, CRL follows GANA Guidelines.
