CRL Laguna Matte Black Dual Roller Wall-Mount SoftBrake Sliding Door

• Intended for wall mounting single sliding glass doors
• Softbrake braking system controls final 2-1/4" (57 mm) of door travel
• Improved anti-lift double roller design for secure, smooth operation
• Includes all hardware for installation with 3/8" or 1/2" (10 or 12 mm) tempered glass
• Durable Alloy 316 stainless steel construction

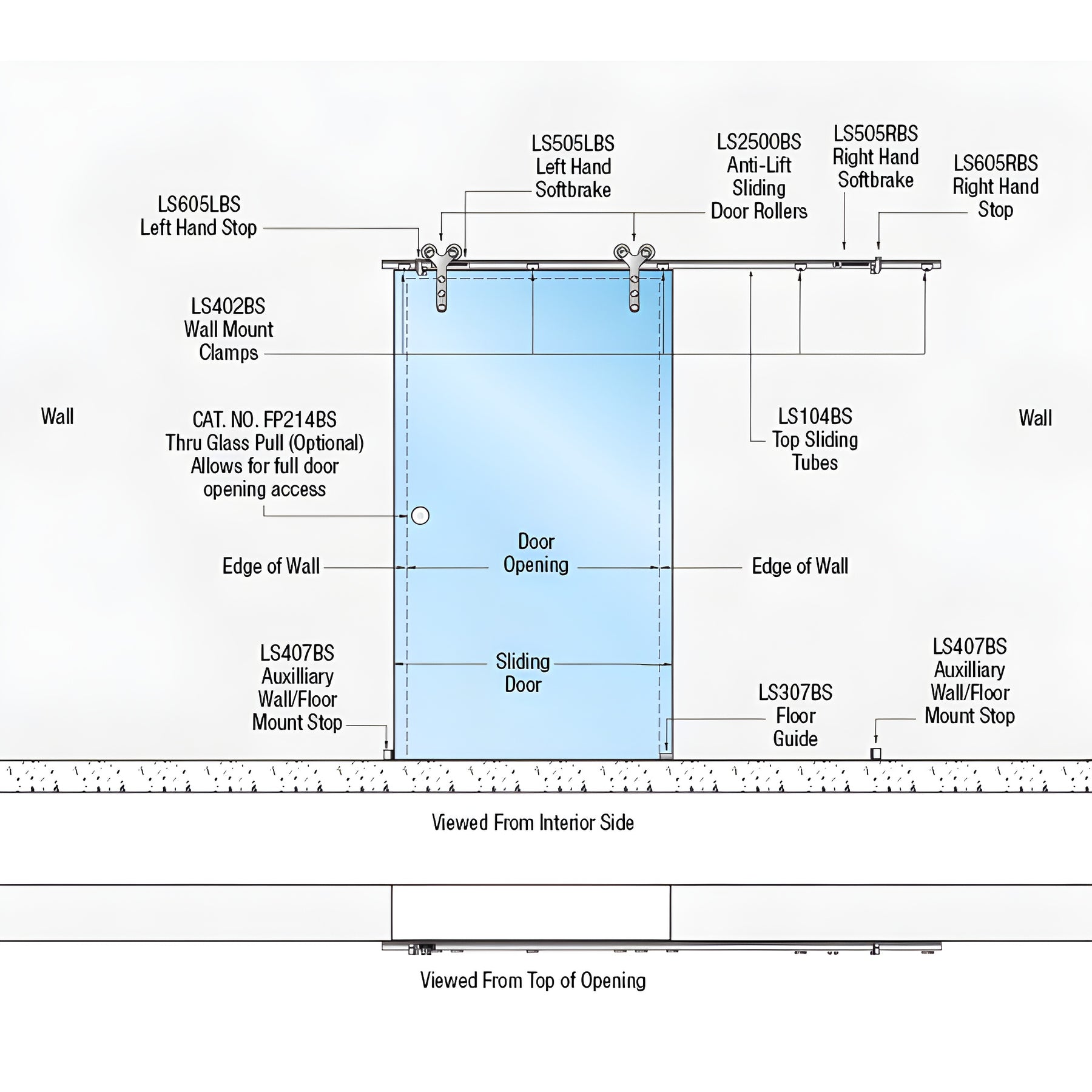

The CRL Double Roller Laguna Series Wall Mount Single Slider with Softbrake Kit (SKU: LSWM27MBL) is a complete wall-mount sliding glass door kit that supplies all components except the tempered glass. Ideal for interior applications where a single sliding glass door is attached to the inside face of a reinforced wall.

The anti-lift top rollers mount to glass using either surface mount or flush mount fittings (both included). Rollers feature ±1/8" (3 mm) vertical adjustment to simplify door alignment. Use only 3/8" or 1/2" (10 or 12 mm) tempered glass—laminated glass is not permitted.

Door system limitations:
Maximum door weight: 220 lbs (100 kg)
Minimum door width: 37-13/16" (960 mm)
Maximum door width: 53-9/16" (1.36 m)
Maximum door height: 98-7/16" (2.50 m)
Maximum track length: 104" (2.64 m)

Product Warning:

STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to verify suitability for intended use and site conditions. Installers must be qualified and ensure compliance with local, state, and federal regulations, and select appropriate fixing materials and procedures.

Shop the Laguna Series wall-mount single sliding glass door kit with Softbrake (SKU: LSWM27MBL) for reliable anti-lift rollers and stainless steel durability. Add to cart to get started.
