Product Details
- This Kit is Intended for Wall Mounting
- Softbrake Braking System Controls Door Closing
- Improved Anti-Lift Double Roller Design
- Assembly Contains All Necessary Hardware to Complete the Installation with 3/8" or 1/2" (10 or 12 mm) Tempered Glass
- Alloy 316 Stainless Steel Construction

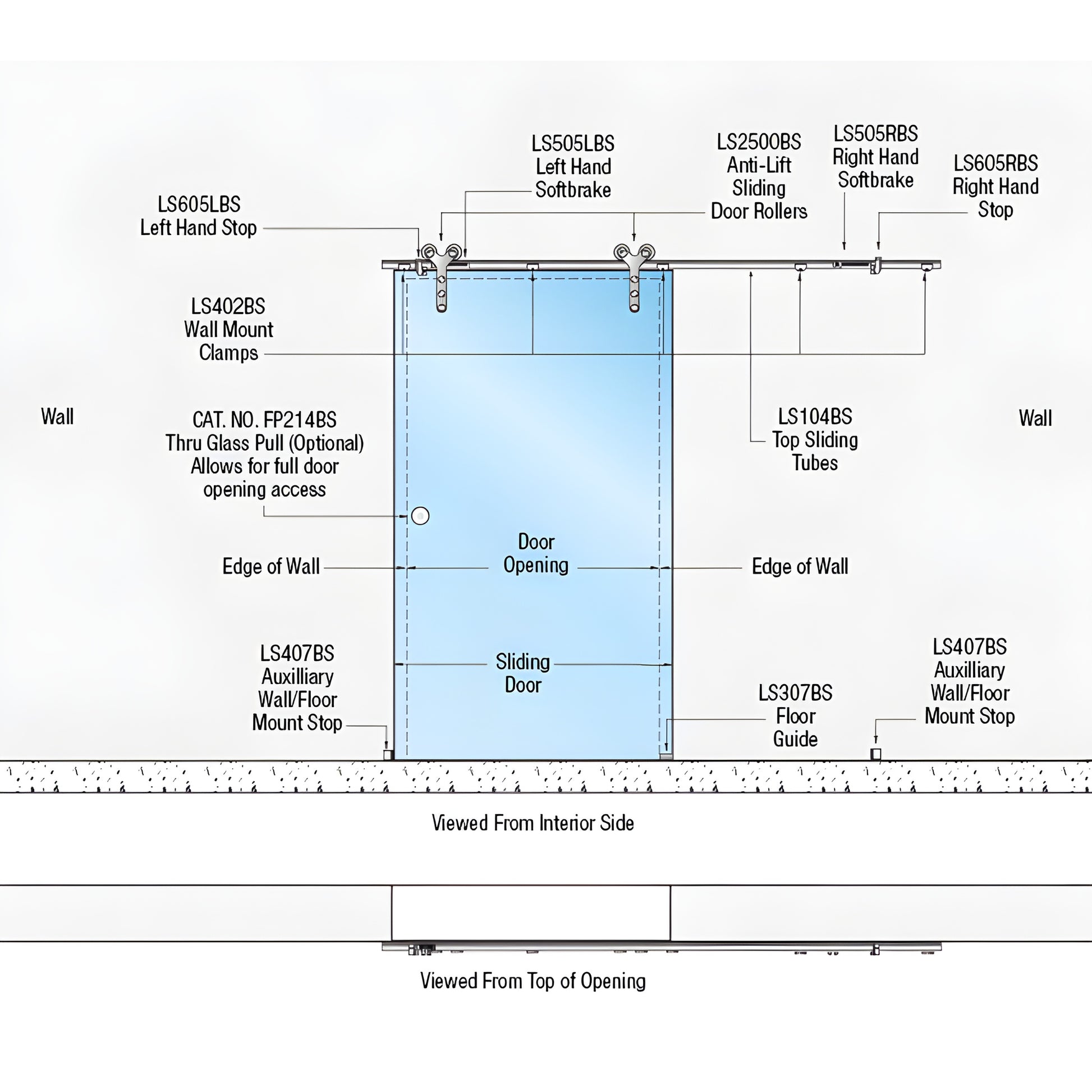

The CRL Double Roller Laguna Series Wall Mount Single Slider with Softbrake Kit contains all the components you will need (except the tempered glass) to complete a single door installation. The Softbrake braking system helps to control the last 2-1/4" (57 mm) of travel. This model is used in applications where you are attaching a single sliding door to the inside face of a sufficiently reinforced wall.
The Anti-Lift Sliding Door Top Rollers can be attached to the glass with either Surface Mount or Flush Mount Fittings (both are supplied). The Rollers have a 1/8" (3 mm) up or down vertical adjustment to aid in door alignment. This system should only be used with 3/8" or 1/2" (10 or 12 mm) tempered glass. Laminated glass cannot be used.
DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
