Product Details
- Aluminum Machined Body
- Complete with Lock Mechanism and Keyed Cylinder
- Gaskets for Use with 3/8" or 1/2" (10 or 12 mm) Glass
- Use Monolithic Tempered Glass

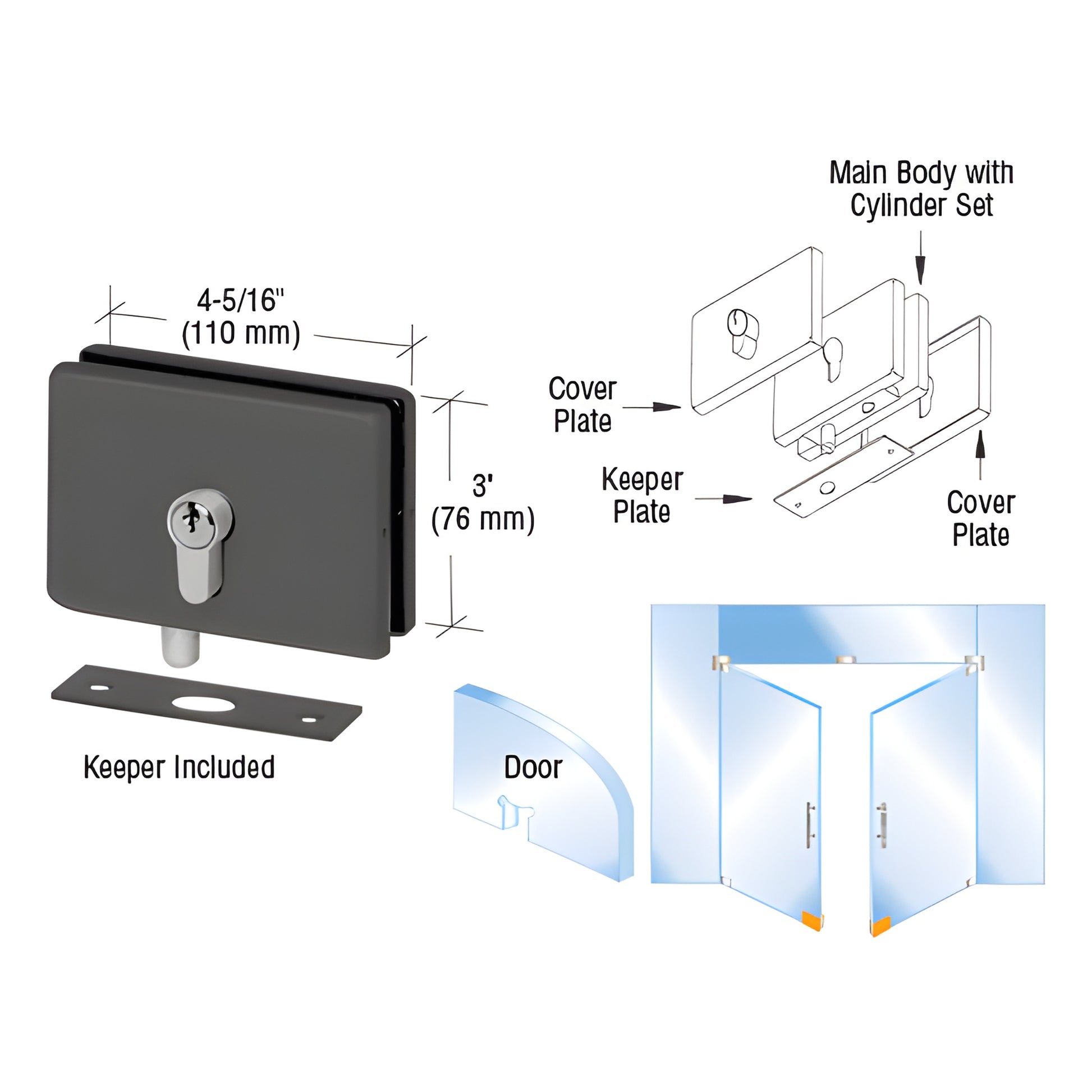

This CRL European Series Glass Mounted Patch Lock with Keeper can be mounted at the bottom of the door, or on the side of the door when used in a jamb-type installation.
INCLUDES: Aluminum Machined Body with Lock Mechanism and Randomly Keyed Cylinder; Cover Plates and Keeper Plate (Choice of Four Finishes); Gaskets for 3/8" (10 mm) or 1/2" (12 mm) Glass; Template and Instructions
SPECIFICATIONS:
FOR USE WITH:
Supplied Keeper Plate
GLASS FABRICATION REQUIRED:
One Cut-Out
