Product Details
- For 1/2" (12 mm) Tempered Glass Only
- Use Monolithic Tempered Glass
- Supported by Glass Side Panels
- Creates an Even Sight Line When Used with CRL Door Rails
- Stock Single 36" (914 mm) and Double 72" (1.83 m) Headers, with Custom Sizes Available
- Six Standard Architectural Finishes
- Custom Finishes Available on Special Order

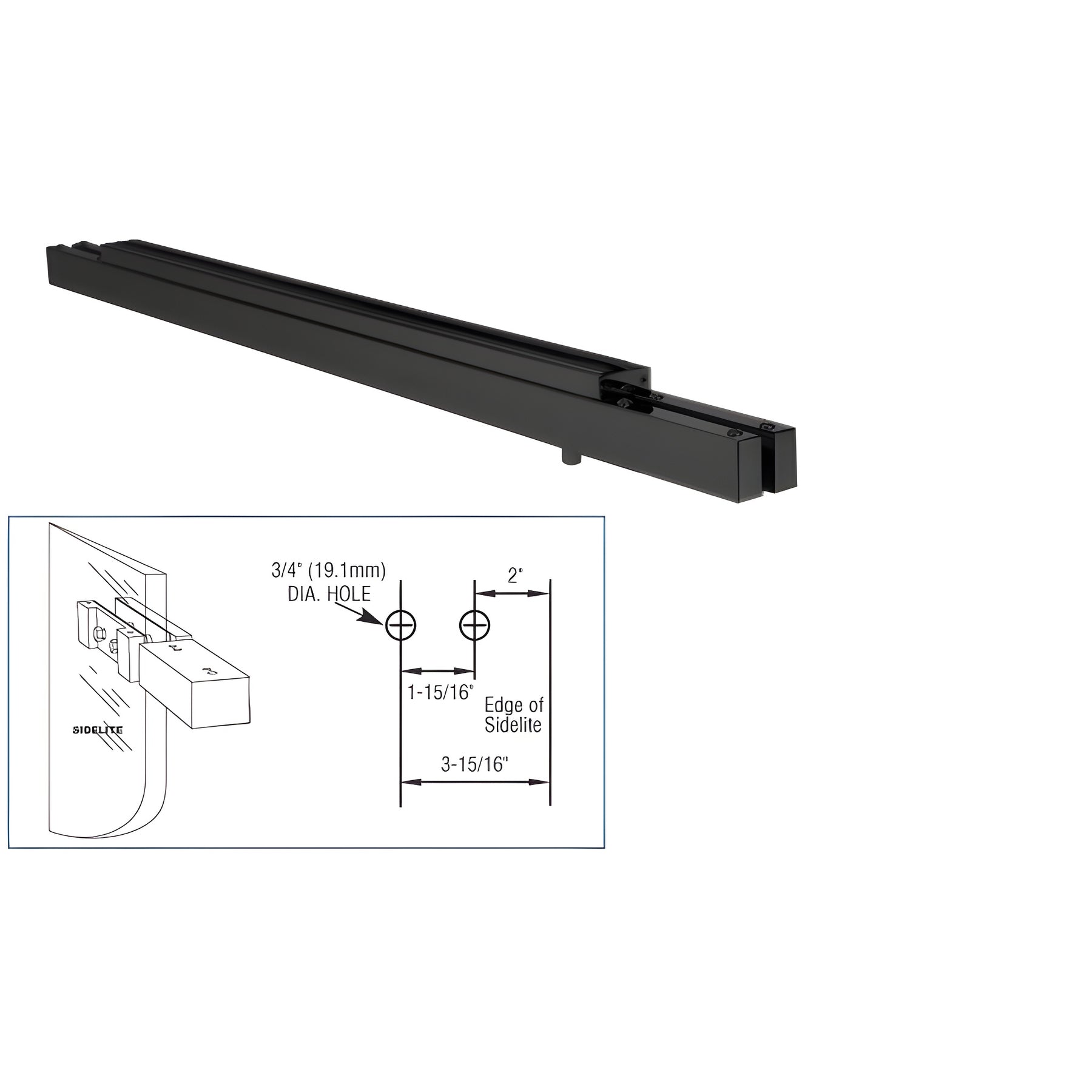

CRL Narrow Floating Headers with Walking Beam Top Pivots work with CRL PH20 and PH21 Series Top Door Patch Hardware Fittings, and with all CRL 1/2" (12 mm) Heavy Glass Door Rails. When used with CRL Door Rails you get an even sight line, as the width of the Narrow Header matches the width of the Door Rail. For use with Free-Swinging Bottom Pivots or Floor Closers, Standard Narrow Floating Headers with Walking Beam Top Pivots are fabricated for use in 1/2" (12 mm) glass-to-glass configurations. Custom lengths, glass-to-wall configurations, and Floating Headers for offset pivots are also available.
Custom Floating Headers cover the rest of the offered configurations, including various glass thicknesses, Headers in custom lengths, glass-to-wall configurations, and Headers prepped for surface mounted magnetic locks, magnetic shear locks, a surface mounted top pivot, a walking beam pivot or an overhead concealed door closer.
NOTE: If the weight of the transom above the header exceeds 100 lbs. (45.4 kg) the transom will need to be supported from the ceiling to take weight off of the header and prevent bowing. You can use either B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact Technical Sales for assistance.
APPLICATION TIP: For jobs where floor closers are not an option due to special finishes or minimal floor thickness, the CRL Floating Header for Overhead Concealed Door Closers is the ideal solution.
STOCK FLOATING HEADERS: For 1/2" (12 mm) glass-to-glass installations, and prepped for Overhead Concealed Door Closers.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
If the weight of the transom above the header exceeds 100 pounds (45.4 kg) the transom will need to be supported from the ceiling to take weight off of the header and prevent bowing. The customer can use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.
Length and installation type must be specified when ordering. If the weight of the transom above the header exceeds 100 pounds (45.4 kg) the transom will need to be supported from the ceiling to take weight off of the header and prevent bowing. The customer can use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact Technical Sales.
