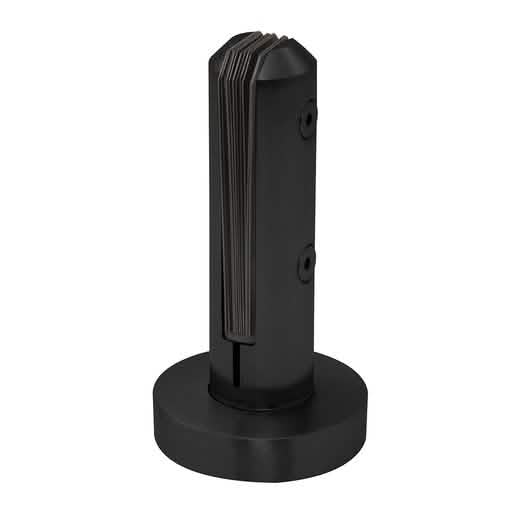

CRL Matte Black Low Profile Round One-Piece Surface Mount Frameless Windscreen Clamp
CRL Matte Black Low Profile Round One-Piece Surface Mount Frameless Windscreen Clamp
Regular price
$357.70 CAD
Regular price
Sale price
$357.70 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# AFWC4SMBL
Shipping Weight: 2.26 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 2.26 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1


Description
Alloy | 316 |
Attachment | Surface |
Base Plate Diameter 3-1/2 in. | (89 mm) |
Diameter | 1-7/8in. (48 mm) |
Finish/Color | Matte Black |
Glazing Thickness | 3/8 in., 1/2 in., 9/16 in. (10 mm, 12 mm, 14 mm) |
Material | Stainless Steel |
Mounting Hole Diameter 9/32 in. | (7 mm) |
Overview
CRL One-Piece Surface Mount Clamps offer a seamless installation experience for 3/8" or 1/2" (10 or 12 mm) Tempered Monolithic Glass and 9/16" (13.52 mm) Tempered Laminated Glass, making them perfect for pool decks and patios.

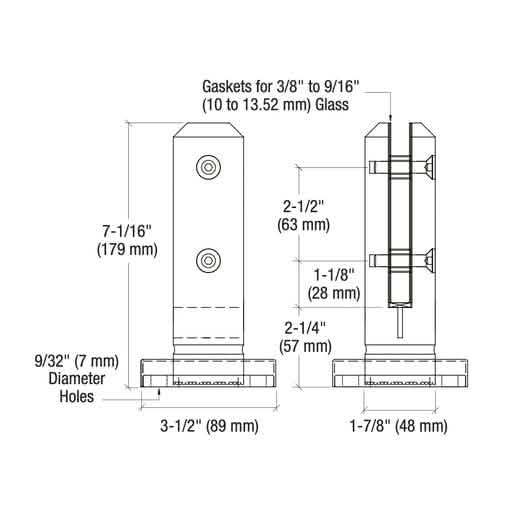

These easy-to-install clamps require two 5/8" (16 mm) holes per piece and stand at a height of 7-1/16" (179 mm).
CRL Frameless Windscreen Clamps provide a sleek, unobtrusive solution for creating tempered glass windscreens or pool surrounds without the distraction of vertical or horizontal frame members.
Available in multiple styles, including surface mount options and custom powder-painted finishes, these clamps offer flexibility and style while meeting local building codes.
For accurate shipping weights or costs, please contact CRL Customer Service prior to order completion.
These easy-to-install clamps require two 5/8" (16 mm) holes per piece and stand at a height of 7-1/16" (179 mm).
CRL Frameless Windscreen Clamps provide a sleek, unobtrusive solution for creating tempered glass windscreens or pool surrounds without the distraction of vertical or horizontal frame members.
Available in multiple styles, including surface mount options and custom powder-painted finishes, these clamps offer flexibility and style while meeting local building codes.
For accurate shipping weights or costs, please contact CRL Customer Service prior to order completion.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Engineering & Test Reports
