• Matte black commercial glass patch door kit PHA3LMBL with top/bottom patches, transom patches, bottom pivot and stop
1 1

CRL

CRL Matte Black Commercial Patch Door Kit for Fixed Transom w/ Lock

CRL Matte Black Commercial Patch Door Kit for Fixed Transom w/ Lock

$406.89 CAD
$406.89 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHA3LMBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Single With Transom
Door Type
F Style Glass Door
Finish/Color
Matte Black
Glazing Thickness
3/8 in. or 1/2 in. (10 mm or 12 mm)
Pivot Setback
2-3/4 in. (69.85 mm)

Overview

  • Fittings for fixed glass transom
  • High-density cast body for commercial glass doors

CRL PHA3 North American Patch Door Kits (SKU: PHA3LMBL) include all hardware to complete a single free‑swinging glass door with a fixed transom, excluding glass and additional transom supports. Pivot setback: 2-3/4" (70 mm). Compatible with floor closers that use tapered spindles (floor closers ordered separately). Ideal for commercial storefronts and interior glass partition installations requiring a patch door kit for fixed transom glass.

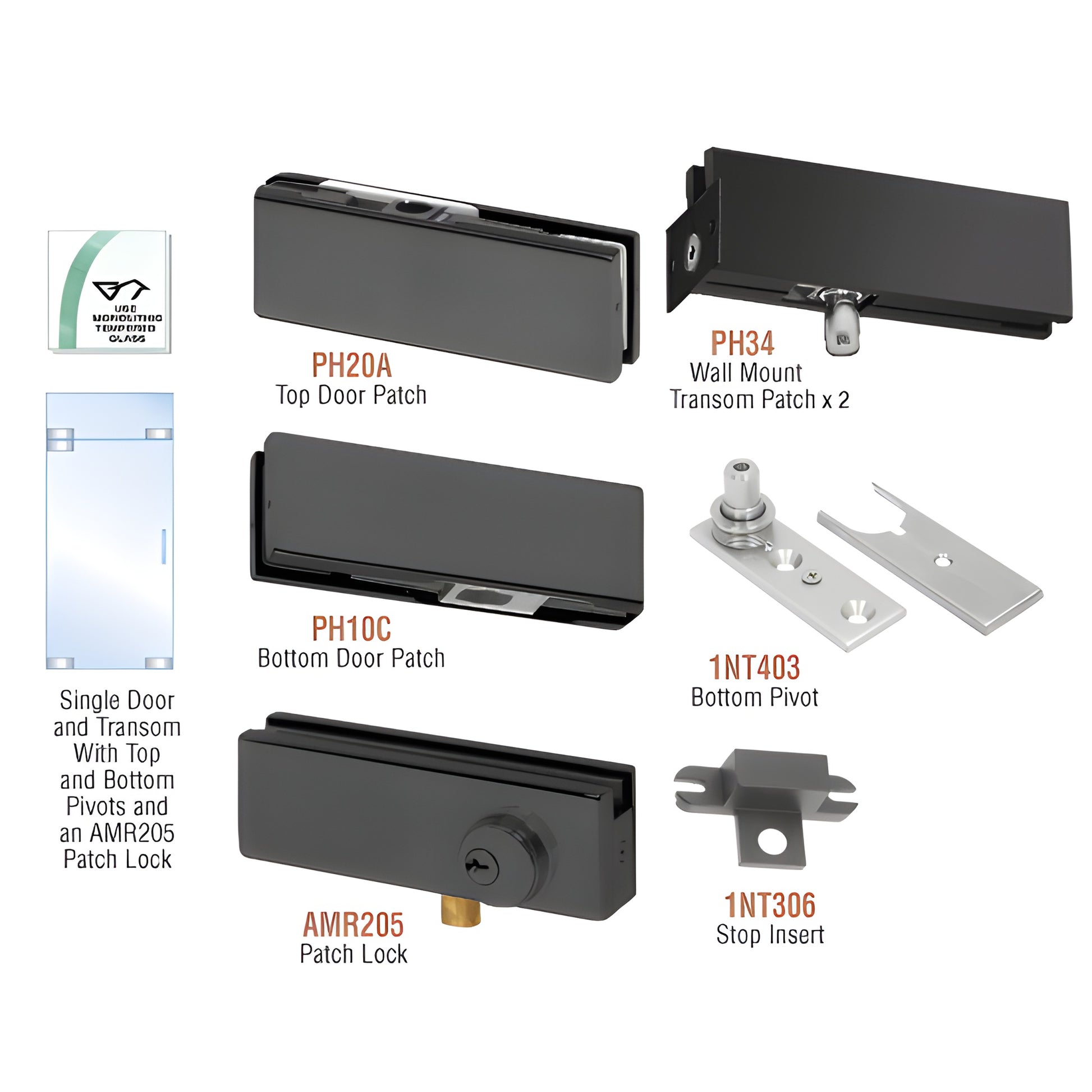

Kit contains:

  • 1 - PH20A Top Door Patch
  • 1 - PH10C Bottom Door Patch
  • 2 - PH34 Wall Mount Transom Patch
  • 1 - 1NT306 Stop Insert
  • 1 - 1NT403 Bottom Pivot
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass requires holes and notches)

Kits with lock include one Cat. No. AMR205 patch lock; cylinders, thumbturns, and keepers are ordered separately.

NOTE: For maximum door sizes when using this product, CRL follows GANA guidelines.

Most shipping weights are approximate and unverified. If exact weight is required to determine shipping costs, please contact CRL Customer Service before placing your order. Product images are actual or close representations; colors may vary by monitor.

Ready to specify this commercial patch door kit for fixed glass transoms? Contact CRL or add SKU PHA3LMBL to your quote.

Specifications
