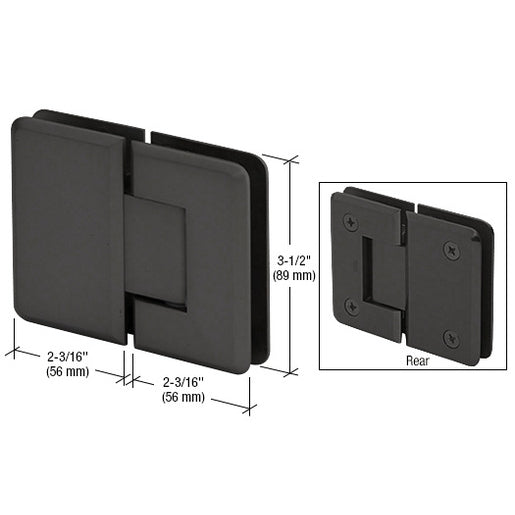

CRL Matte Black Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge

5 Degree Pre-Set

No

Adjustable

No

Edge Profile

Beveled

Finish/Color

Matte Black

Glass To Glass Angle

180

Glazing Thickness

5/16 in. To 1/2 in. (8 mm To 12 mm)

Height

3-1/2 in. (89 mm)

Material

Brass

Maximum Door Weight - 2 Hinges

80 lbs. (36.3 kg)

Maximum Door Weight - 3 Hinges

120 lbs. (54.4 kg)

Maximum Door Width - 2 Hinges

28

Maximum Door Width - 3 Hinges

32

Mounting Type

Glass To Glass

Self-Centering

Yes

SeriesPinnacle

Width - Door Portion2-3/16 in. (56 mm)

Width - Sidelite Portion2-3/16

CRL Pinnacle 180° Matte Black Glass-to-Glass Shower Door Hinge

Elevate your frameless shower enclosure with the CRL Pinnacle 180° Matte Black Glass-to-Glass Shower Door Hinge. Designed for monolithic tempered safety glass from 5/16" (8 mm) to 1/2" (12 mm), this hinge delivers a sleek, modern aesthetic with functional durability. Featuring smooth radius corners and beveled edges, it is a stylish alternative to the popular Geneva Series.

Key Features:

• Self-centering design ensures the door aligns perfectly when within 15° of closed position
• Reversible 5-degree pivot pin for either 90° or 85° factory-set closing positions
• Sleek matte black finish complements modern bathroom hardware
• Constructed from solid brass with stainless steel pins, springs, and plunger tips
• Supports up to 80 lbs (36 kg) with two hinges and doors up to 28" (711 mm) wide
• Supports up to 120 lbs (54 kg) with three hinges and doors up to 32" (813 mm) wide
• Custom pivot pins available to accommodate off-angle wall conditions up to 45°
• Includes gaskets, screws, and installation template (P1N13 gasket pack required for 5/16" glass)
• Replacement hardware available: P102 (wall plate screws), P615 (cover plate screws)
• Three-year warranty for added confidence

Specifications:

• Glass Thickness: 5/16" to 1/2" (8 to 12 mm) Tempered Safety Glass
• Hinge Swing: 90° in and 90° out
• Closing Mechanism: Self-centering within 15° of closed position
• Material: Solid Brass
• Finish: Matte Black

Important Notes:

• Use only the included template for glass fabrication to ensure compatibility
• Designed specifically for residential or hotel showers. Alternate uses require CRL Technical Sales approval
• Shipping weights are approximate. Contact CRL Customer Service for exact weights if needed for shipping calculations
• Product images shown represent the actual product or a close likeness. Monitor settings may affect color appearance

Add lasting elegance and precise functionality to your shower space with the CRL Pinnacle 180° Matte Black Glass-to-Glass Hinge.
