- For 3/8" or 1/2" (10 or 12 mm) Glass
- Allows for 180º Door Swing
- Left and Right Handed
- Also Works with CRL 3/4" (19 mm) Offset Arm Bottom Door Rails with No Alterations
- Use Monolithic Tempered Glass
- High Density Cast Body
- Cover Plates (Finish of Your Choice)
- Gasket for 3/8" or 1/2" (10 or 12.7 mm) Glass
- Template and Instructions SPECIFICATIONS: For Use With:
- 0PF40 Transom Patch Fittings
- 1NT401 Surface Mounted Top Pivot
- 1NT405 Threaded Top Pivot GLASS FABRICATION REQUIRED: One 3/4" (19 mm) Diameter Hole and Corner Notch COMES WITH: Template and Instructions Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
The

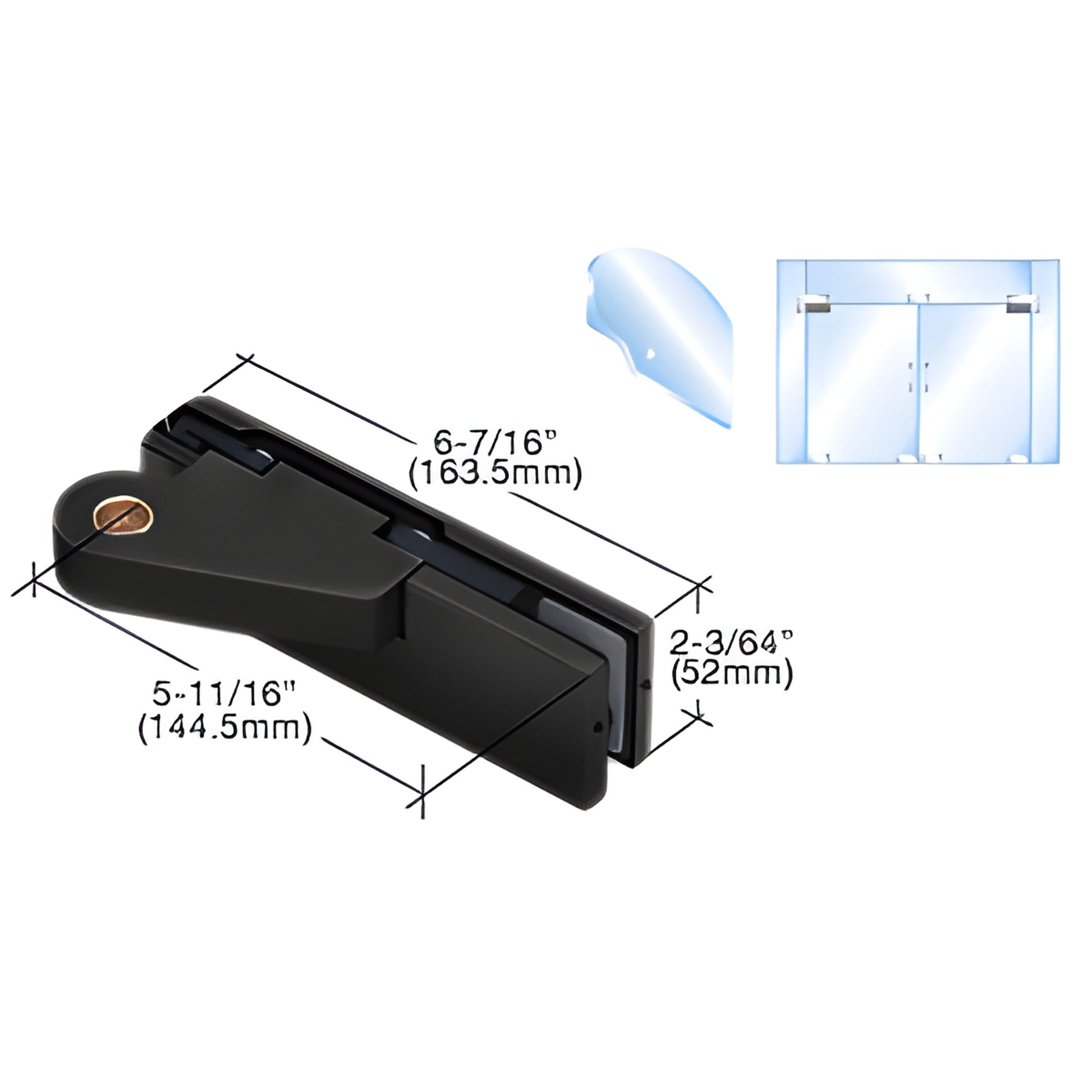

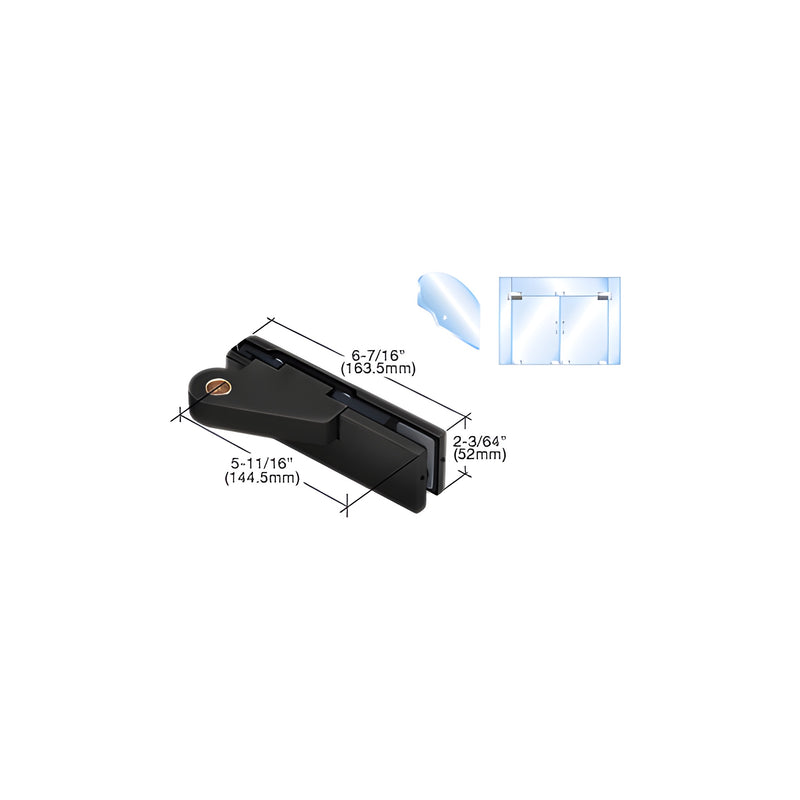

CRL Top of Door Offset Patch Fitting
is specifically designed to work with offset arm bottom door rails, with no alterations required. It will also work with other offset patch fittings. Allowing for a full 180º door swing, these fittings are available for right or left hand configurations, in your choice of brushed or polished stainless steel.
INCLUDES
High Density Cast Body
Cover Plates (Finish of Your Choice)
Gasket for 3/8" or 1/2" (10 or 12.7 mm) Glass
Template and Instructions
SPECIFICATIONS
For Use With
0PF40 Transom Patch Fittings
1NT401 Surface Mounted Top Pivot
1NT405 Threaded Top Pivot
GLASS FABRICATION REQUIRED
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
