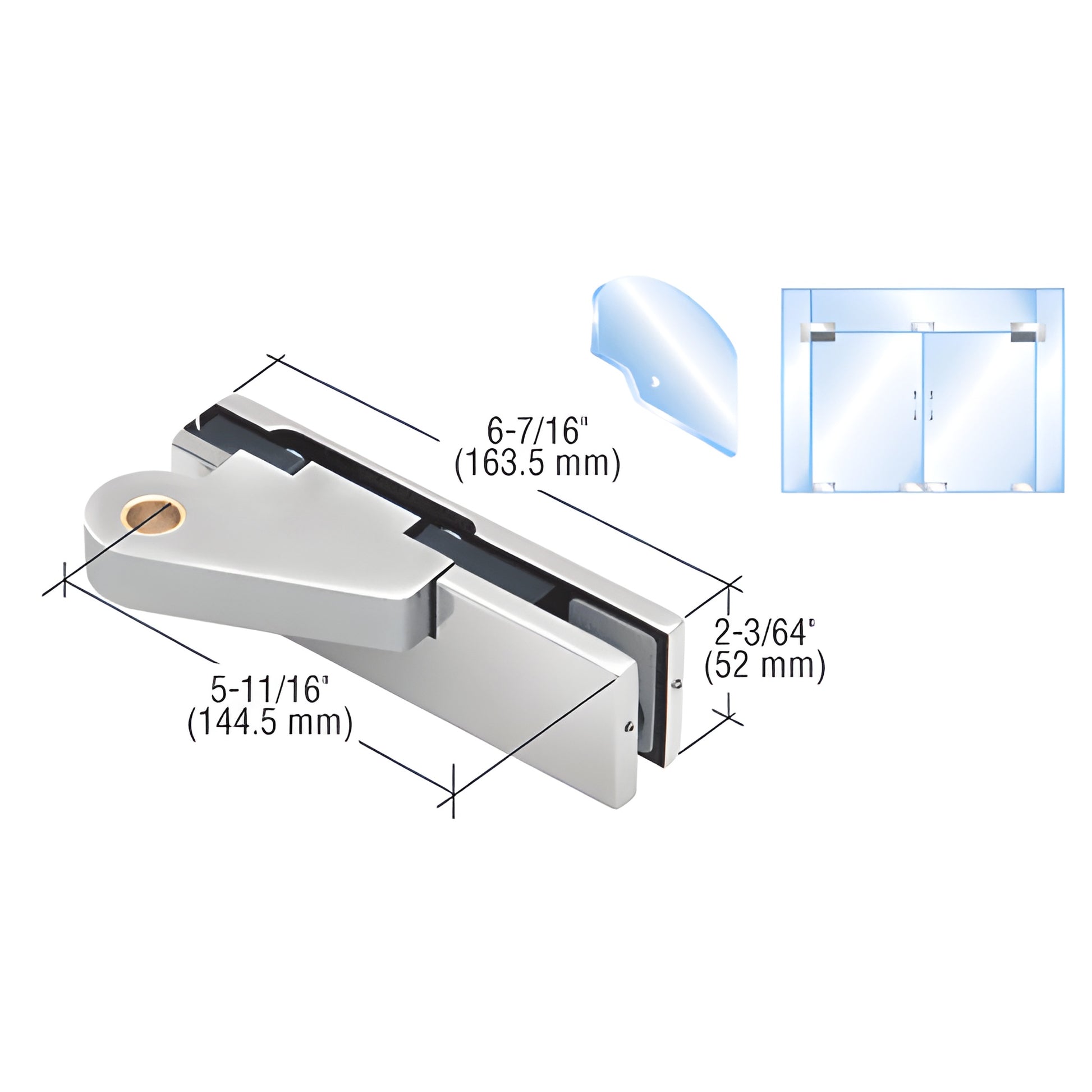

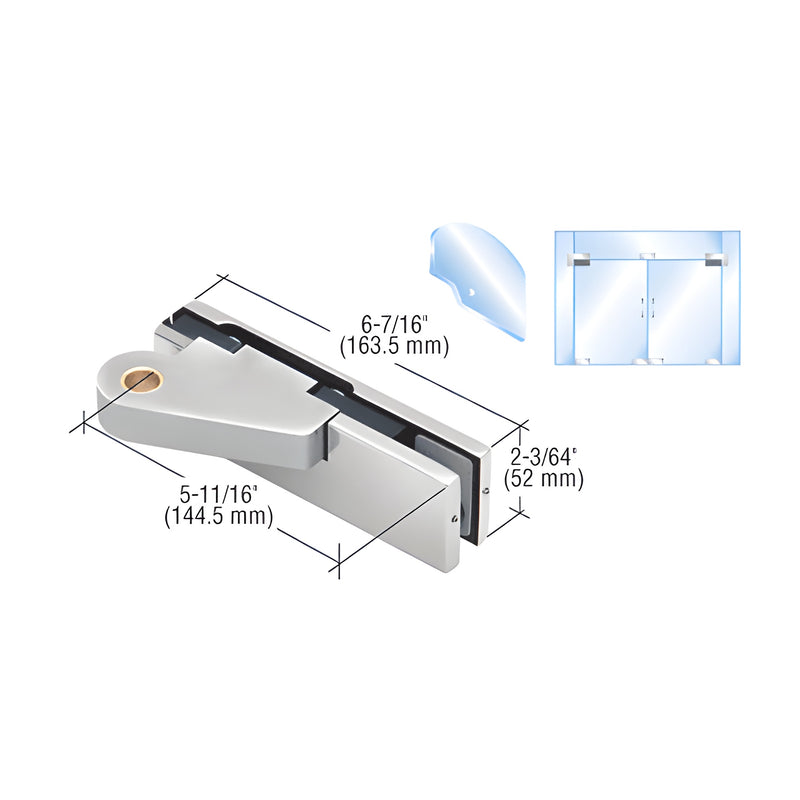

CRL Polished Stainless Right Offset Top Patch Fitting for Glass Doors
CRL Polished Stainless Right Offset Top Patch Fitting for Glass Doors
Regular price
$162.75 CAD
Regular price
Sale price
$162.75 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0PF20RPS
Shipping Weight: 3.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Handing
Right Hand
Series
Offset
Type
Top
Overview
- For 3/8" or 1/2" (10 or 12 mm) glass
- Allows for 180º door swing
- Left- and right-handed configurations
- Also works with CRL 3/4" (19 mm) offset arm bottom door rails with no alterations
- Use monolithic tempered glass
The CRL Top of Door Offset Patch Fitting (SKU: 0PF20RPS) is engineered for glass storefront and interior glass doors where an offset arm bottom rail is used. Designed to accept monolithic tempered glass and compatible with other offset patch fittings, it permits a full 180º door swing and is available in left- or right-hand versions and brushed or polished stainless steel finishes for a durable, architectural look.
INCLUDES:
- High-density cast body
- Cover plates in your choice of finish (brushed or polished stainless steel)
- Gasket for 3/8" or 1/2" (10 or 12.7 mm) glass
- Template and instructions
SPECIFICATIONS:
For Use With:
- 0PF40 Transom Patch Fittings
- 1NT401 Surface Mounted Top Pivot
- 1NT405 Threaded Top Pivot
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) diameter hole and corner notch
COMES WITH: Template and instructions
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Why choose this offset patch fitting? Easy, no-modification integration with CRL bottom door rails, full 180º swing, and stainless steel finishes make it ideal for commercial glass doors and frameless glass installations.
Order SKU 0PF20RPS today or contact CRL for volume pricing and technical support.
Specifications
CAD Drawings - dwg
