CRL Stainless Right Offset Bottom Patch Fitting for Glass Door
CRL Stainless Right Offset Bottom Patch Fitting for Glass Door
Regular price
$194.17 CAD
Regular price
Sale price
$194.17 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0PF10RPS
Shipping Weight: 3.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Handing
Right Hand
Series
Offset
Type
Bottom
Overview
- Allows for 180º door swing
- For 3/8" or 1/2" (10 or 12 mm) glass
- Left- and right-handed configurations

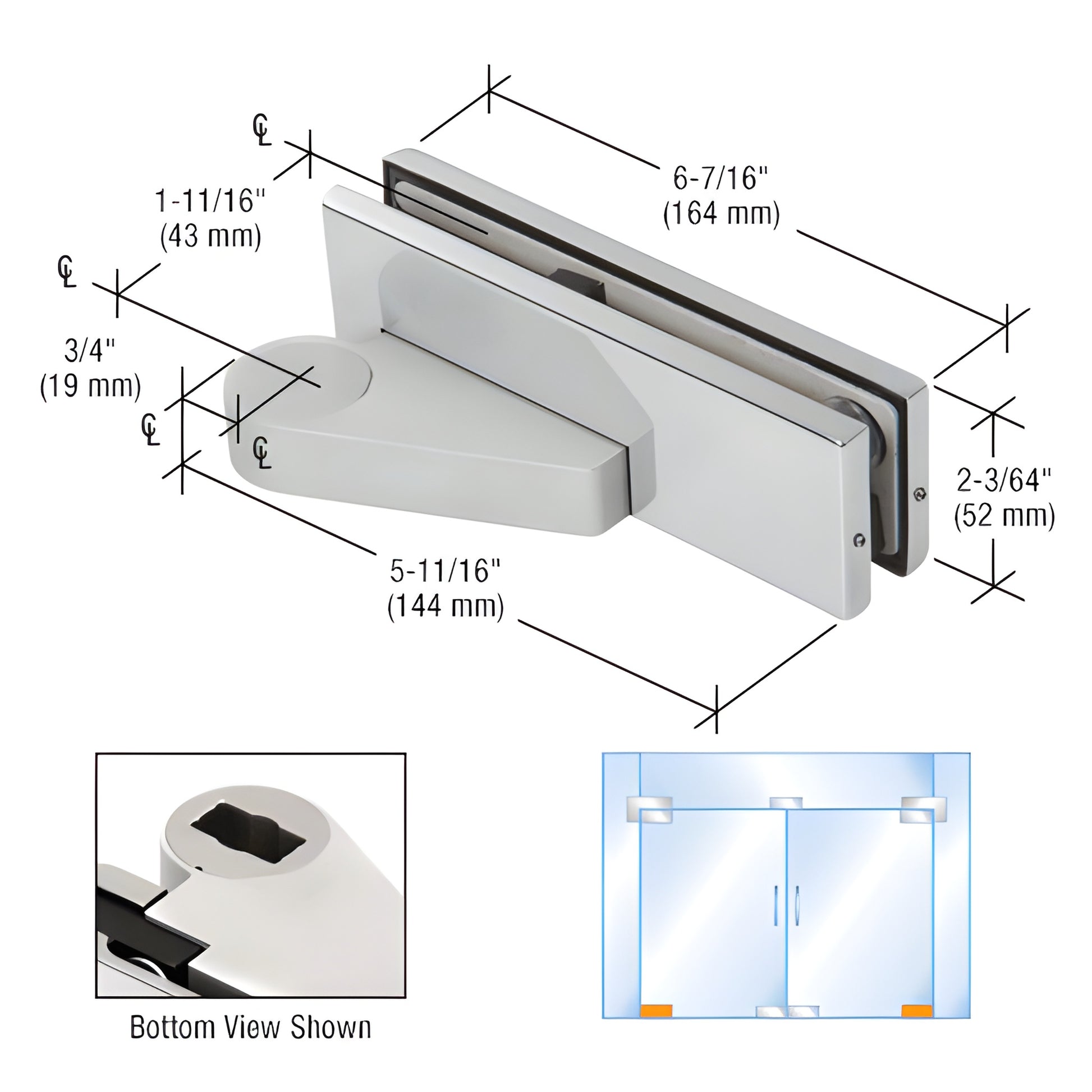

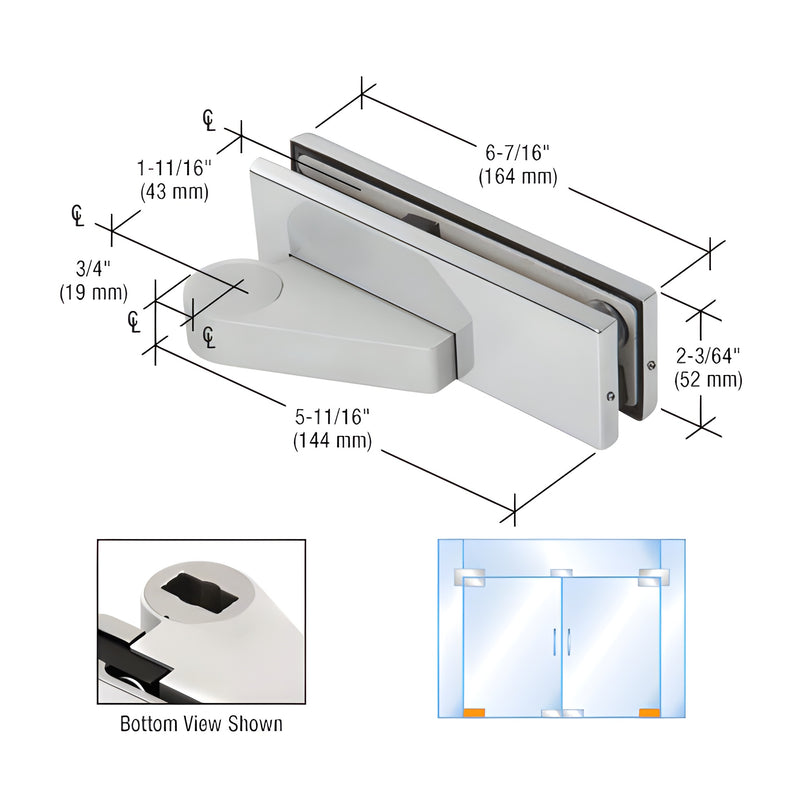

The CRL Bottom of Door Offset Patch Fitting (SKU: 0PF10RPS) is a heavy-duty offset patch fitting for frameless glass doors, engineered to provide a full 180º door swing with secure bottom-of-door support. Compatible with 3/8" or 1/2" (10 or 12.7 mm) tempered glass, it pairs with CRL offset hardware and floor closers in both brushed and polished stainless steel finishes. Glass fabrication templates and installation instructions are included for straightforward fitting and alignment.
INCLUDES:
- High-density cast body
- Cover plates in your choice of finish (brushed or polished stainless steel)
- Gasket for 3/8" or 1/2" (10 or 12.7 mm) glass
- Template and instructions for glass fabrication and installation
SPECIFICATIONS:
For Use With:
- CRL8300 Series Floor Closers
- CRL8400 Series Floor Closers
- INT402 Bottom Free Swinging Pivot
- INT403 Adjustable Bottom Free Swinging Pivot
- INT406 Adjustable Bottom Free Swinging Pivot
Glass Fabrication Required:
- One 3/4" (19 mm) diameter hole and corner notch
Comes With: Template and instructions
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For more details, view the Stainless Steel Disclaimer in the Technical References section below.
Order the CRL Bottom of Door Offset Patch Fitting (SKU: 0PF10RPS) today to equip frameless glass doors with reliable 180º swing performance and stainless-steel durability.
Specifications
CAD Drawings - dwg
