CRL Brushed Stainless Right Offset Bottom Patch for Glass Door
CRL Brushed Stainless Right Offset Bottom Patch for Glass Door
Regular price
$194.17 CAD
Regular price
Sale price
$194.17 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0PF10RBS
Shipping Weight: 3.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Handing
Right Hand
Series
Offset
Type
Bottom
Overview
- Allows for 180º door swing — ideal for frameless glass doors
- Fits 3/8" or 1/2" (10 or 12 mm) glass
- Available left and right handed configurations

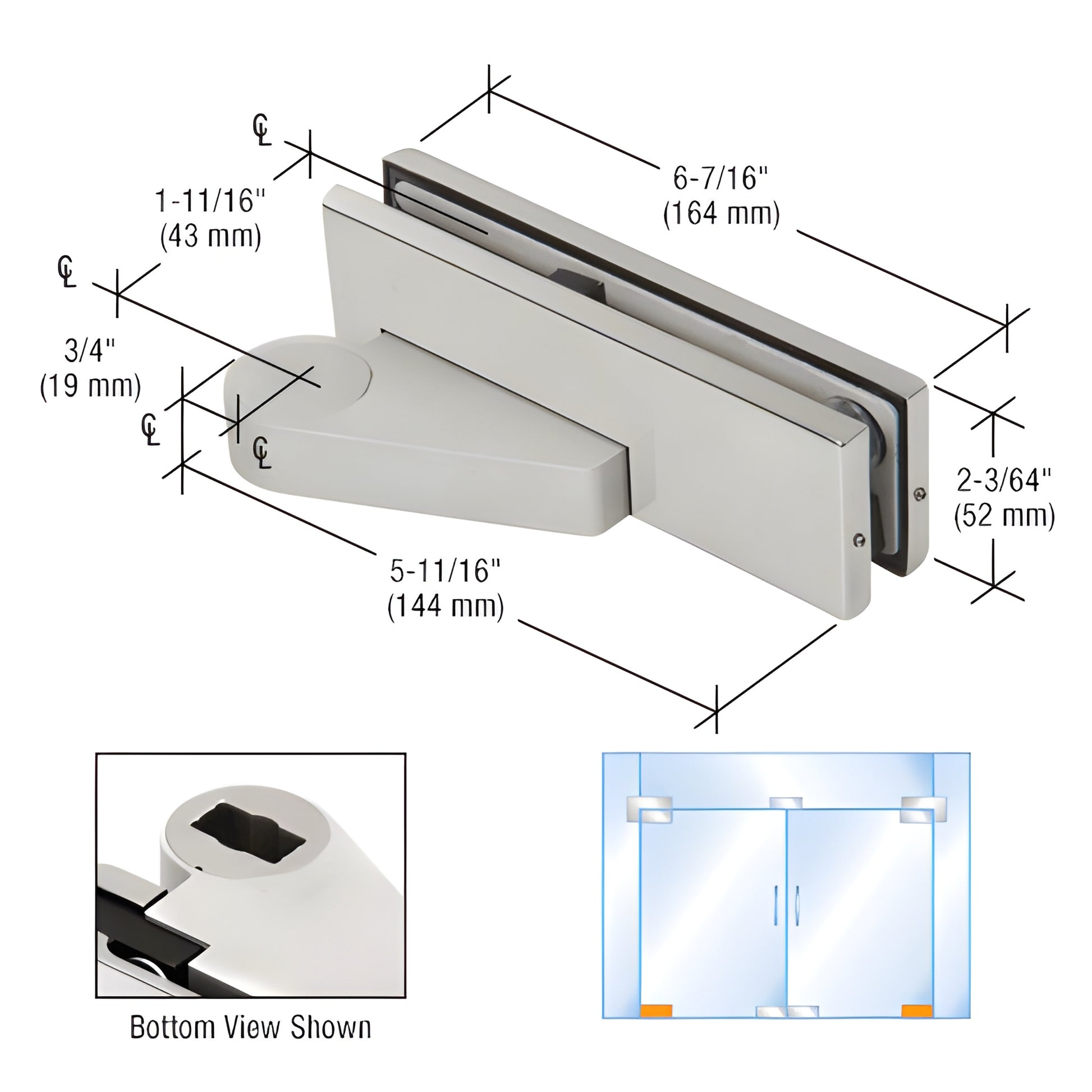

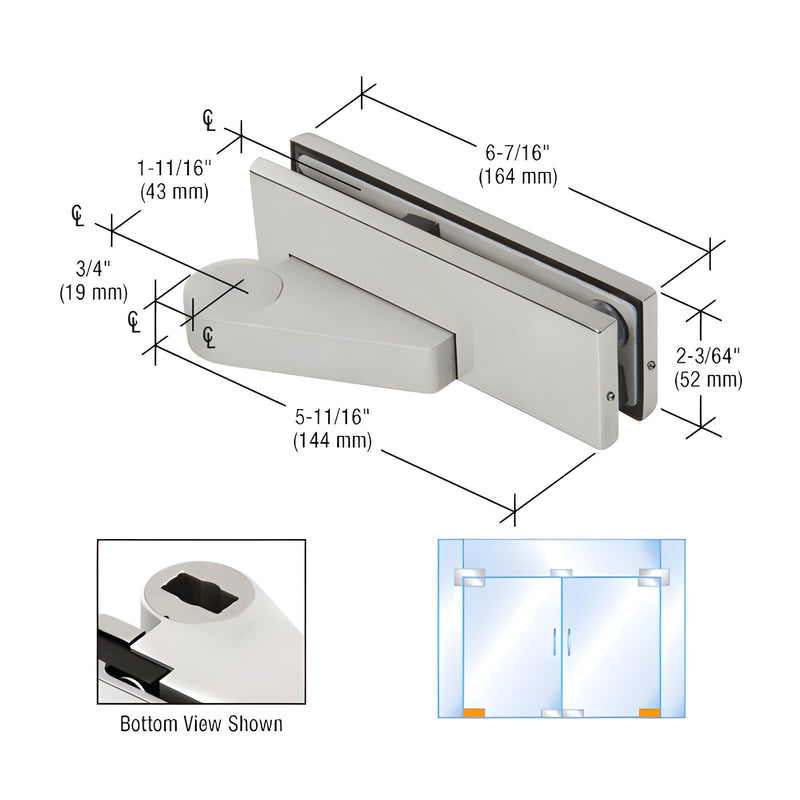

The CRL Bottom of Door Offset Patch Fitting (SKU: 0PF10RBS) provides a low-profile offset patch solution for frameless glass door installations. Designed to pair with CRL offset fittings and floor closers, this patch fitting enables smooth 180º door swing and is offered in brushed or polished stainless steel finishes. Glass fabrication templates and clear instructions are included for accurate installation.
INCLUDES:
- High density cast body
- Decorative cover plates in your choice of finish
- Gasket for 3/8" or 1/2" (10 or 12.7 mm) glass
- Template and installation instructions
SPECIFICATIONS:
For Use With:
- CRL8300 Series Floor Closers
- CRL8400 Series Floor Closers
- INT402 Bottom Free Swinging Pivot
- INT403 Adjustable Bottom Free Swinging Pivot
- INT406 Adjustable Bottom Free Swinging Pivot
Glass Fabrication Required:
One 3/4" (19 mm) diameter hole and corner notch
Comes With: Template and instructions
Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more details.
Why choose this offset patch fitting? Durable high-density cast construction, compatibility with CRL floor closers and pivots, and included fabrication templates make it a reliable choice for commercial and residential glass door projects.
Contact CRL to order SKU 0PF10RBS or for technical assistance—available now.
Specifications
CAD Drawings - dwg
