CRL Brushed Stainless Right Offset Top Patch Fitting for Glass Doors
Item# 0PF20RBS
Shipping Weight: 2.3 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.3 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Handing
Right Hand
Series
Offset
Type
Top
- For 3/8" or 1/2" (10 or 12 mm) glass
- Allows 180º door swing
- Left- and right-handed configurations
- Compatible with CRL 3/4" (19 mm) offset arm bottom door rails with no alterations
- Use with monolithic tempered glass

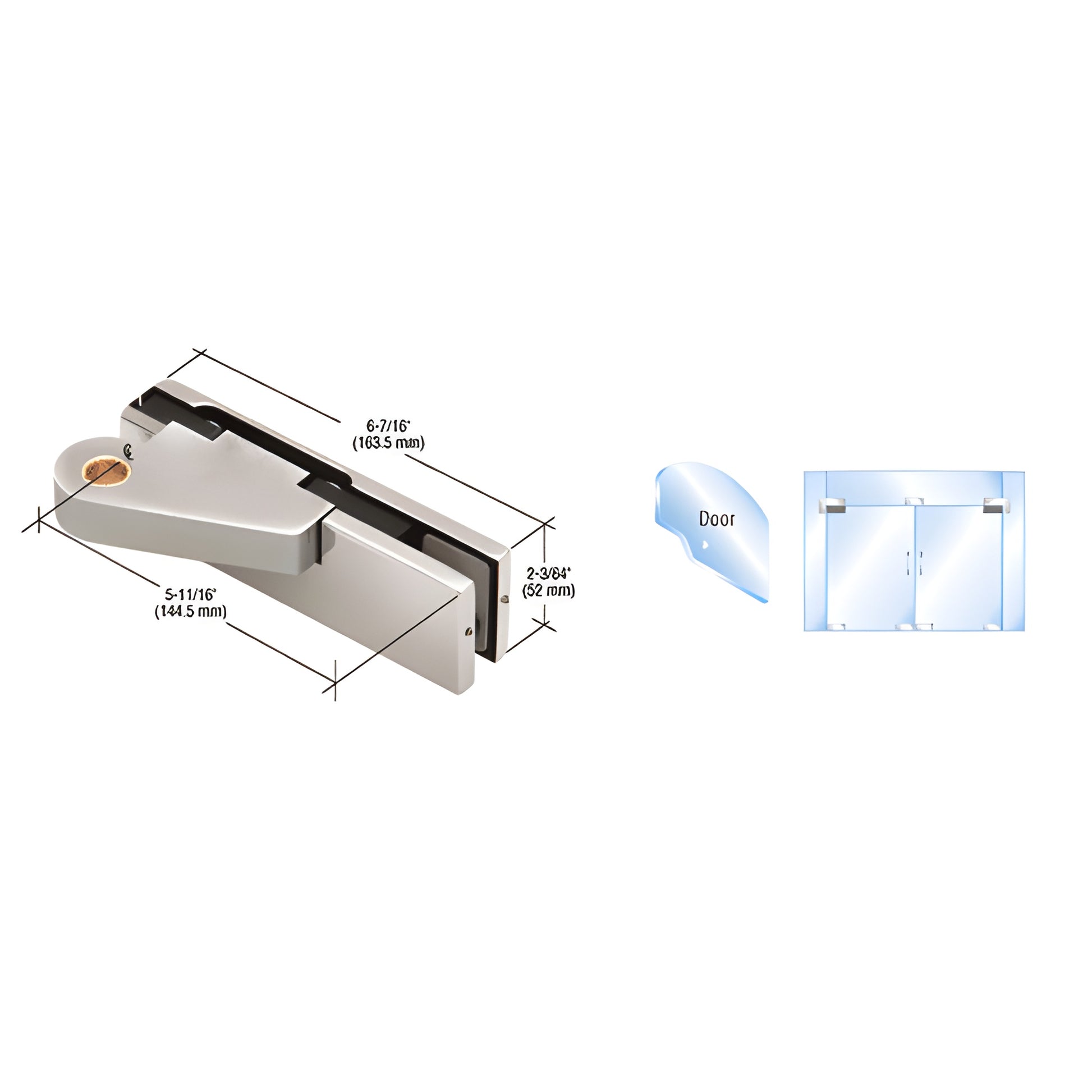

CRL Top of Door Offset Patch Fitting (SKU: 0PF20RBS) — engineered for offset-arm bottom door rails and compatible with other offset patch fittings. Provides a full 180º door swing and is available in left- or right-hand configurations. Choose brushed or polished stainless steel finish for durable, professional glass door hardware.
INCLUDES:
- High density cast body
- Cover plates (finish of your choice)
- Gasket for 3/8" or 1/2" (10 or 12.7 mm) glass
- Template and instructions
SPECIFICATIONS — For use with:
- 0PF40 transom patch fittings
- 1NT401 surface mounted top pivot
- 1NT405 threaded top pivot
GLASS FABRICATION REQUIRED:
- One 3/4" (19 mm) diameter hole and corner notch
COMES WITH: Template and instructions
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images are actual or close representations; colors may vary by monitor settings.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Ideal for commercial glass doors and frameless shower or storefront applications where reliable 180º swing and offset compatibility are required. Order SKU 0PF20RBS now or contact us for volume pricing and technical support.
CAD Drawings - dwg
