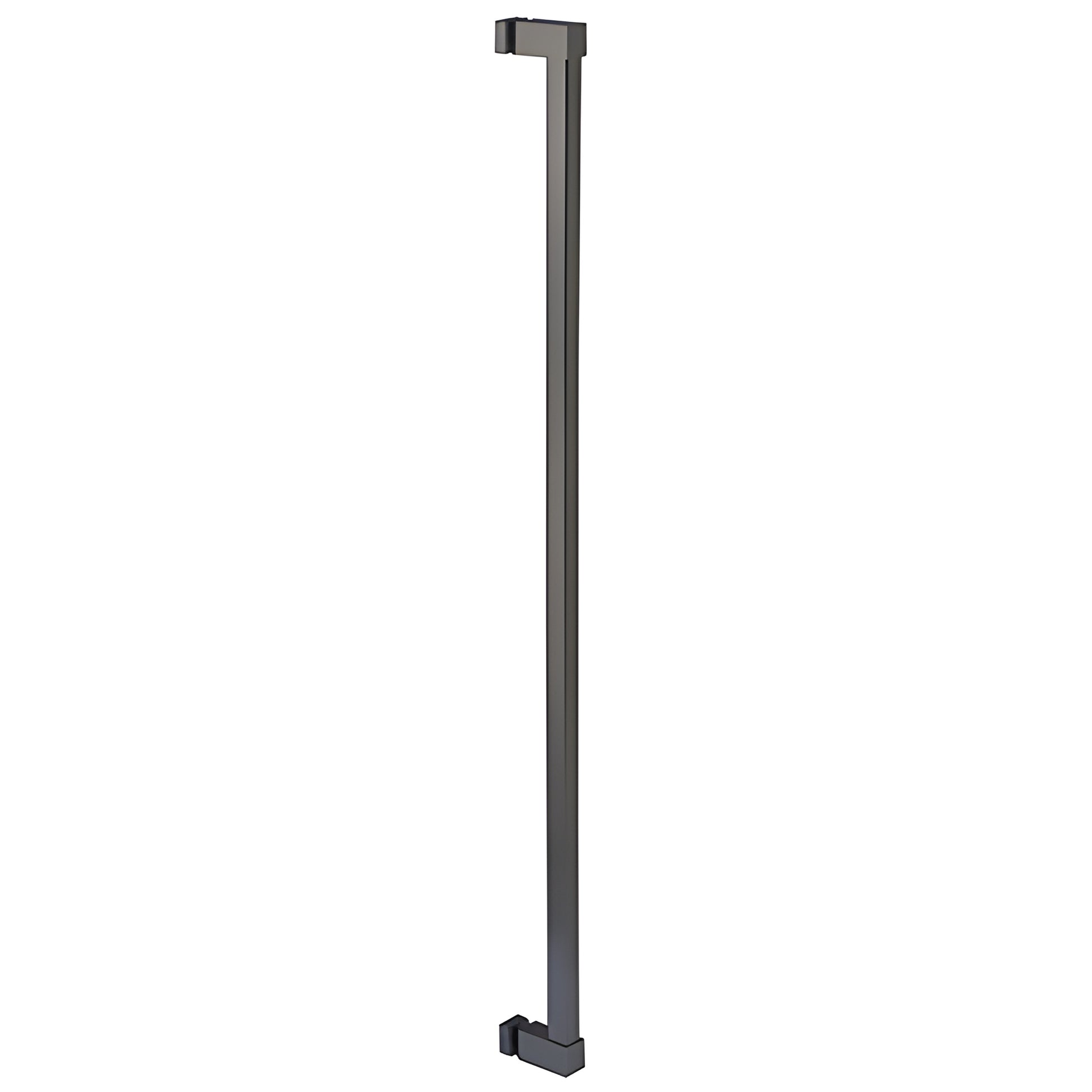

CRL Matte Black Single Sided Cut To Size Glass Mounted Square Ladder Style Pull Handle with Square Mounting Posts
Item # SQC42MBL
Finish (3)
-
Brushed Stainless Steel -
Matte Black -
Polished Stainless Steel
Overview
| SKU | SQC42MBL |
|---|---|
| Sold As | 1 Each |
| Diameter | 1-1/4 in. (32 mm) |
| Finish/Color | Matte Black |
| Glazing Thickness | 3/8 in. To 3/4 in. (10 mm To 19 mm) |
| Material | Stainless Steel |
| Mounting Hole Diameter | 5/8 in. (16 mm) |
| Mounting Type | Single Sided |
| Overall Length | 43 in. (1092 mm) |
Description
- Single Sided Handle You Cut to Size, Comes 43" (1092 mm) Overall Length
- Square Mounting Posts
- Use Monolithic Tempered Glass 3/8" to 3/4" (10 to 19 mm)
CRL Square Ladder Style Pull Handle-Single Sided are for glass mounting with supplied through-bolts. It is intended for use on doors made from 3/8" to 3/4" thick tempered glass. Stock size is 43" overall length and can be cut down per job specifications. The handle is constructed of 1" square stainless-steel tubing. Available in three standard finishes.
SPECIFICATIONS:
For Use With:
3/8" to 3/4" (10 to 19 mm) Tempered Glass
Construction:
1-1/4" (32 mm) Square Stainless Steel Posts
1" (25 mm) Square Stainless Steel Tubing Handle
43" (1092 mm) Overall Length to be Cut Down per Job Specifications.
Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
1 Each: 1/8" Allen Wrench
NOTE:
Click Here to view our Our Back-to-Back Ladder Pulls in all available sizes and finishes.
