Product Details
- Single Sided Handle You Cut to Size, Comes 43" (1092 mm) Overall Length
- Square Mounting Posts
- Use Monolithic Tempered Glass 3/8" to 3/4" (10 to 19 mm)

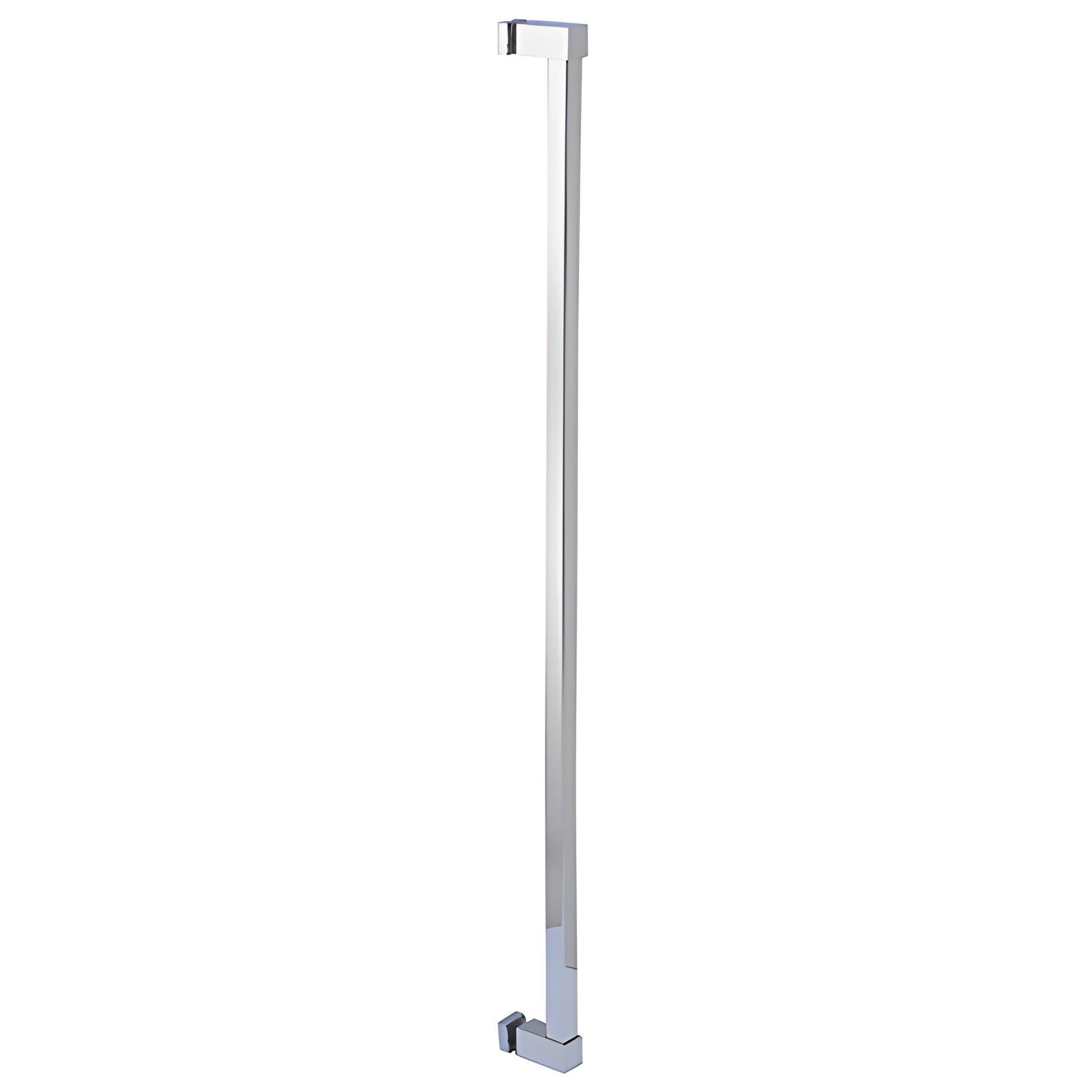

CRL Square Ladder Style Pull Handle-Single Sided are for glass mounting with supplied through-bolts. It is intended for use on doors made from 3/8" to 3/4" thick tempered glass. Stock size is 43" overall length and can be cut down per job specifications. The handle is constructed of 1" square stainless-steel tubing. Available in three standard finishes.
SPECIFICATIONS:
For Use With:
3/8" to 3/4" (10 to 19 mm) Tempered Glass
Construction:
1-1/4" (32 mm) Square Stainless Steel Posts
1" (25 mm) Square Stainless Steel Tubing Handle
43" (1092 mm) Overall Length to be Cut Down per Job Specifications.
Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
1 Each: 1/8" Allen Wrench
NOTE:
Click Here to view our Our Back-to-Back Ladder Pulls in all available sizes and finishes.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
