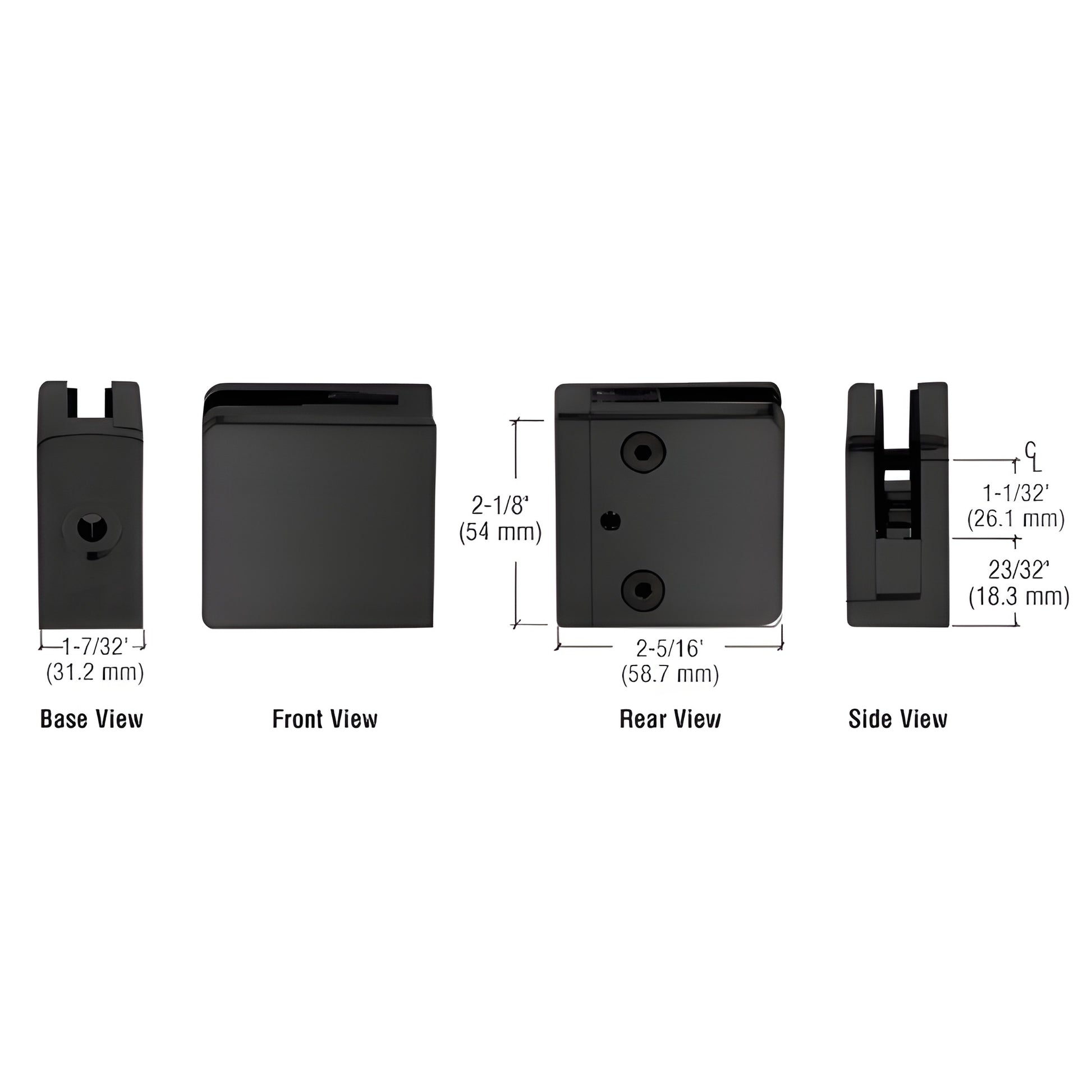

CRL Z-Series Matte Black SS Square Flat-Base Glass Clamp 1/2"

• For 1/2" (12 mm) glass thickness
• Replacement gaskets available: Cat. No. Z12SG
• Ideal for mezzanines, partitions, railings and windbreaks
• Use with monolithic tempered glass
• Steel pin included for additional glass support
• Custom painted finishes available upon request

This CRL Z-Series Square Type Flat Base Glass Clamp (SKU Z912MBL) secures 1/2" (12 mm) monolithic tempered glass to square tubing or other flat surfaces. Constructed from zinc or stainless steel, the clamp is engineered for railing systems, mezzanine guards, partitions and exterior windbreaks where a low-profile, flat-base glass clamp is required.

For securing the Z-Clamp to thin-wall tubing (less than 1/8"), use CRL’s ZB0LT Socket Head Cap Bolt with ZRNUT Rivet-Nut. Drill a 17/32" (13.5 mm) hole, then install the rivet-nut using the 34604 Heavy-Duty Thread Insert tool with the 34618 5/16" mandrel and nosepiece.

NOTE: A 9/16" (14.3 mm) hole is required if using the included steel pin for additional glass support.

SPECIFICATIONS:
Glass Thickness: 1/2" (12 mm)
Base Design: Flat, square-type
For Use With: Square tubing or other flat surfaces (railings, partitions, mezzanines, windbreaks)
Material: Zinc or stainless steel. For exterior durability, use stainless steel or powder-painted zinc.
Glass Fabrication Notes:

• For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) thick glass: 1/2" (12 mm) diameter hole required if using provided steel pin.
• For 1/2" (12 mm) thick glass: 9/16" (14 mm) diameter hole required if using provided steel pin.

Includes: Rubber gaskets, steel pin (optional use) with grommet
Replacement Hardware: CRL ZCS5X15SS replacement screws

Product Warning:
For interior and exterior applications, CRL recommends pinning each glass panel when the panel is not supported from the bottom edge to prevent slippage. Rubber gaskets and steel pins are provided with each clamp.
