CRL Z-Series Matte Black Radius Base SS Glass Clamp for 3/8"

• For 3/8" (10 mm) glass
• Replacement gaskets: Cat. No. Z38SG
• Use on mezzanines, partitions, railings and windbreaks
• Use monolithic tempered glass
• Steel pin available for additional glass support
• Custom painted finishes available upon request

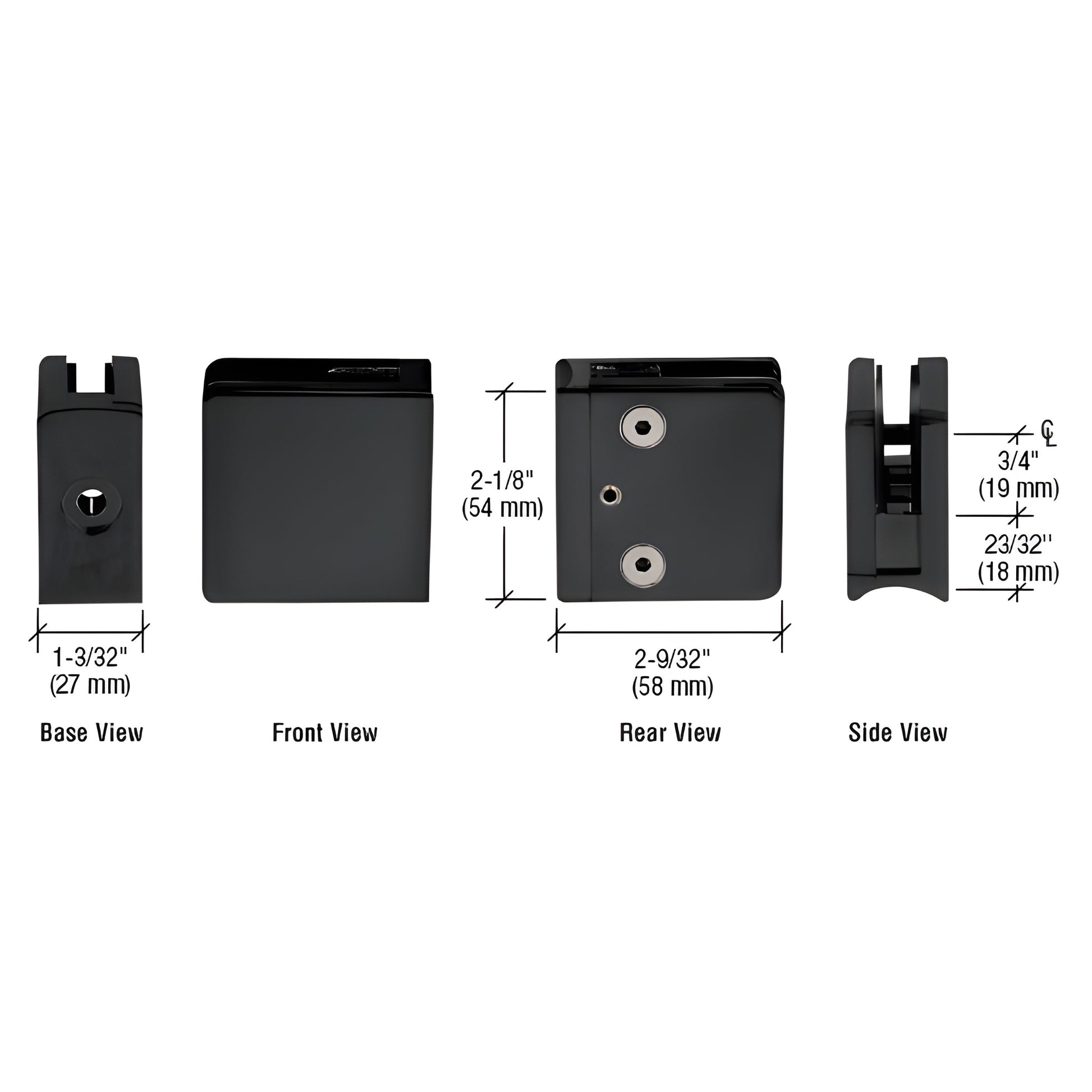

This CRL Z-Series Square Type Radius Base Glass Clamp (SKU: Z710MBL) fits 3/8" (10 mm) glass and is constructed in zinc or stainless steel. Ideal for partitions, railings, mezzanines and windbreaks, this radius-base clamp is designed for 2" (51 mm) diameter round tubing and provides secure, low-profile mounting for glass railing and partition systems.

For fastening to thin-wall tubing (less than 1/8"), use CRL ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. Drill a 17/32" (13.5 mm) hole and install the rivet-nut using the 34604 Heavy-Duty Thread Insert tool with the 34618 5/16" mandrel and nosepiece.

NOTE: A 1/2" (12 mm) hole is required if using the included steel pin for additional glass support.

SPECIFICATIONS
Glass Thickness: 3/8" (10 mm) compatible (also supports 6–12 mm ranges where applicable).
Base Design: Radius, square-type.
For Use With: 2" (51 mm) diameter round tubing only.
Material: Zinc or stainless steel. Stainless steel or powder-painted zinc recommended for exterior durability.
Glass Fabrication: For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) glass: 1/2" (12 mm) hole required for steel pin use. For 1/2" (12 mm) glass: 9/16" (14 mm) hole required for steel pin use.
Includes: Rubber gaskets and steel pin with grommet.
Replacement Hardware: CRL ZCS5X15SS replacement screws.
