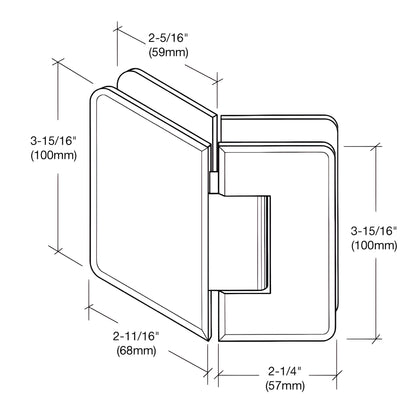

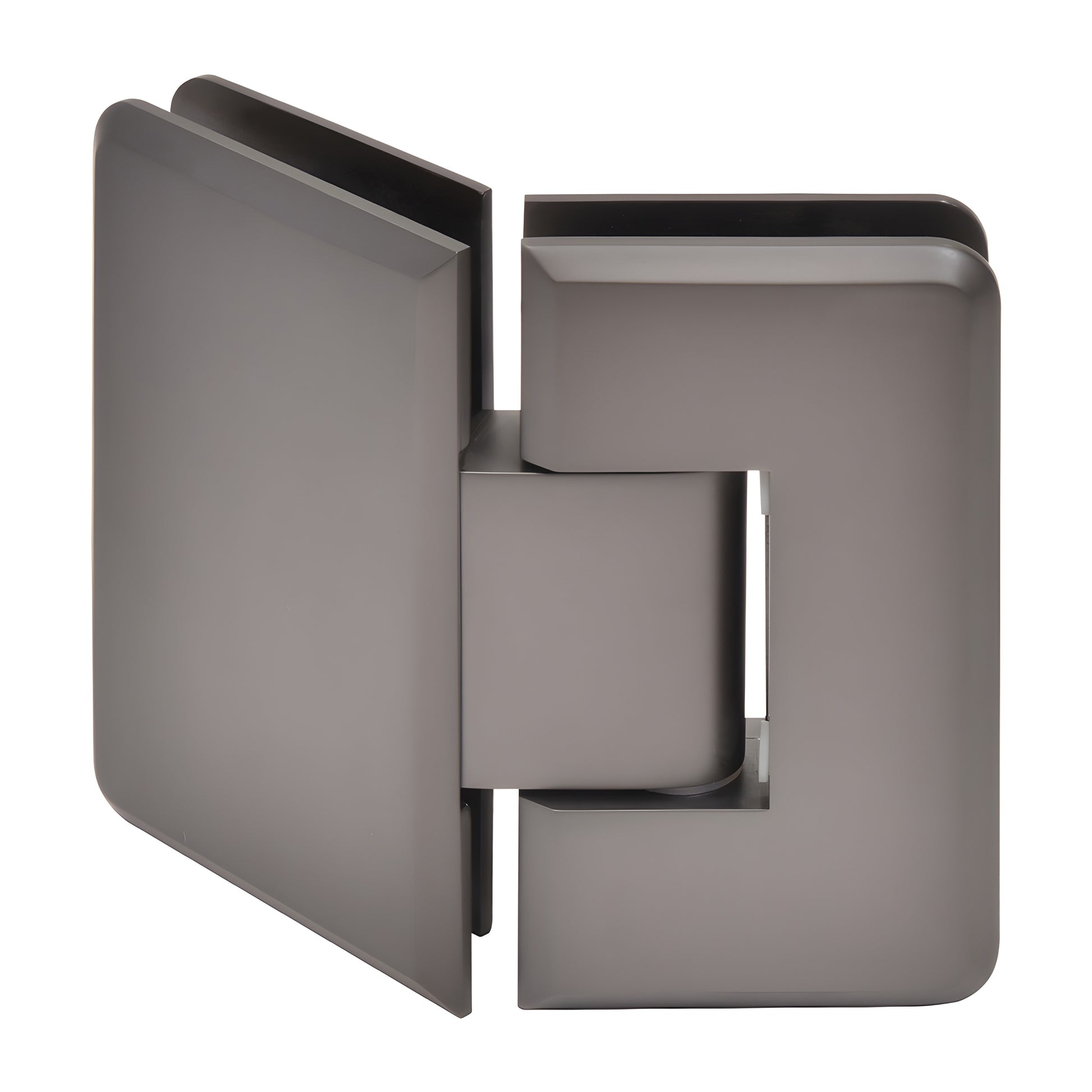

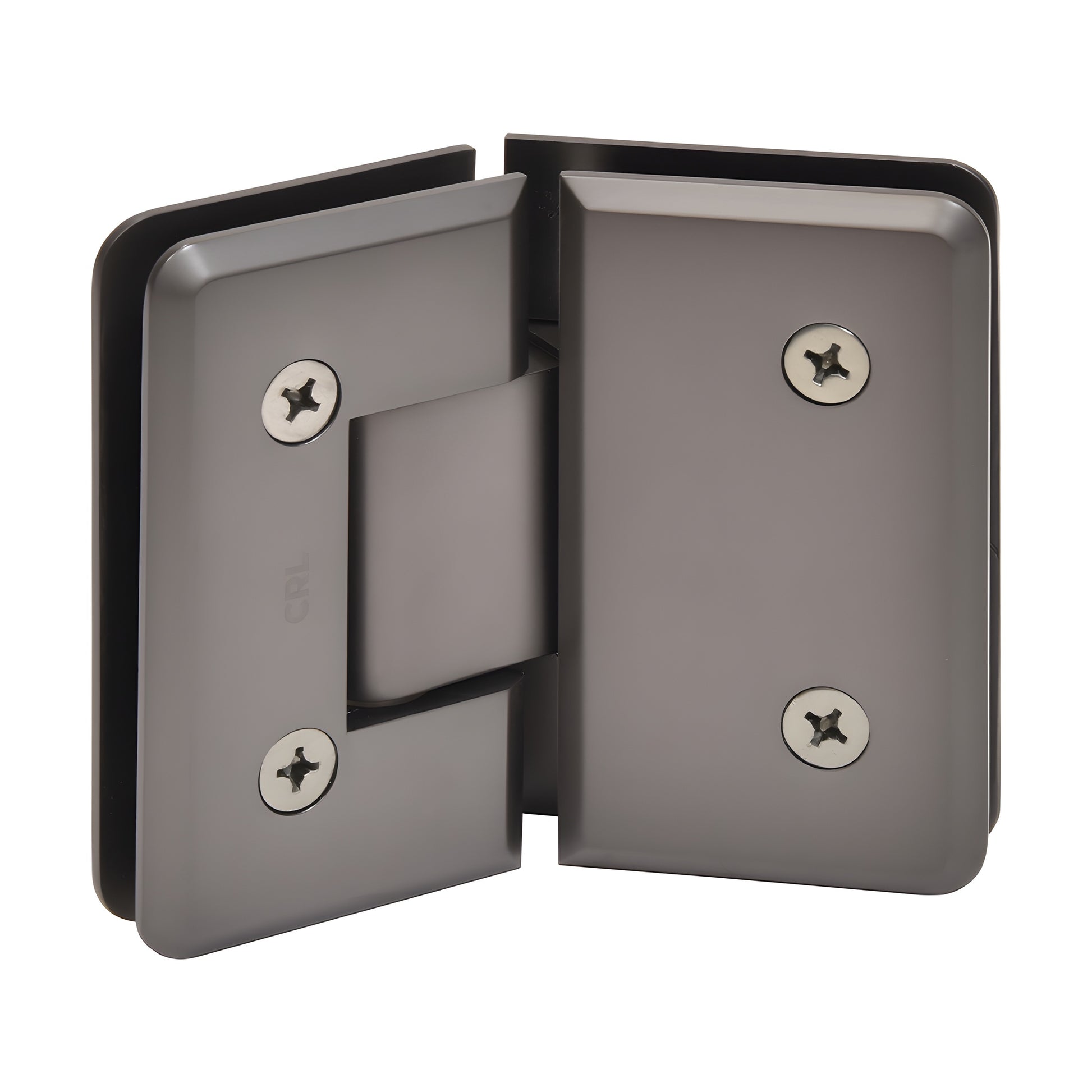

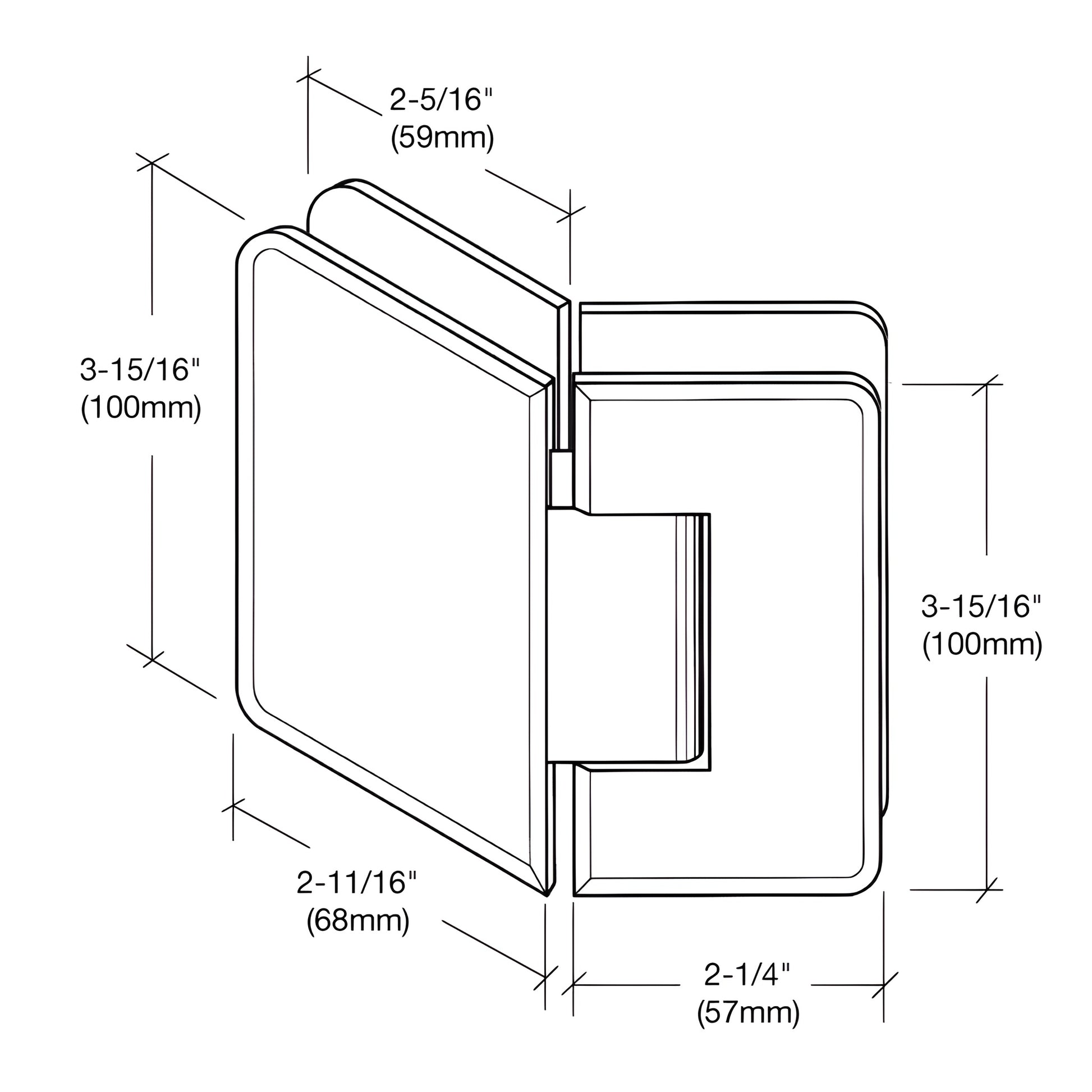

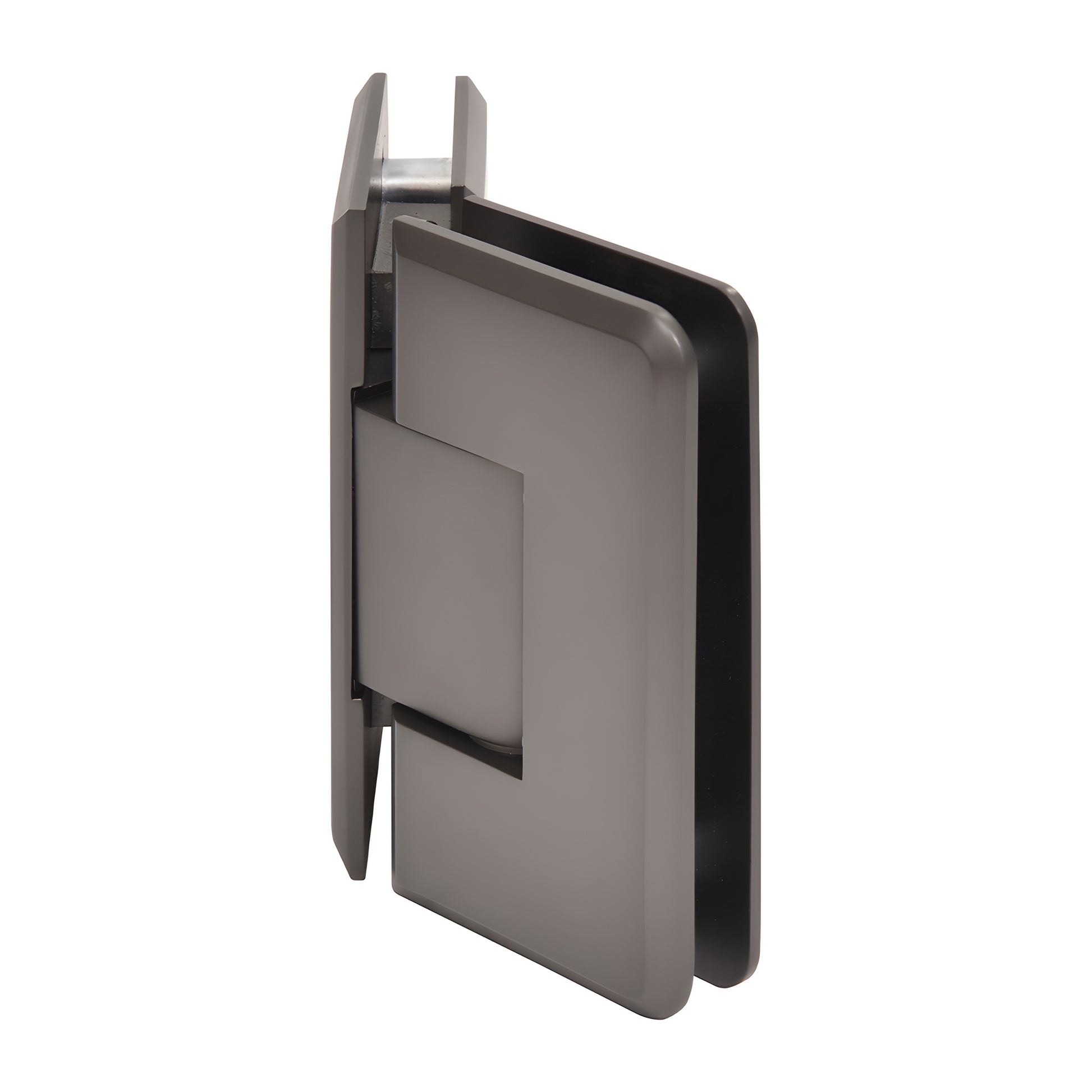

CRL Cologne 045 135° Matte Gunmetal Frameless Glass-to-Glass Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several beautiful finishes (custom finishes on request)
• 135º glass-to-glass hinge for angled shower door installs
• Use monolithic tempered safety glass

CRL Cologne Hinges—SKU C0L045MGM—are a solid-brass shower door hinge designed for wider, heavier doors where standard hinges fall short. Compared to Vienna hinges, Cologne Hinges feature radius corners and beveled edges for a sleek, low-profile look. Two internal steel pins provide mounting flexibility: leave pins in for CRL “mouse-ears” cut-outs or remove them for increased adjustability with CRL rectangular or compatible competitive cut-outs.

Reversible Pivot Pin (standard): Each hinge contains a reversible pivot pin with one side marked 90º and the other 85º. Standard models ship set to 90º; pre-set models ship at 85º for a 5º tighter closure into the shower interior. The pin can be rotated to change the setting.

Custom Pivot Pin: Custom pivot pins are available for off-angle walls (specify required angle up to 45º) to assist door closing where 5º is insufficient.

Load Capacity: Using two hinges with 3/8"–1/2" (10–12 mm) glass: up to 110 lbs (50 kg), max door width 36" (914 mm). Using three hinges with 3/8"–1/2" (10–12 mm) glass: up to 140 lbs (63 kg), max width 36" (914 mm).

Specifications:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90º in and 90º out (self-centering when within 15º of closed position)
Cut-Out: Cut-out required (except C0L092—requires cut-out for door plus two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Custom finishes and technical assistance available from CRL Technical Sales Department. Use only the template included with this hinge—CRL cut-out dimensions may differ from other brands.
