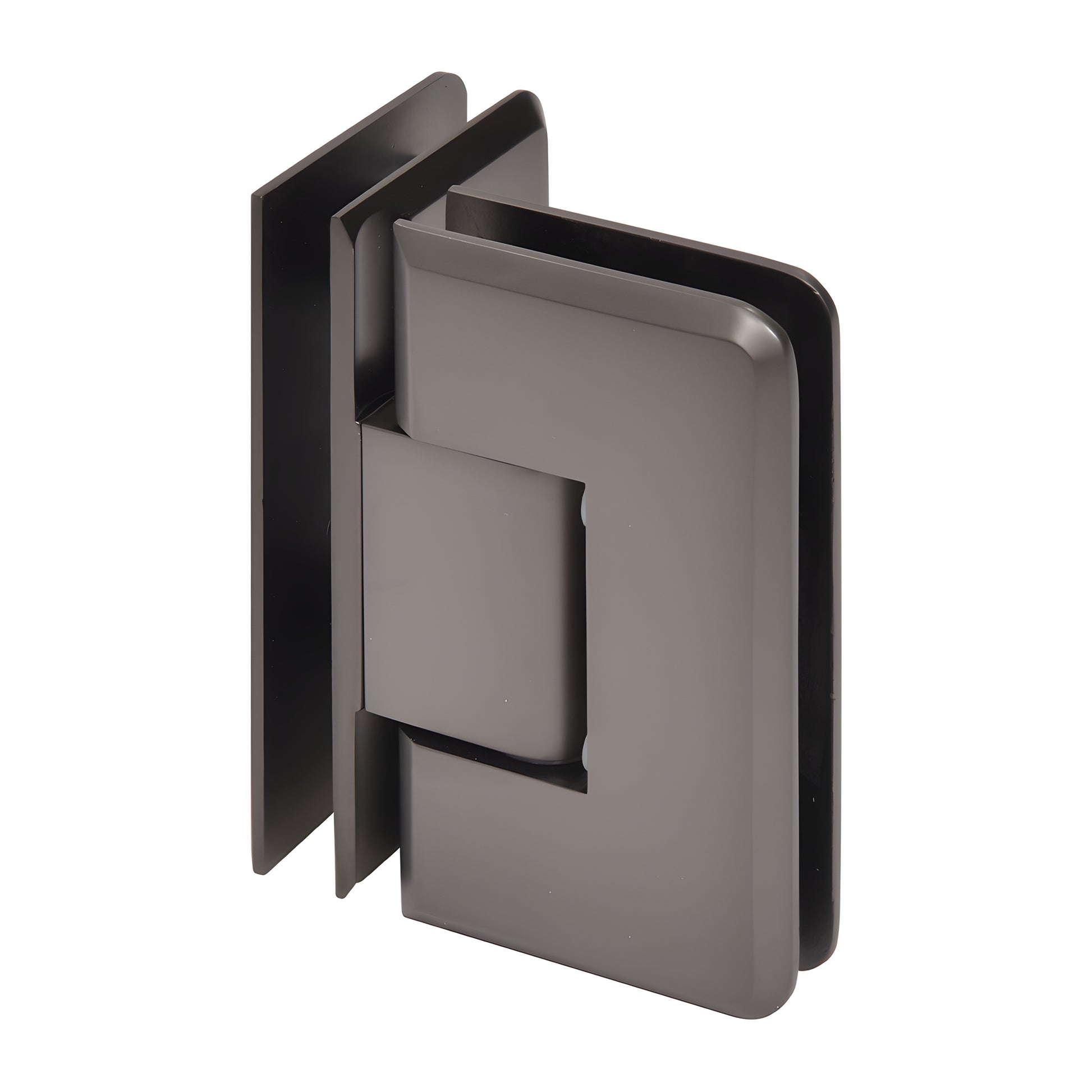

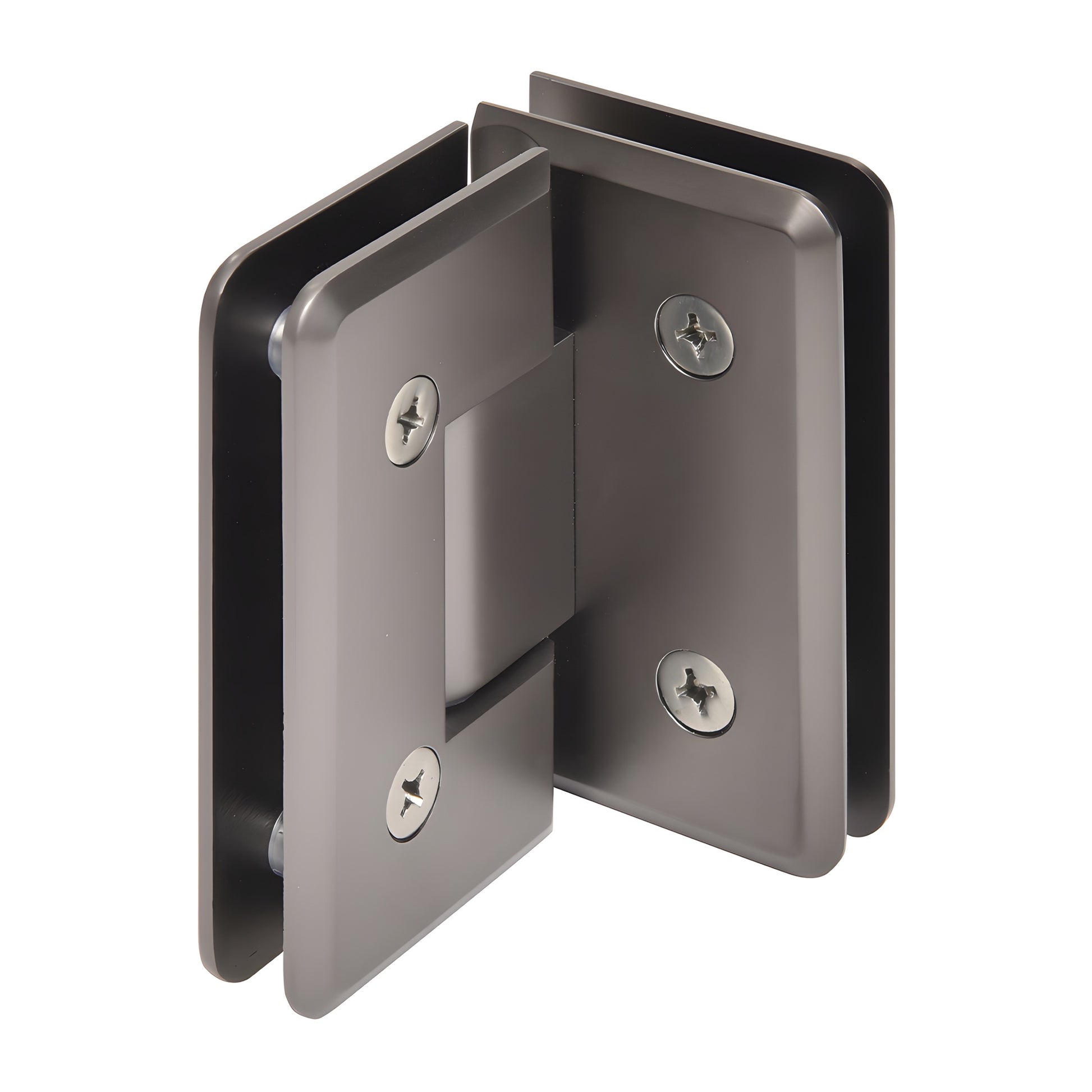

CRL Cologne 092 Matte Gunmetal 90° Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in multiple finishes, including custom finishes on request
• 90º glass-to-glass hinge — reversible pivot for 90º in and 90º out swing
• Use with monolithic tempered glass for shower door installations

CRL Cologne Hinges (SKU: C0L092MGM) are a solid-brass shower door hinge designed for wider, heavier frameless glass doors where standard hinges fall short. Similar to Vienna Hinges but with radius corners and beveled edges, Cologne Hinges deliver a sleek, modern appearance while providing increased strength and reliability for glass shower doors and frameless shower enclosures.

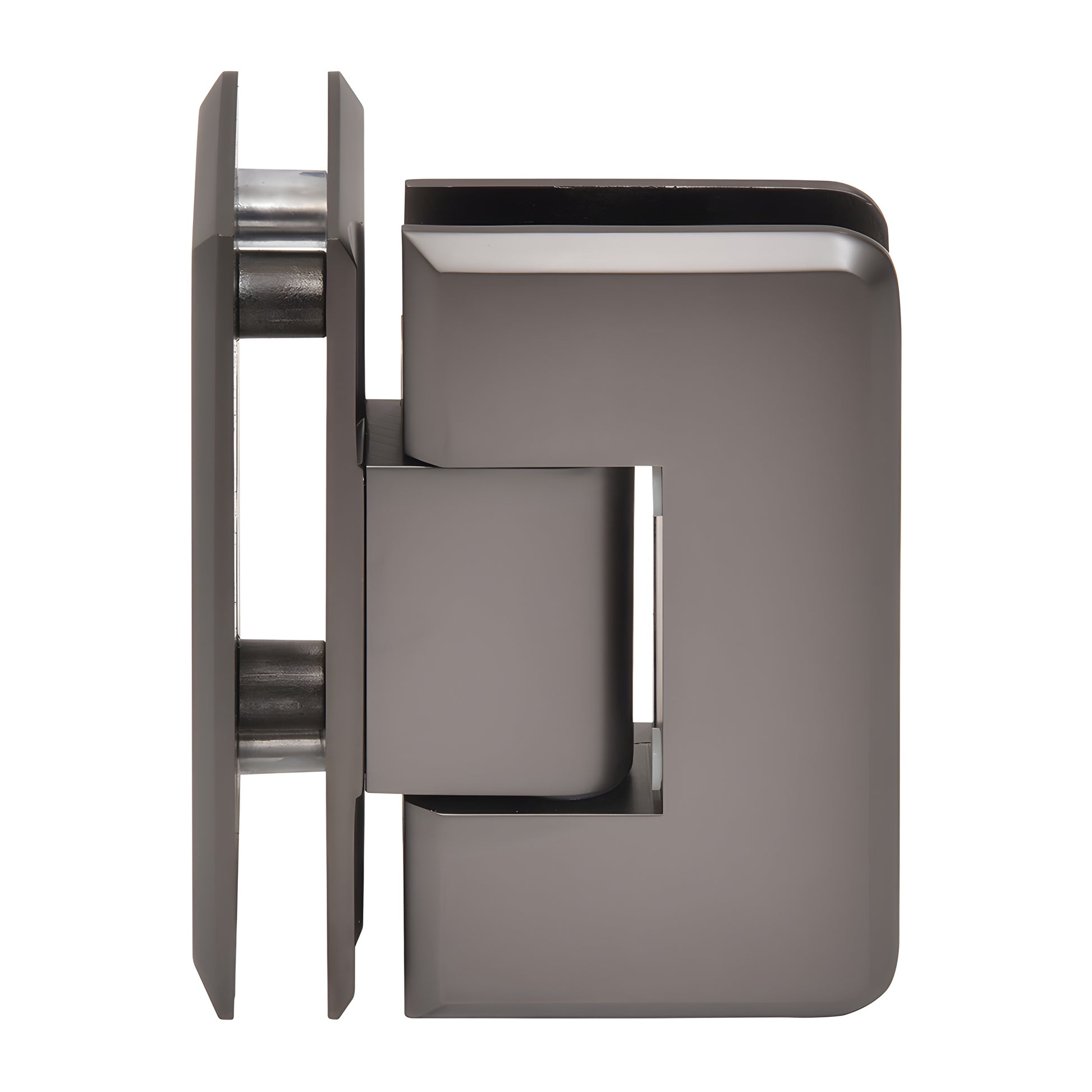

Two internal steel pins offer mounting flexibility: leave both pins in place for compatibility with CRL "mouse-ears" cut-outs (safer for that style), or remove the pins for greater adjustability and compatibility with CRL rectangular/square-corner cut-outs and some competitive templates.

Reversible & custom pivot options

• Standard reversible pivot pin: One side marked 90º (standard), opposite side marked 85º for a 5º tighter closure into the shower interior. Pin rotates to change setting.
• Custom pivot pins: Available up to 45º for off-angle walls or non-90º installations—specify angle when ordering for custom hinge solutions.

Load ratings & usage

• Two-hinge installation (3/8"–1/2" glass): supports up to 110 lbs (50 kg); maximum door width 36" (914 mm).
• Three-hinge installation (3/8"–1/2" glass): supports up to 140 lbs (63 kg); maximum door width 36" (914 mm).

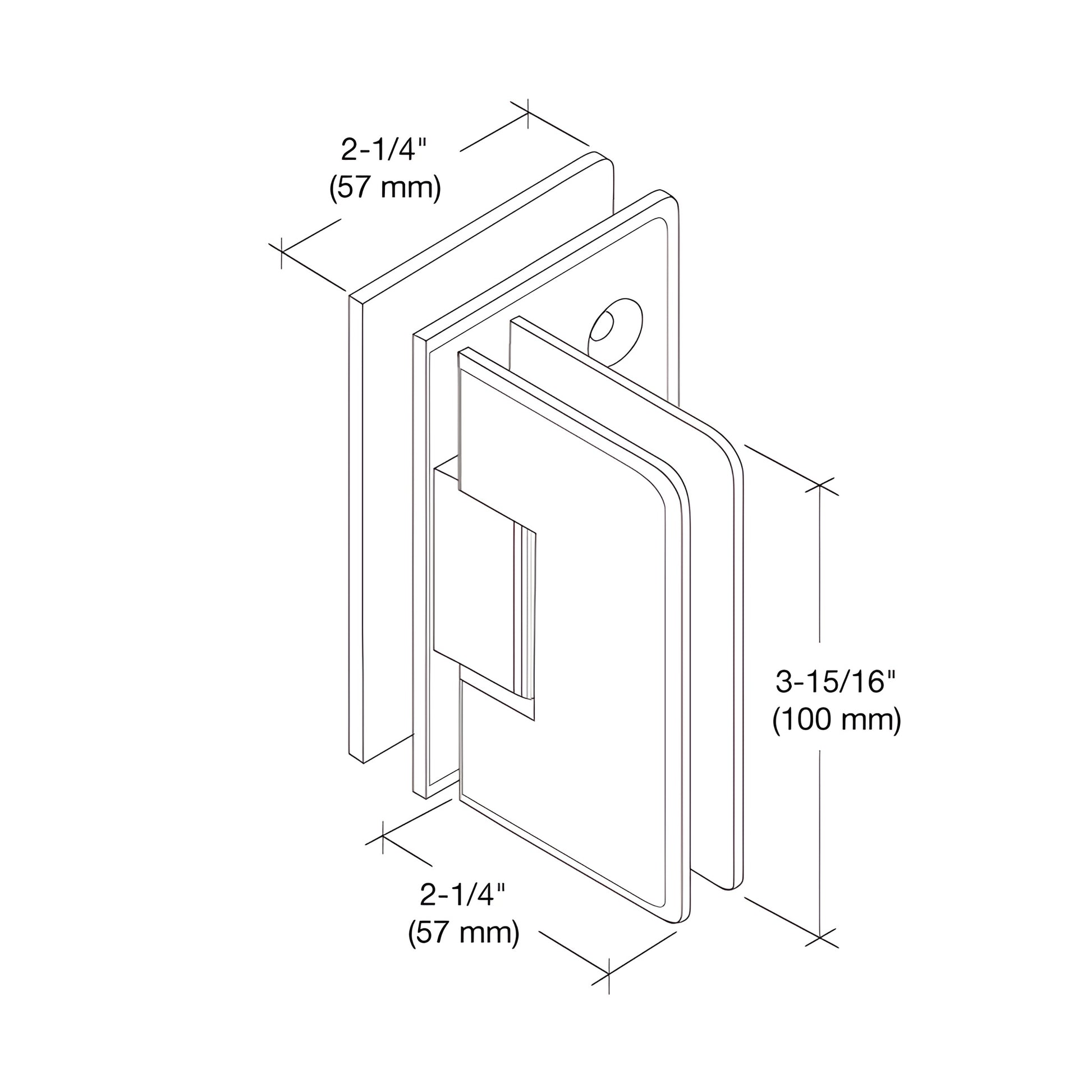

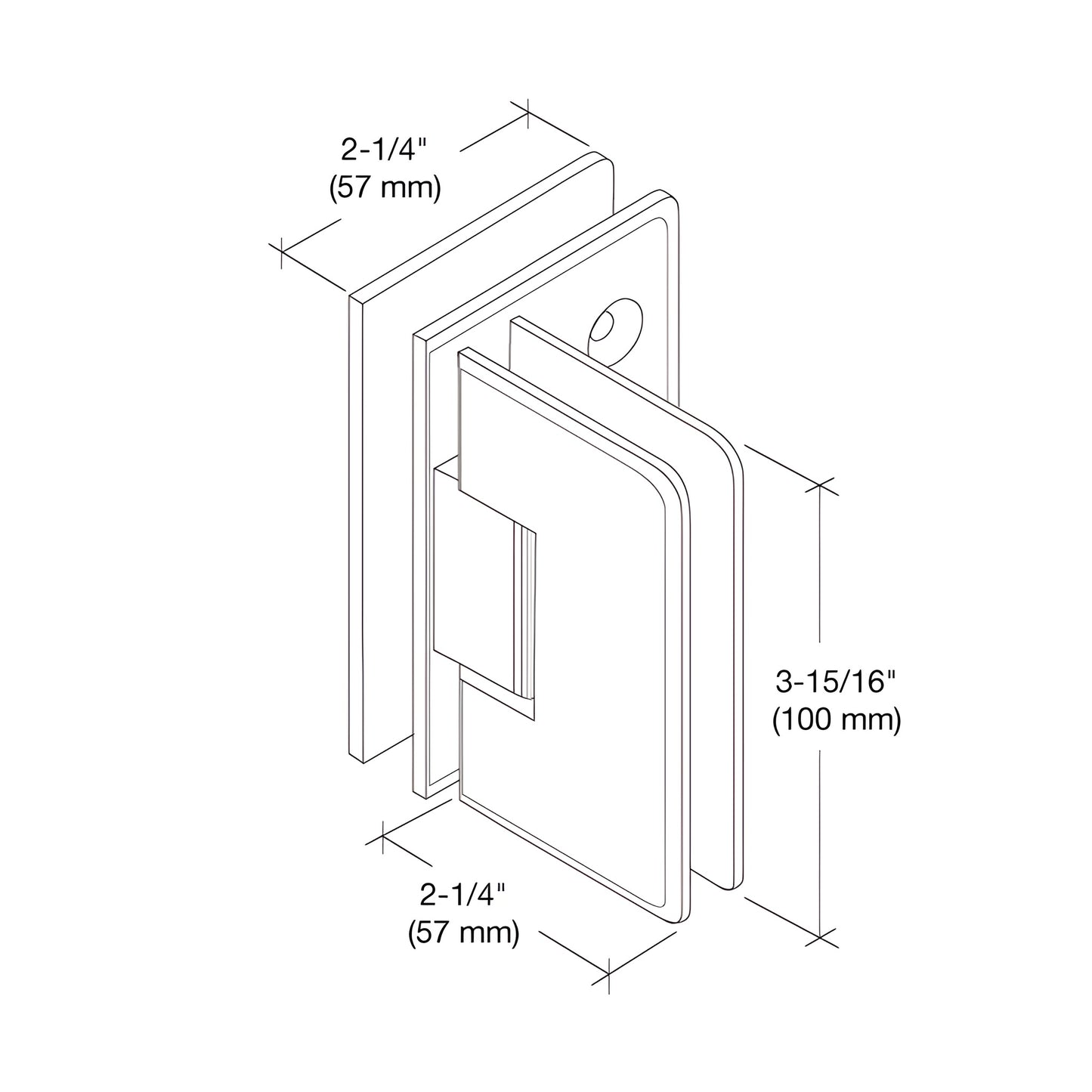

Specifications

• Glass thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
• Construction: Solid brass
• Hinge swings: 90º in and 90º out
• Closing type: Self-centering within 15º of closed position
• Cut-out required: Except C0L092 — requires cut-out for door plus two holes for fixed panel
• Includes: Gaskets, screws, and glass fabrication dimensions
• Maximum clamping screw torque: 60 lbf·in (677.9 cN·m)
