Product Details
- Square Corner Clamps Match Configuration of Matches Configuration of Our Melbourne, Geneva, Concord, Vienna, Cardiff, and Senior Cardiff Series Hinges
- For 5/16" to 1/2" (8 to 12 mm) Glass
- Can Be Used with the CRL All Glass Restroom Partition System
- Use Monolithic Tempered Glass

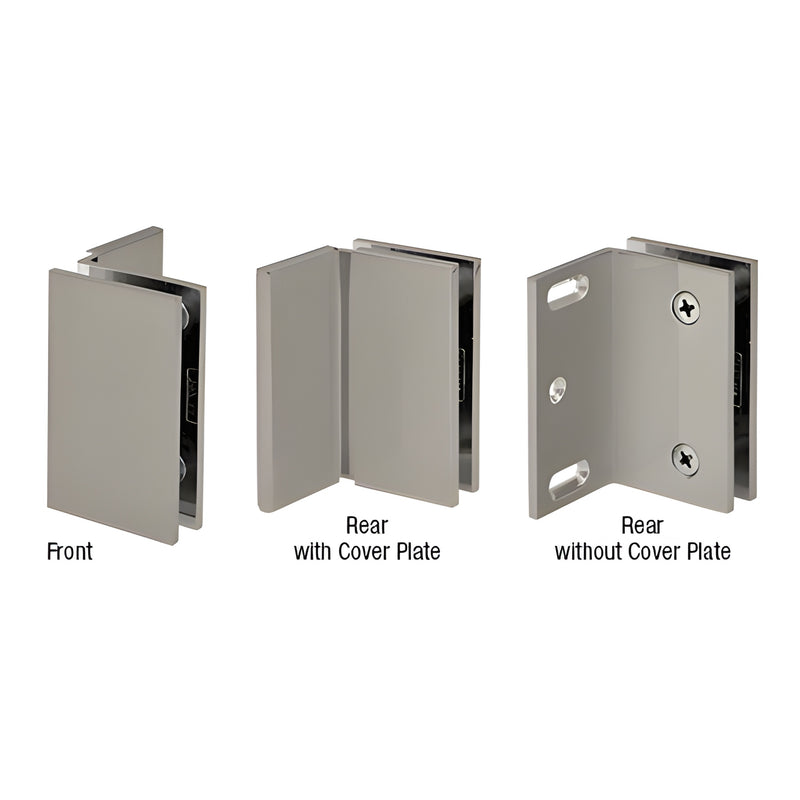

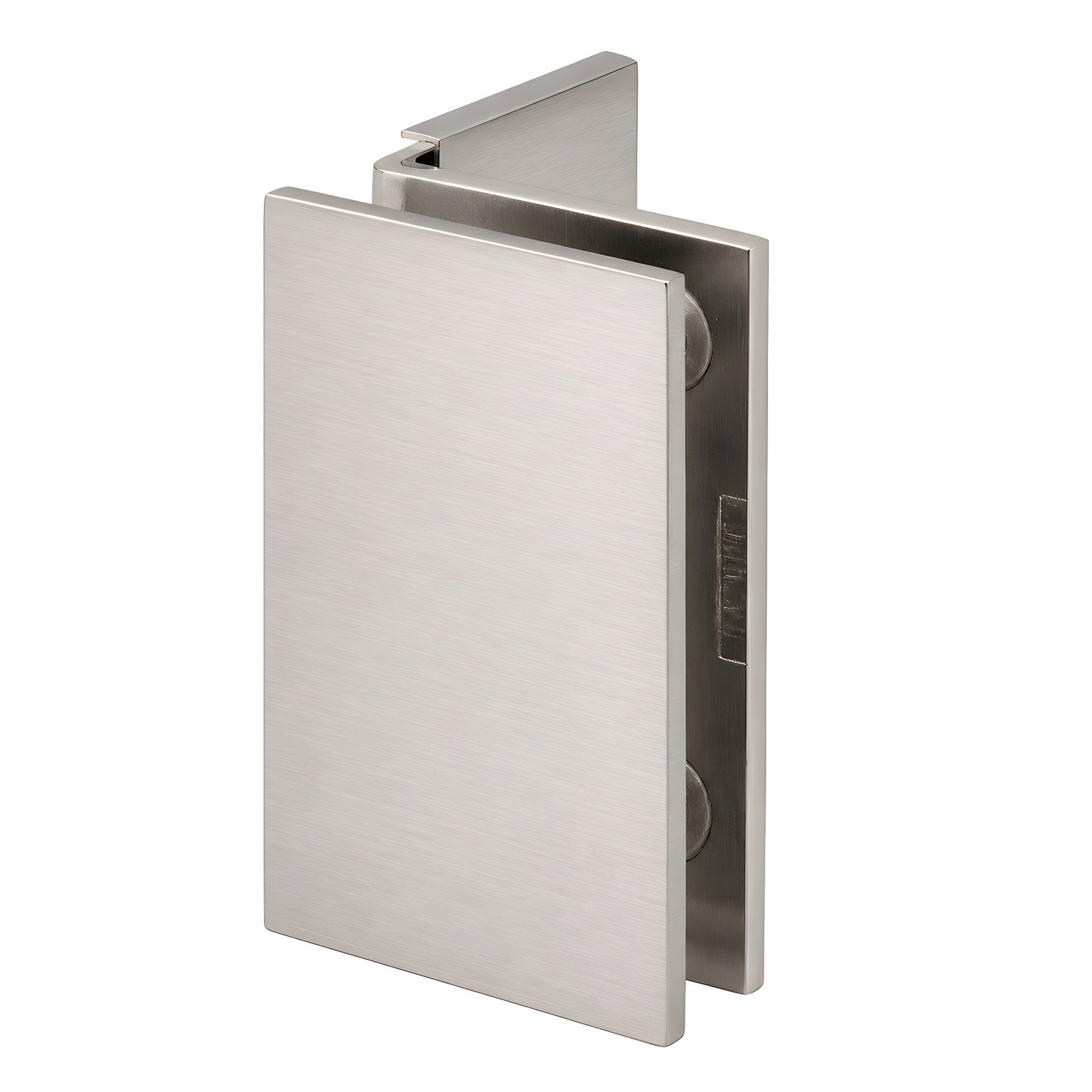

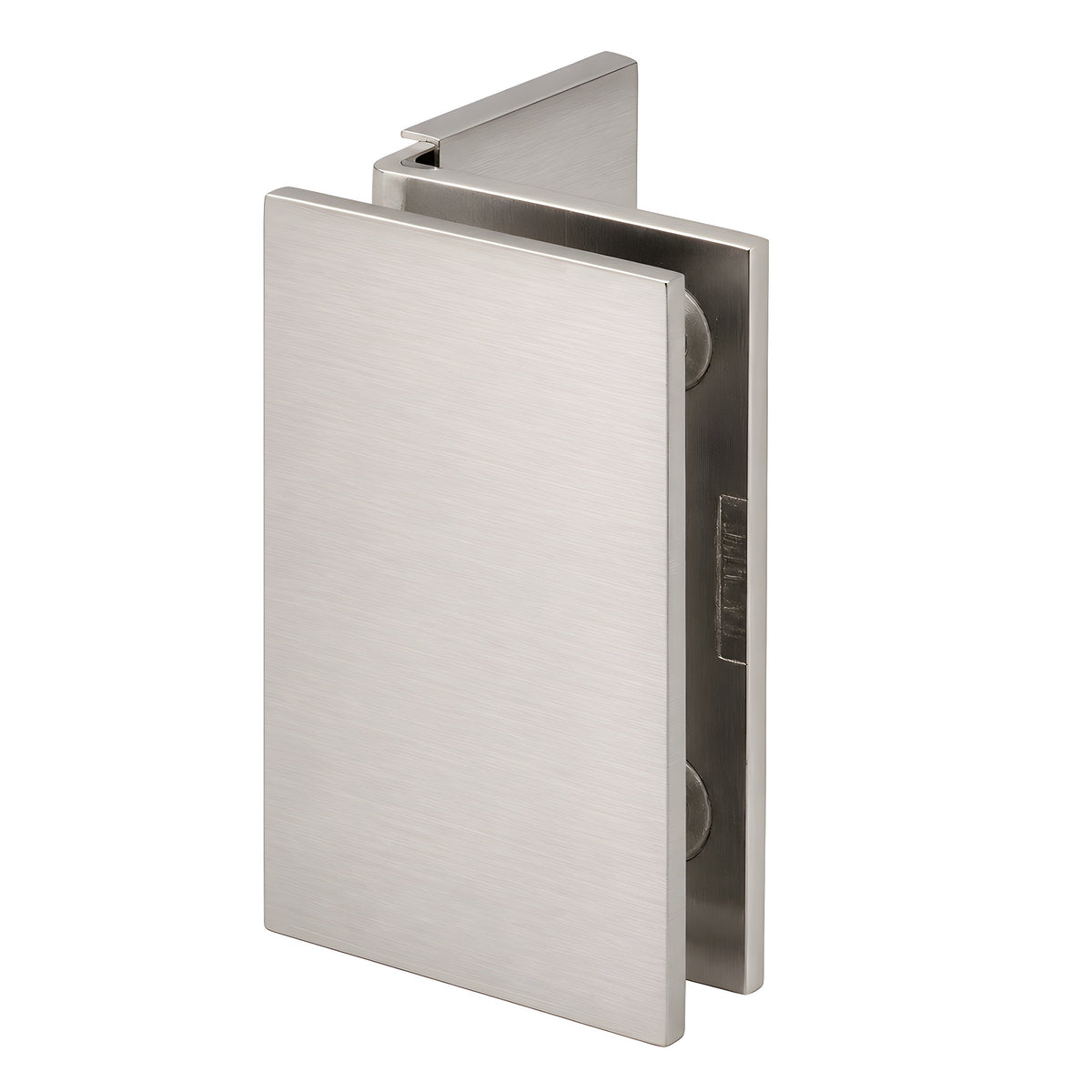

CRL Melbourne Series Wall Mount Brackets are designed to work with 5/16" to 1/2" (8 to 12 mm) thick glass. Can also be used as a horizontal shelf bracket. They match the configuration of many of our most popular hinge and clamp series. They feature square corners and edges in several decorator finishes. Mounting screws are not visible. A truly stylish way to attach glass to walls.
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets and Mounting Screws Hole Diameter
Required: Two 3/4" (19 mm) Holes Per Panel
