Product Details
- Extruded with Built-In Camber for Even Screen Tension
- .026" (.66 mm) Wall Thickness
- Individually Polywrapped Stock Lengths
- Three Finishes to Choose From

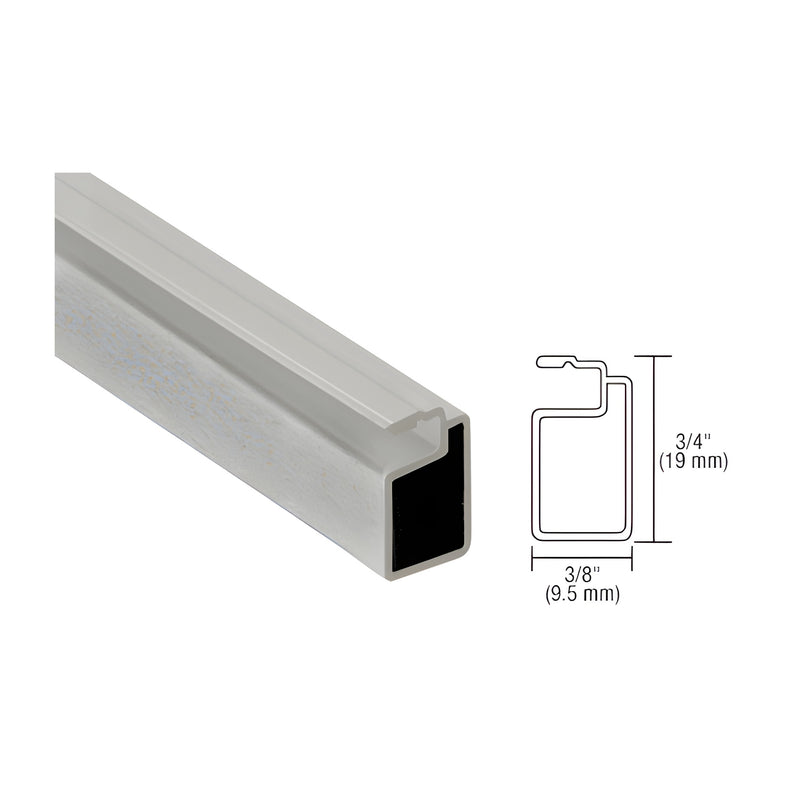

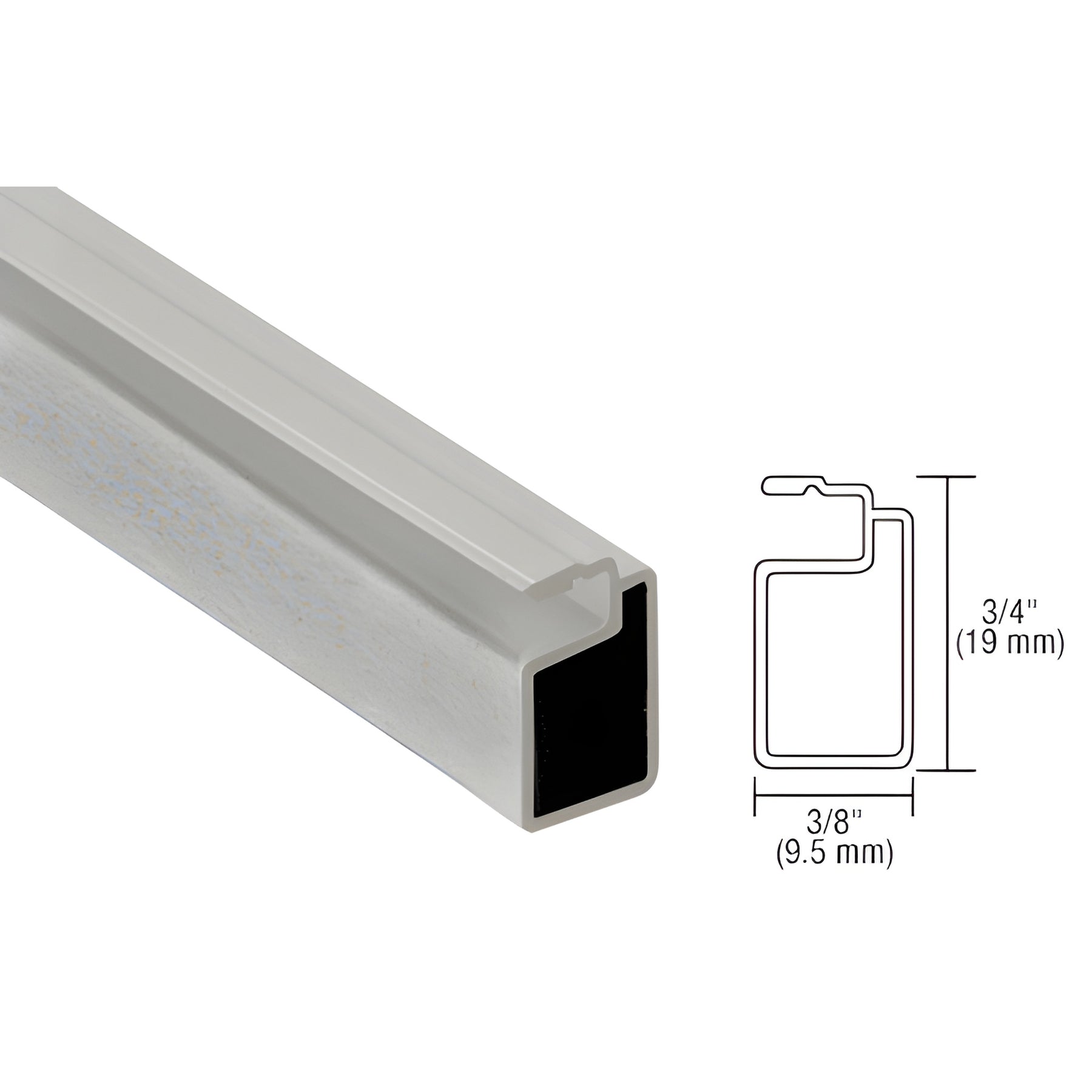

Box-type extruded .026 mil (.66 mm) thickness Frame uses our WSPC106 Mitered Corner or our special SWSC38A Square Cut Corners and our .150" size Spline. Lengths are extruded with built-in camber (slightly bowed) for even screen tension.
SPECIFICATIONS:
Material: Extruded Aluminum
Wall Thickness: .026" (.66 mm)
Uses Spline Size: .150" (3.8 mm)
Uses Corners: WSPC106 for Mitered Corners; SWSC38A for Square Cut Corners
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
