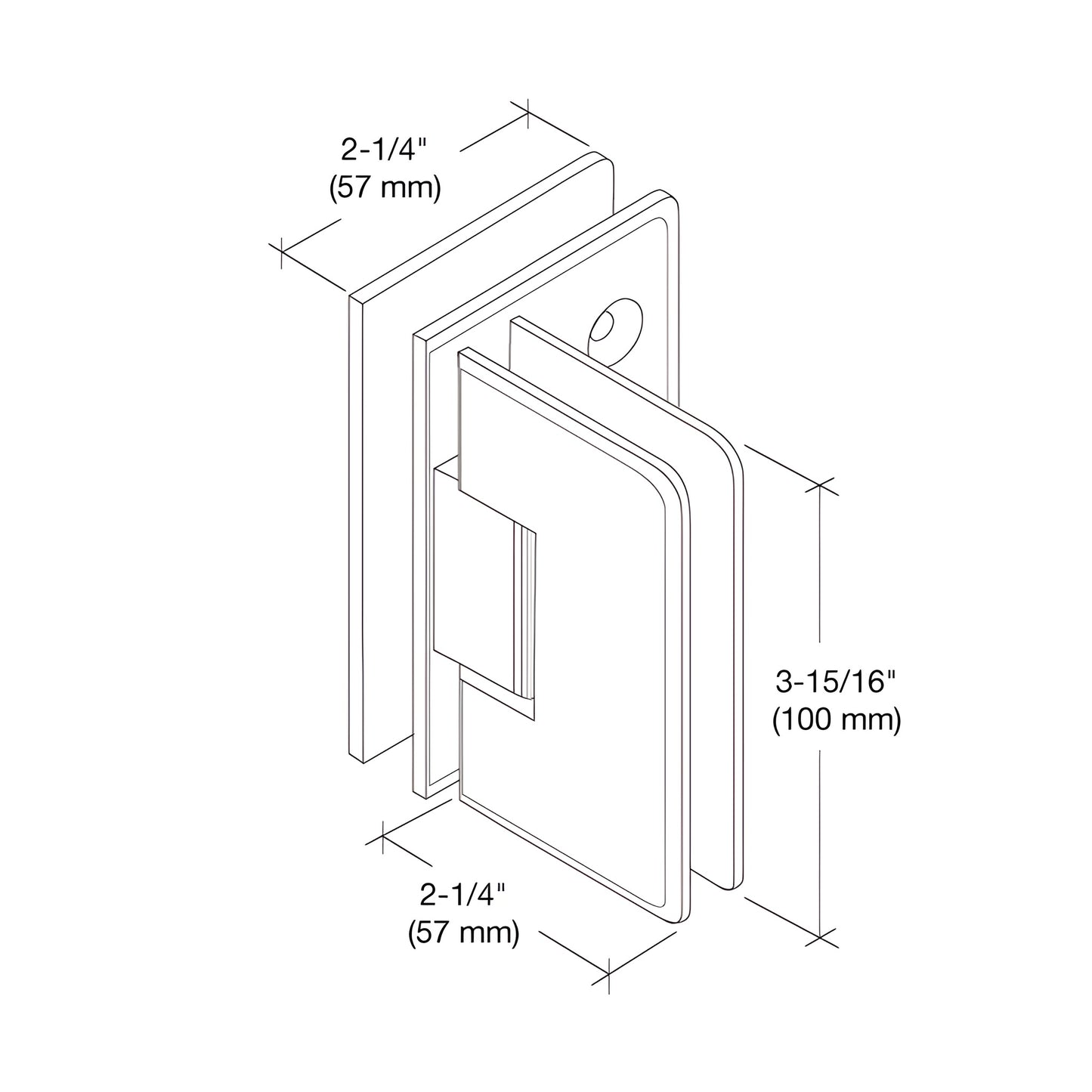

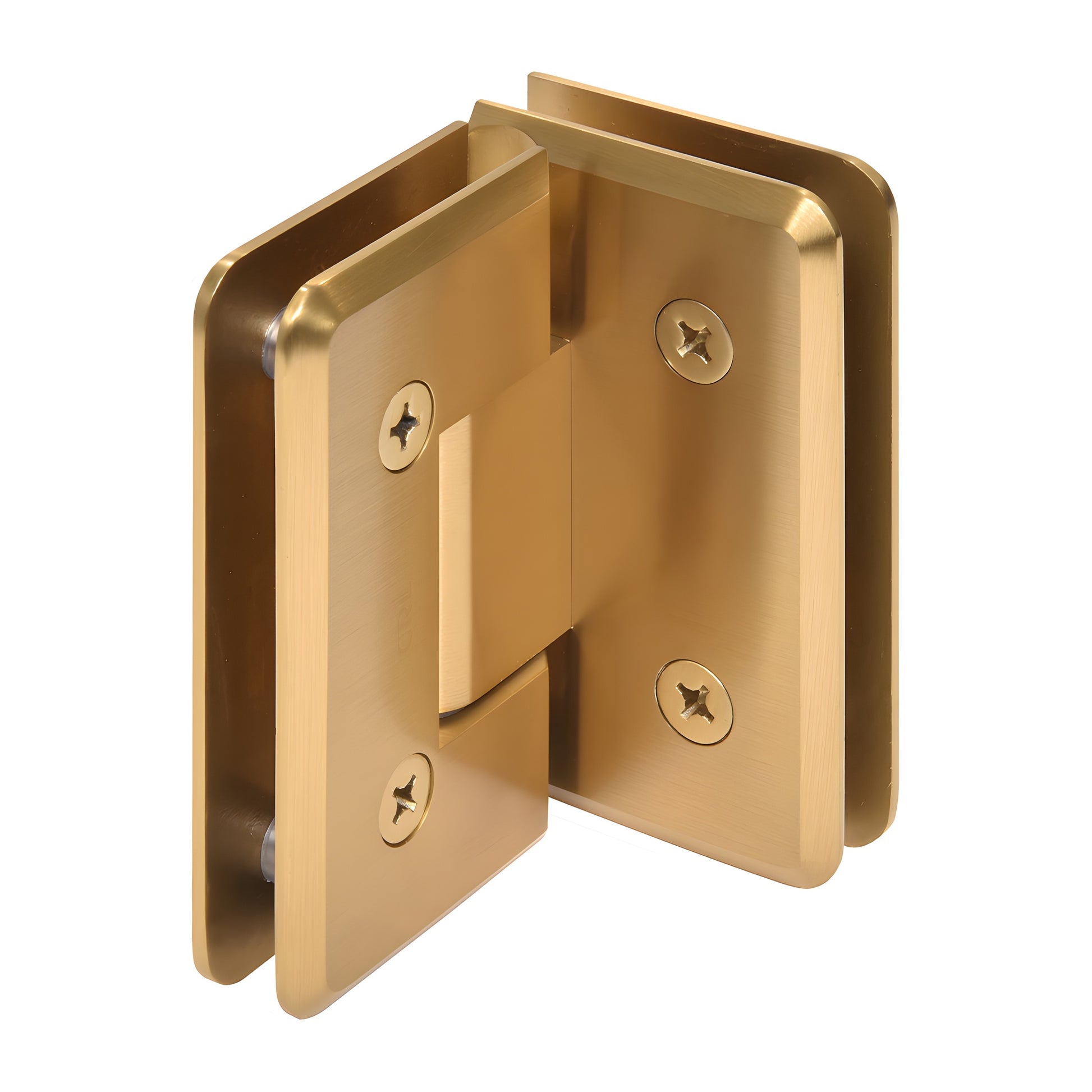

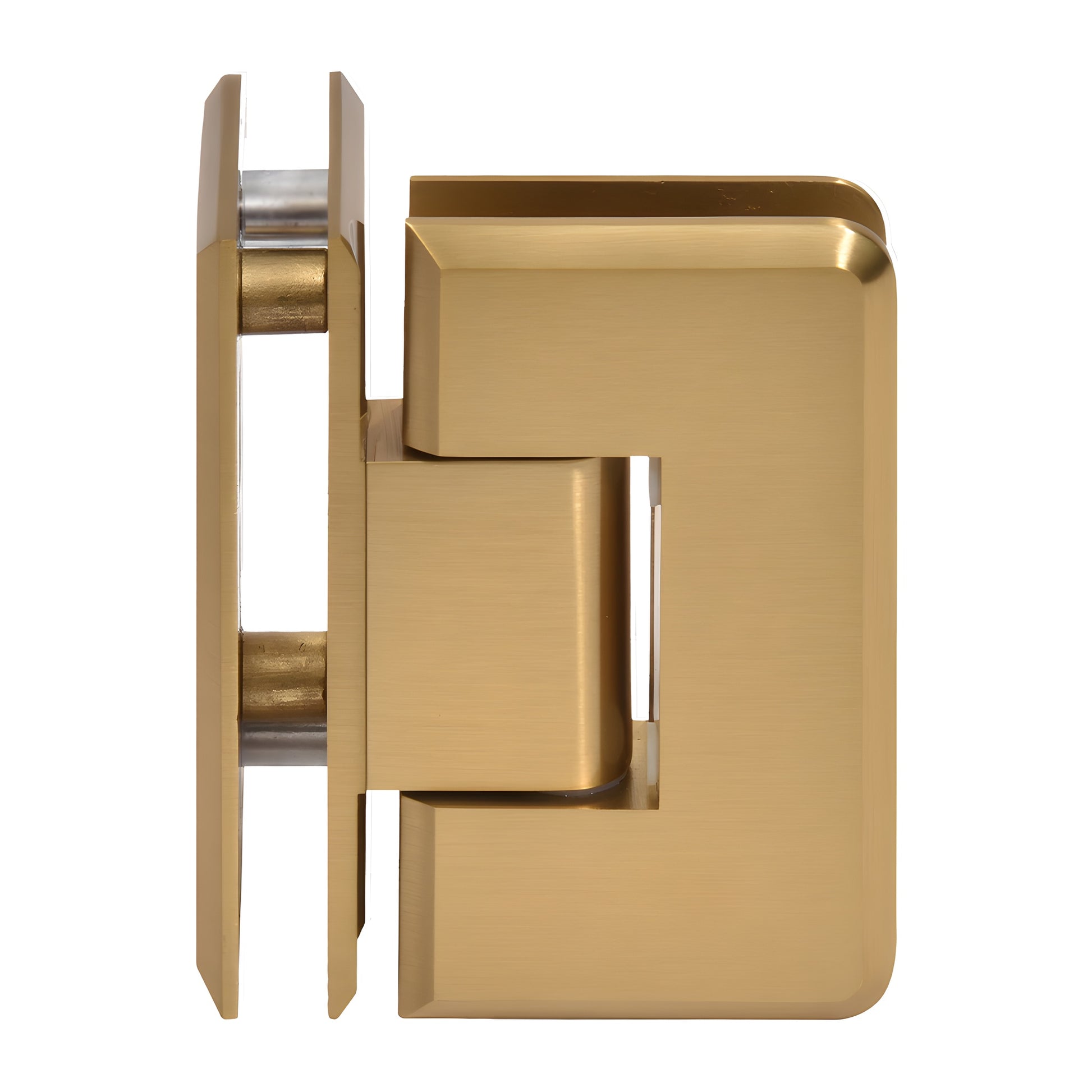

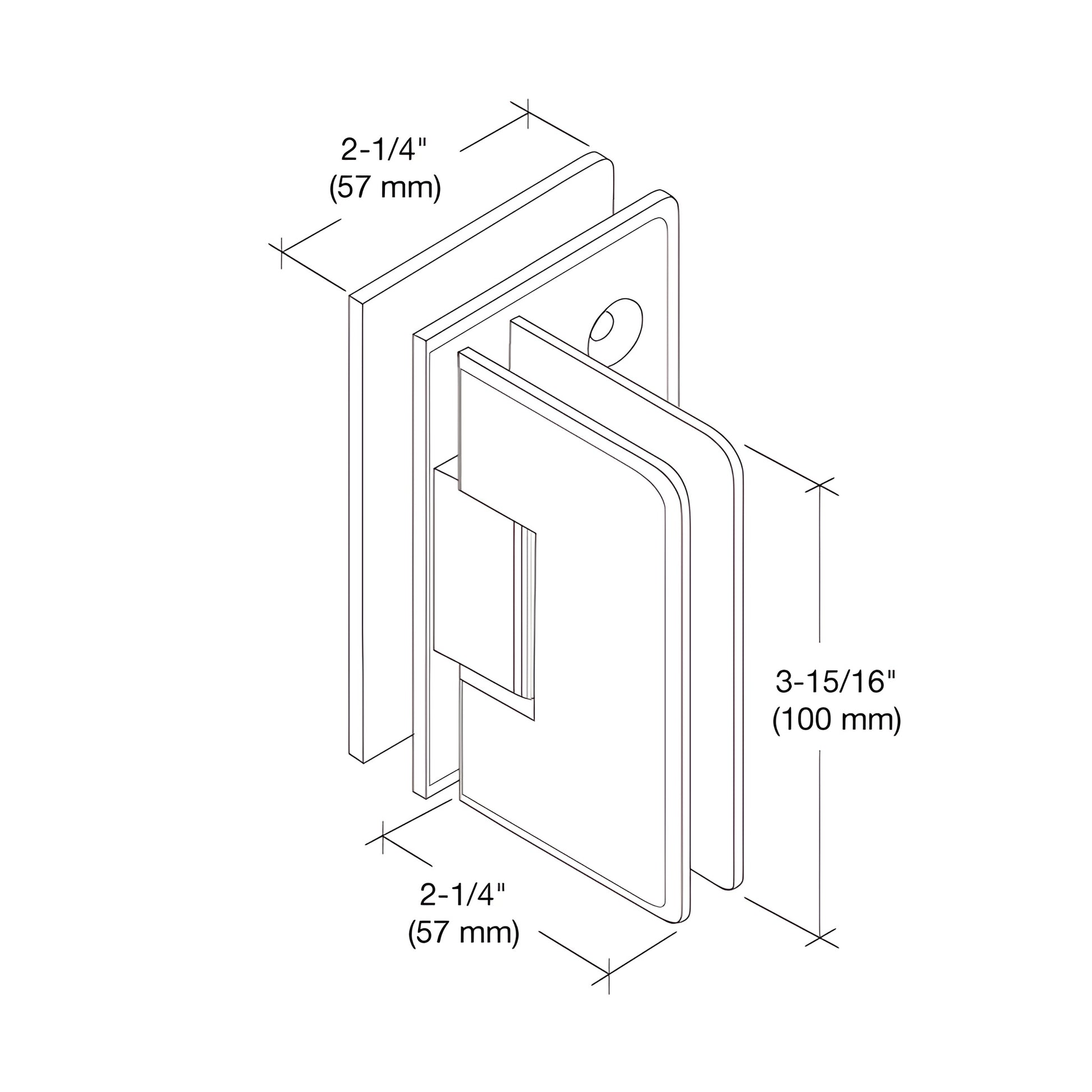

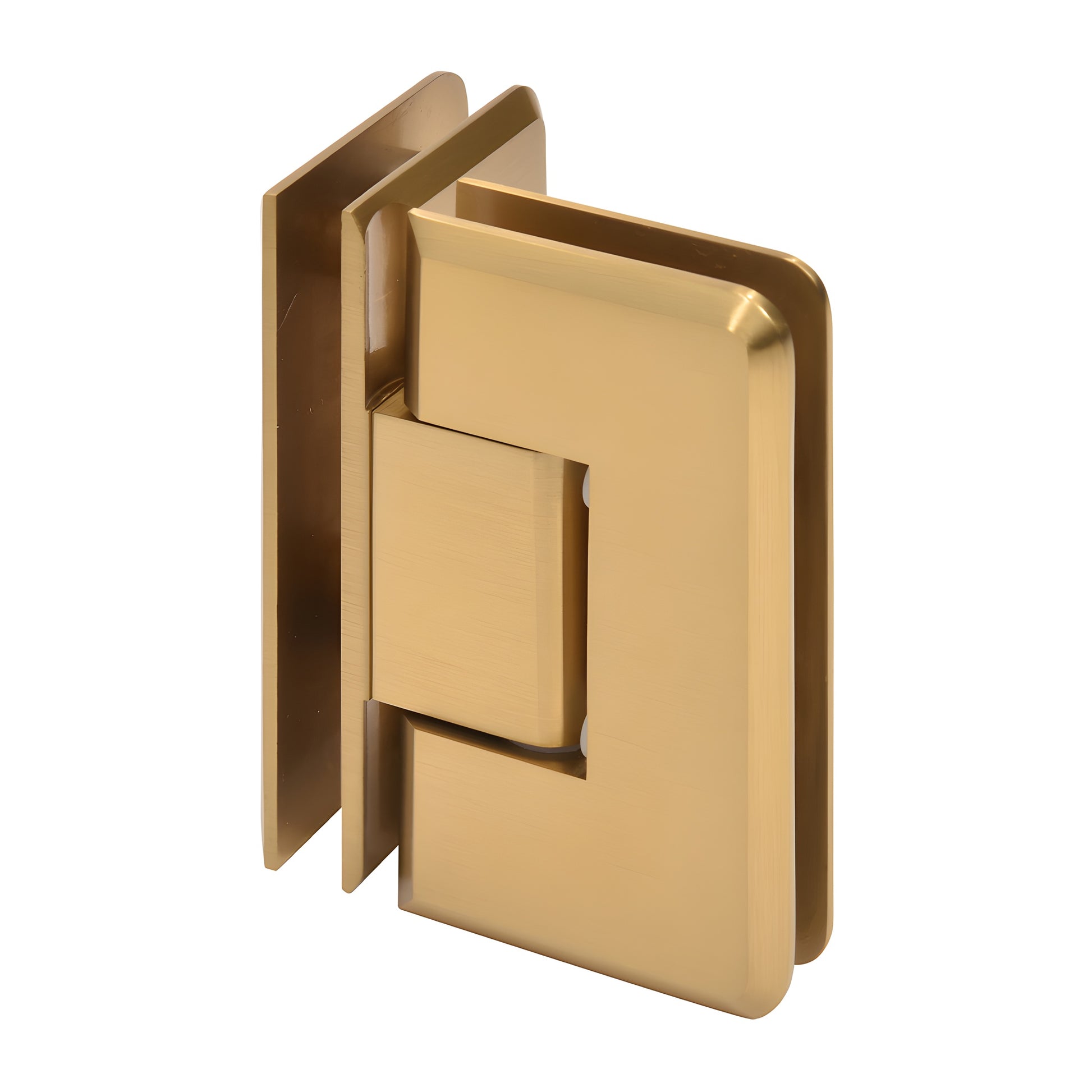

CRL Cologne 092 Series Modern Gold 90° Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several beautiful finishes
• 90º glass-to-glass hinge for frameless shower doors
• Use monolithic tempered safety glass

CRL Cologne Hinges are a premium solid brass shower hinge option similar to Vienna Hinges but with radius corners and beveled edges for a sleek, modern appearance. Designed for wider, heavier frameless shower doors, Cologne Hinges include two internal steel pins that provide mounting template options: leave both pins in place for CRL "mouse-ears" cut-outs or remove them for increased adjustability and compatibility with CRL rectangular (square-corner) cut-outs and some competitive cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge contains a reversible pivot pin with one side marked 90º and the opposite side marked 85º. Standard models ship with the 90º side activated; Pre-Set models are set to 85º for a 5º tighter closure. The pin can be rotated (not flipped) to switch sides.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45º) when the standard 5º adjustment is insufficient.

Load Capacity:
Using two hinges with 3/8" to 1/2" (10–12 mm) glass: holds up to 110 lbs (50 kg), maximum door width 36" (914 mm).

Using three hinges with 3/8" to 1/2" (10–12 mm) glass: holds up to 140 lbs (63 kg), maximum door width 36" (914 mm).

SPECIFICATIONS:
SKU: C0L092MG
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90º in and 90º out (self-centering within 15º of closed position)
Cut-Out Required: Except C0L092 which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request — contact CRL Technical Sales for options and lead times.

Product Warning:

CRL shower door hinges are intended for residential or hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; CRL cut-out dimensions may differ from other brands.
