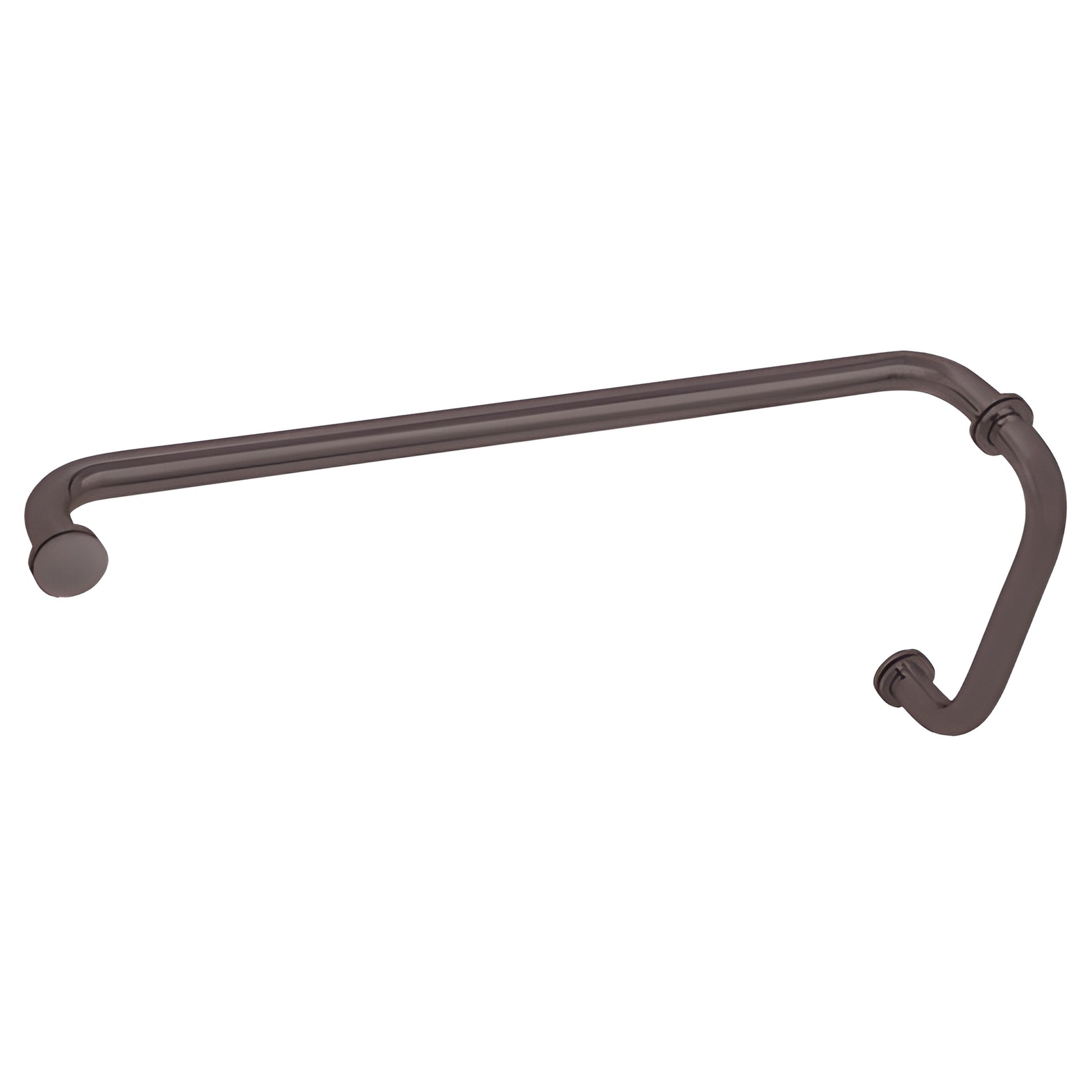

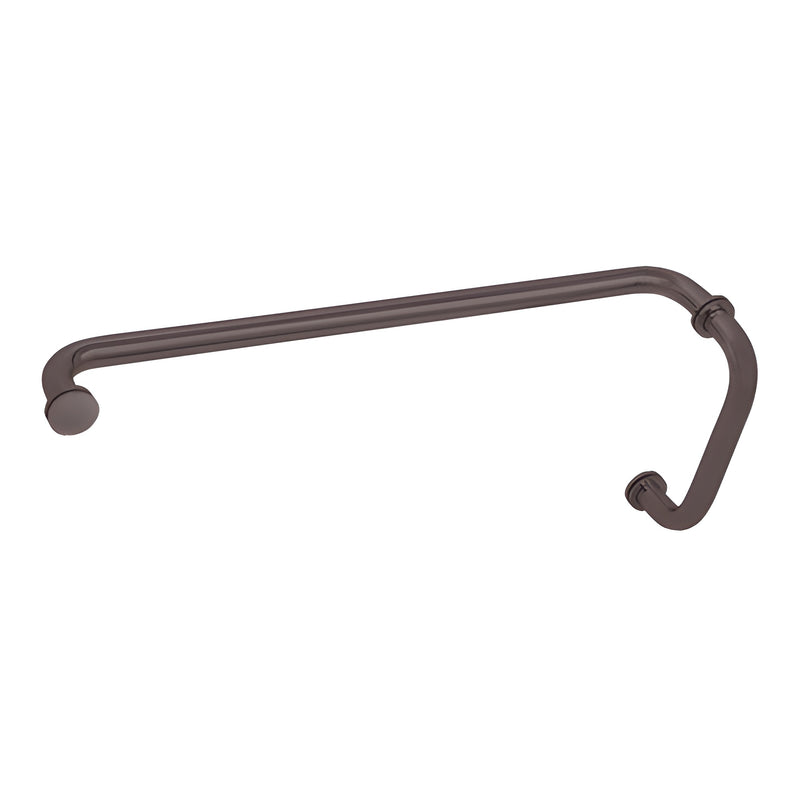

CRL Oil Rubbed Bronze 8" Pull Handle and 24" Towel Bar BM Series Combination With Metal Washers
Item # BM8X240RB
$101.23
CAD
Finish (6)
-
Oil Rubbed Bronze -
Brushed Bronze -
Brushed Nickel -
Polished Chrome -
Matte Black -
Polished Nickel
Mounting Type (2)
- Glass Mount - Back To Back
- Glass Mount - Single Sided
Overview
| SKU | BM8X240RB |
|---|---|
| Sold As | 1 Each |
| Construction | Tubular |
| Diameter | 3/4 in. (19 mm) |
| Finish/Color | Oil Rubbed Bronze |
| Glazing Thickness | 1/4 in. To 1/2 in. (6 mm To 12 mm) |
| Material | Brass |
| Mounting Type | Glass Mount - Back To Back |
| Pull Mounting Center To Center | 8 in. (203 mm) |
| Series | BM |
| Style Washer Diameter | 1-1/4 in. (32 mm) |
| Style Washers | Yes |
| Towel Bar Mounting Center To Center | 24 in. (610 mm) |
Description
- Available in Several Beautiful Finishes
- Provides a Functional Pull Handle for Inside the Shower Enclosure, Along with a Convenient Towel Bar for the Outside
- Attractive Metal Washers
- Use Monolithic Tempered Glass
The CRL BM Series of Pull Handle/Towel Bar Combinations With Metal Washers are provided with all the hardware required for installation. They are constructed of 1.5 mil thick heavy brass tubing. Each set consists of a pull handle/towel bar set, along with decorative metal back-up washers and plastic washers to protect against glass-to-metal contact.
SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Brass Tubing (1.5 mil thick), 1-1/4" (32 mm) Diameter Metal Washers
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Center-to-Center Hole Spacing:
6" Pull = 6" (152 mm)
8" Pull = 8" (203 mm)
12" Pull = 12" (305 mm)
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
20" Towel Bar = 20" (508 mm)
22" Towel Bar = 22" (559 mm)
24" Towel Bar = 24" (610 mm)
AVAILABLE SIZES:
Cat. No. BM6X12 6" Pull/12" Towel Bar
Cat. No. BM6X18 6" Pull/18" Towel Bar
Cat. No. BM6X22 6" Pull/22" Towel Bar
Cat. No. BM6X24 6" Pull/24" Towel Bar
Cat. No. BM8X18 8" Pull/18" Towel Bar
Cat. No. BM8X20 8" Pull/20" Towel Bar
Cat. No. BM8X22 8" Pull/22" Towel Bar
Cat. No. BM8X24 8" Pull/24" Towel Bar
Cat. No. BM12X24 12" Pull/24" Towel Bar
