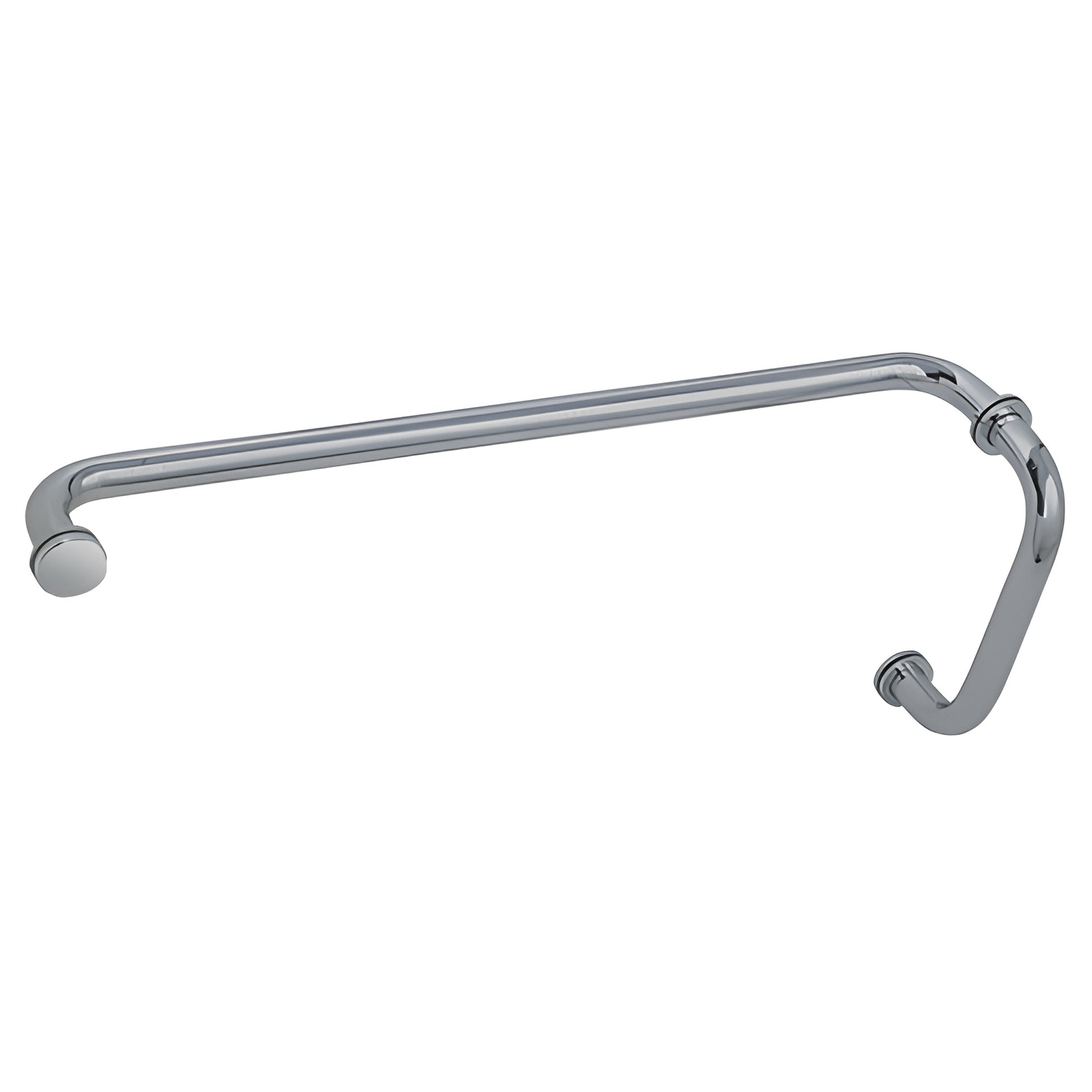

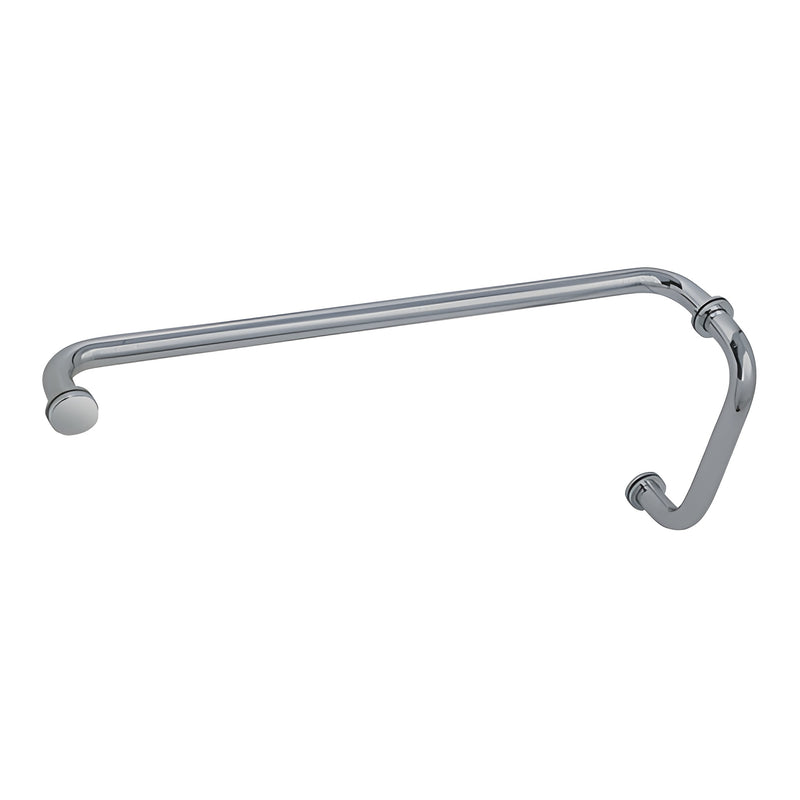

CRL BM Series Brushed Nickel 8 in Pull & 24 in Towel Bar w/ Washers

• Available in several beautiful finishes
• Functional pull handle for inside the shower enclosure with a convenient towel bar on the outside
• Attractive metal backup washers protect the glass-to-metal contact
• Designed for use with monolithic tempered glass shower doors

The CRL BM Series Pull Handle/Towel Bar Combination with Metal Washers includes all installation hardware. Constructed from 3/4" (19 mm) diameter brass tubing (1.5 mil thick), each set pairs a durable inside pull handle with an outside towel bar and decorative metal backup washers plus protective plastic washers to prevent glass-to-metal abrasion. Ideal as a brass pull handle for frameless shower doors and a shower door towel bar combination for tempered glass.


SPECIFICATIONS:
Material: 3/4" (19 mm) diameter brass tubing (1.5 mil thick), 1-1/4" (32 mm) diameter metal washers
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Center-to-Center Hole Spacing:
6" Pull = 6" (152 mm)
8" Pull = 8" (203 mm)
12" Pull = 12" (305 mm)
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
20" Towel Bar = 20" (508 mm)
22" Towel Bar = 22" (559 mm)
24" Towel Bar = 24" (610 mm)

AVAILABLE SIZES:
Cat. No. BM6X12 — 6" Pull / 12" Towel Bar
Cat. No. BM6X18 — 6" Pull / 18" Towel Bar
Cat. No. BM6X22 — 6" Pull / 22" Towel Bar
Cat. No. BM6X24 — 6" Pull / 24" Towel Bar
Cat. No. BM8X18 — 8" Pull / 18" Towel Bar
Cat. No. BM8X20 — 8" Pull / 20" Towel Bar
Cat. No. BM8X22 — 8" Pull / 22" Towel Bar
Cat. No. BM8X24 — 8" Pull / 24" Towel Bar
Cat. No. BM12X24
