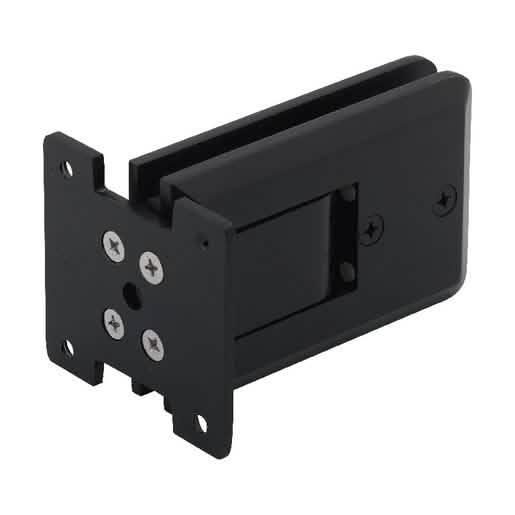

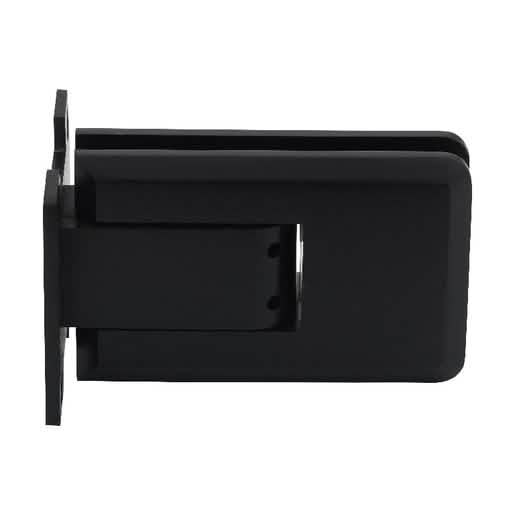

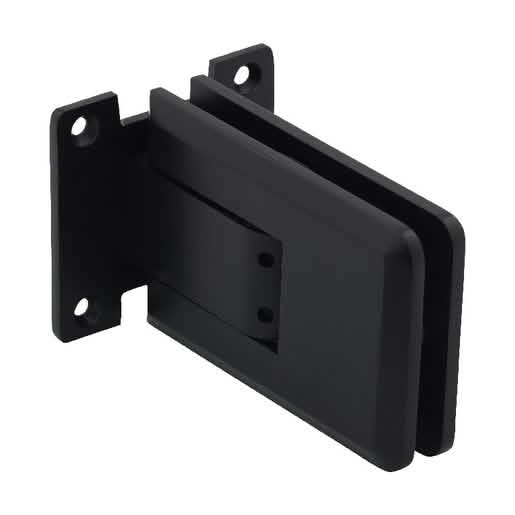

CRL Atlas Oil-Rubbed Bronze Frameless Glass Shower Door Hinge
CRL Atlas Oil-Rubbed Bronze Frameless Glass Shower Door Hinge
Regular price
$384.15 CAD
Regular price
Sale price
$384.15 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# ATL010RB
Shipping Weight: 3.1 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 3.1 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1



Description
Adjustable | Yes |
Back | Plate Full |
Edge | Profile Beveled |
Finish/Color | Oil Rubbed Bronze |
Glazing Thickness | 5/16 in. To 1/2 in. (8 mm To 12 mm) |
Height 3-9/16 in. | (90 mm) |
Material | Brass |
Maximum Door Weight | 140 |
Maximum Door Width 39 in. | (991 mm) |
Mounting | Type Wall Mount |
Self-Centering Yes | Atlas |
Width 5 7/8 in. | (149 mm) |
Overview
The CRL Atlas Series 'All-Glass' Door Hinge combines minimal hardware with a stylish, heavy-duty design, perfect for creating sleek glass doors or gates.
Featuring a self-centering function and adjustable spring strength, it eliminates the need for additional closer mechanisms while holding doors open at 90 degrees.
Ideal for large interior tempered glass doors and gates ranging from 5/16" to 1/2" (8 to 12 mm) in thickness, this hinge offers easy closed position adjustment and comes in four architectural finishes.
Constructed from solid brass with stainless steel components, it is especially suitable for environments prone to moisture.
Please be advised that the CRL Shower Door Hinges are specifically designed for residential or hotel shower use, and using them for other purposes requires approval from the CRL Shower Door Technical Sales Department.
Featuring a self-centering function and adjustable spring strength, it eliminates the need for additional closer mechanisms while holding doors open at 90 degrees.
Ideal for large interior tempered glass doors and gates ranging from 5/16" to 1/2" (8 to 12 mm) in thickness, this hinge offers easy closed position adjustment and comes in four architectural finishes.
Constructed from solid brass with stainless steel components, it is especially suitable for environments prone to moisture.
Please be advised that the CRL Shower Door Hinges are specifically designed for residential or hotel shower use, and using them for other purposes requires approval from the CRL Shower Door Technical Sales Department.
