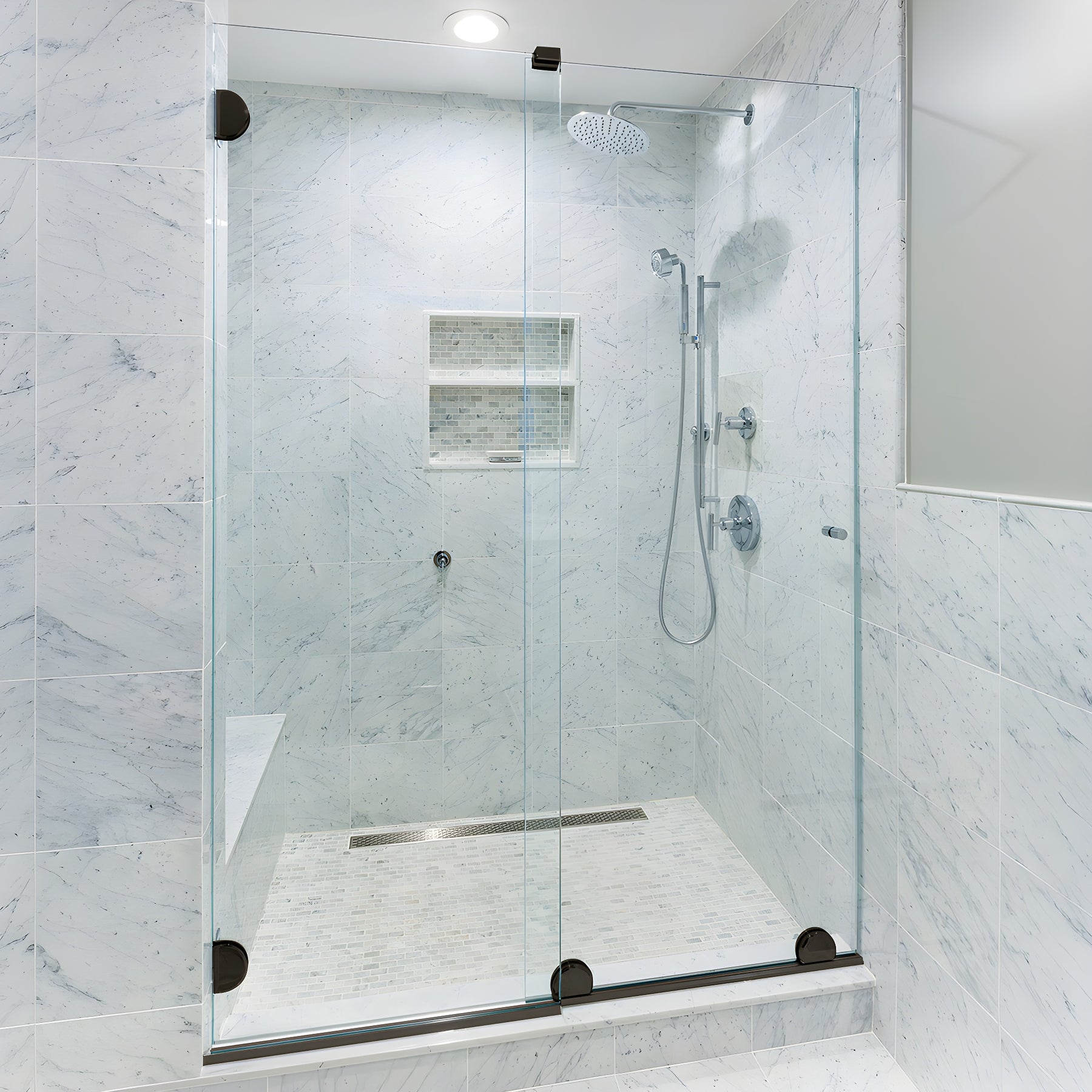

CRL Essence® Series Oil Rubbed Bronze Basic Sliding Door Hardware Kit

• Patents: U.S. 9,364,121; Canada 2,853,462; Australia 2012328876
• Headerless system provides a true frameless look both vertically and horizontally — ideal frameless sliding glass door kit for contemporary interiors
• Bottom-rolling system with integrated height adjustment for precise alignment
• Curved bottom rollers include anti-derail and anti-pinch features for safer, reliable operation
• Designed for use with 1/2" (12 mm) thick monolithic tempered safety glass (glass sold separately)
• Stocked in four popular finishes
• Glass brackets and door handle/knob sold separately

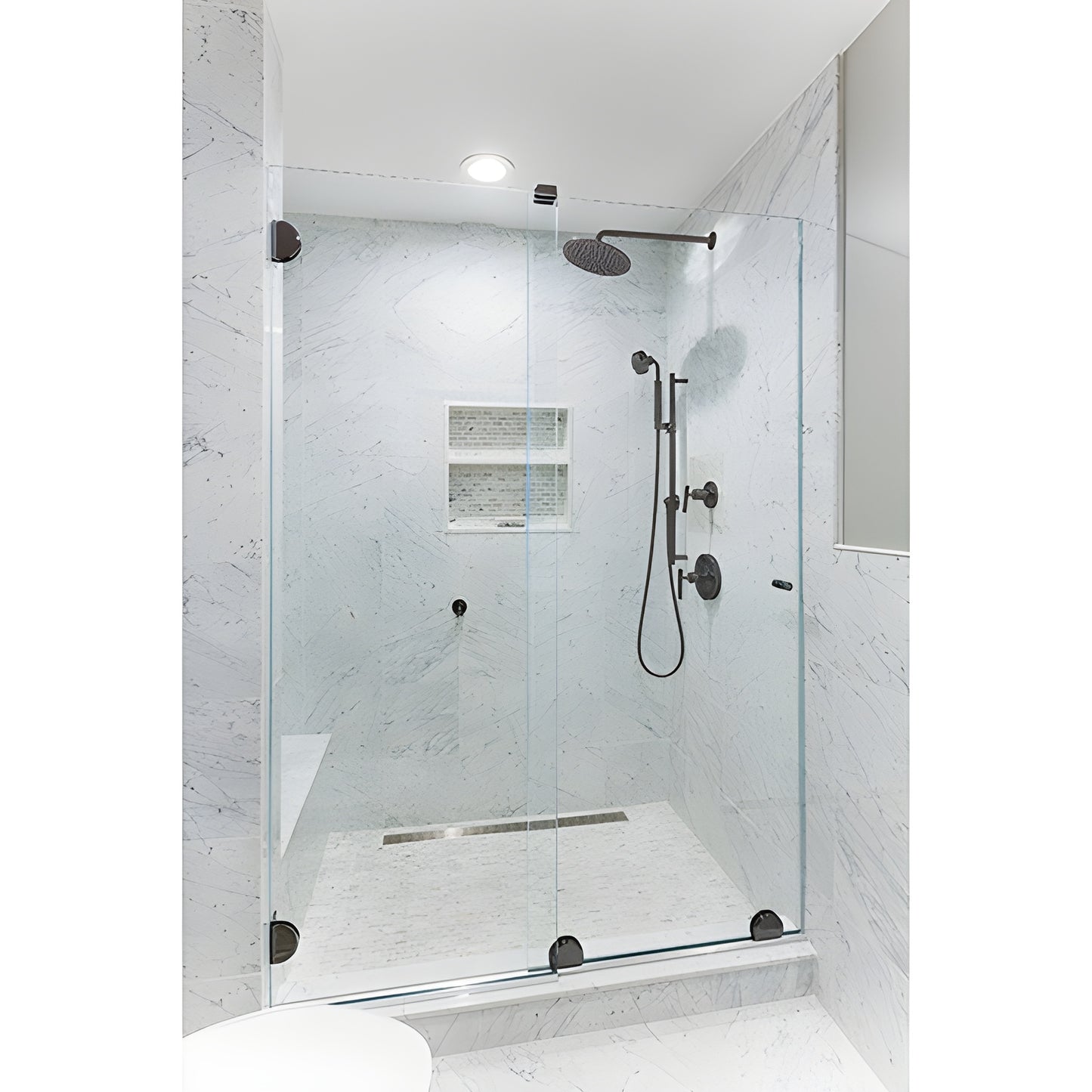

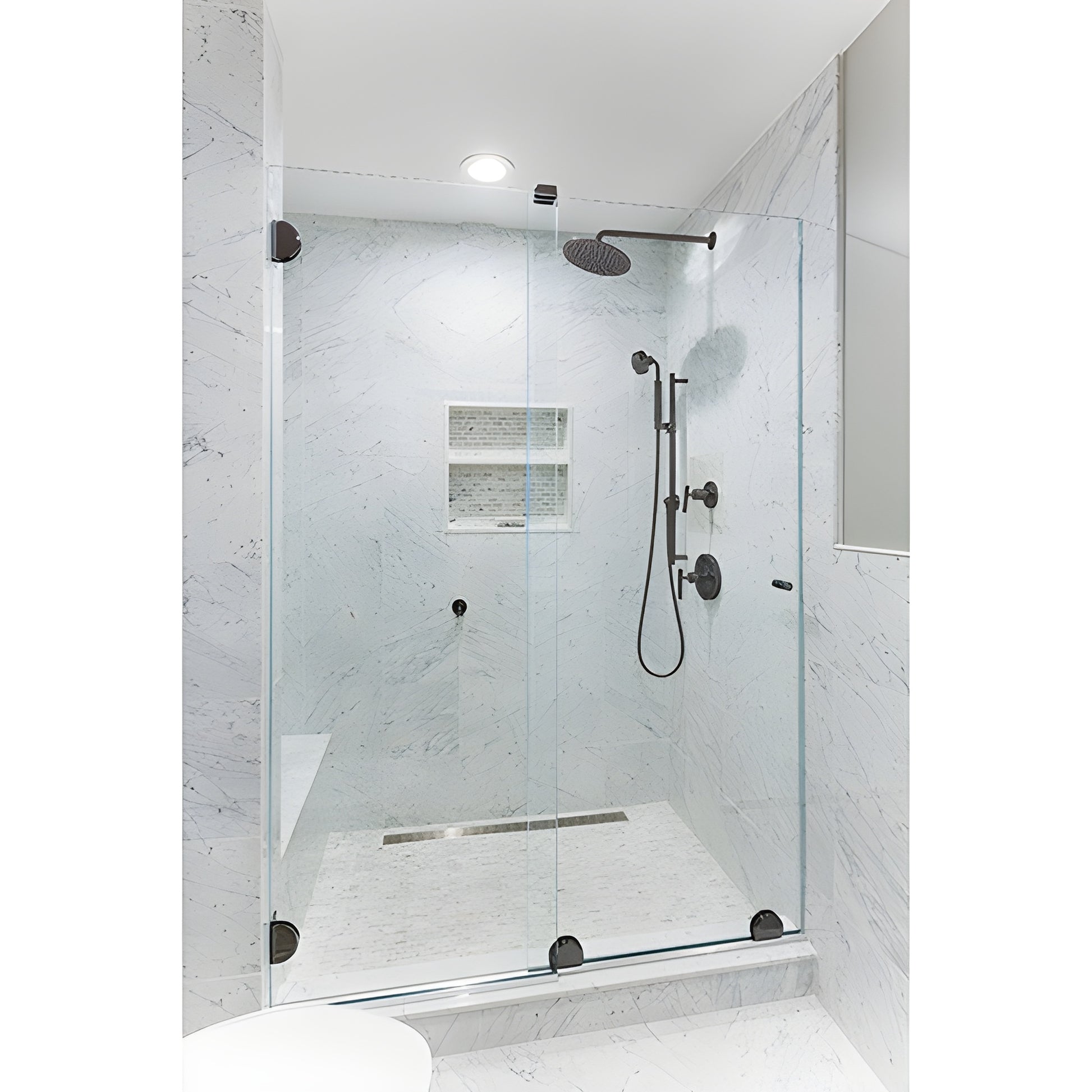

CRL Essence Series Basic Sliding Door Kit (SKU: ESS10RB) — a headerless, frameless sliding door hardware solution engineered for smooth, quiet performance. Horizontal water management uses the bottom track; vertical sealing is achieved with the DK98L Clear Seal. The unique curved bottom rollers provide both anti-derail and anti-pinch protection while the integrated height adjustment simplifies installation. Suitable only for 1/2" (12 mm) tempered safety glass (not included). Stocked in four finishes.

KIT INCLUDES:

• Two — Bottom Rollers
• One — Spanner Wrench for Roller Adjustment
• One — Top Door Guide
• One — 64" (1.63 m) Bottom Track
• One — 98" (2.49 m) U-Channel
• One — 98" (2.49 m) Plastic L-Seal
• One — SDCEC12 End Cap for Channel
• One — 1/16" (1.6 mm) Neoprene Setting Block

NOTE: Glass brackets, handle/knob, and other accessories sold separately.

Product Warning:
Maximum door height: 84" (2.13 m). Maximum door weight: 127 lbs. (57.6 kg). GE90S9 (Square) or CL90S (Round) wall clamps
