Product Details
- For 5/16", 3/8", and 1/2" (8, 10, and 12 mm) Glass
- One 95" (2.41 m) Piece of Aluminum Header Extrusion
- One 36" (914 mm) Piece of Aluminum Snap-In Filler for Door Pocket
- One Pack of Two BWB2 Brass Wall Mounting Brackets
- Clear Vinyl for 5/16" (8 mm) and 3/8" (10 mm) Glass
- 98" (2.49 m) Piece of Header Extrusion
- 36" (.91 m) Piece of Snap-In Filler for Door Pocket
- Vinyl for 5/16" (8 mm) and 3/8" (10 mm) Glass [not needed for 1/2" (12 mm) Glass]
- Pack of BWB2 Brass Wall Mounting Brackets (Pack includes two Brackets) NOTE: If choosing to use a Header Kit with 1/4" (6 mm) glass, Cat. No. HV140 Clear Vinyl may be ordered separately.

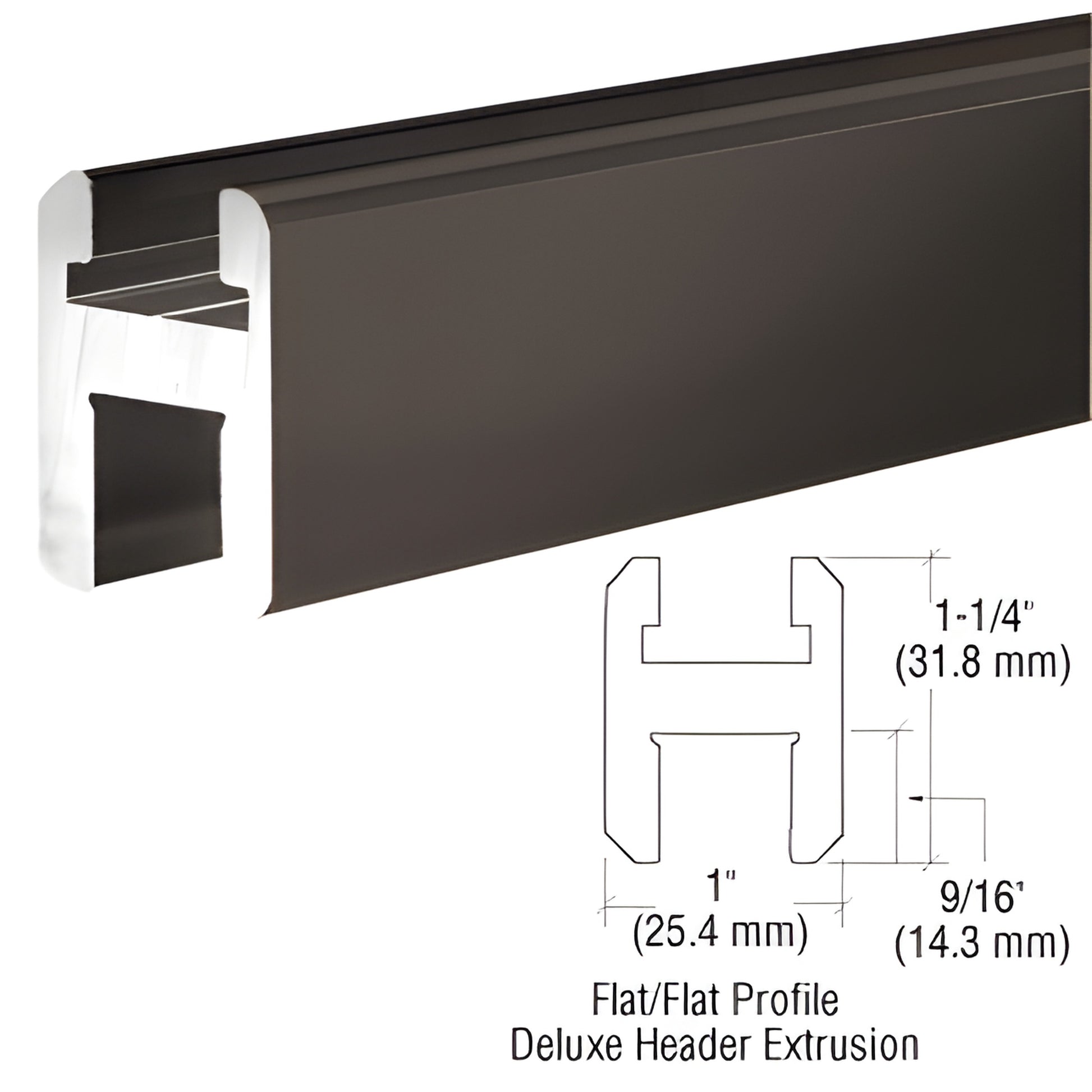

The CRL Deluxe Header Kit will provide additional support and a level of safety while securing glass panels not reaching the ceiling. Deluxe Header Kits are designed to allow installers to do in-house fabrication using a selection of component parts. Sold in 95" lengths, each Header Extrusion has a narrow 1-1/4" (32 mm) face to minimize the visible sight line. 90 degree, 135 degree or Adjustable Corners are sold separately. Also available is a special Adapter Block for use on pivot hinge installations. Brass Wall Brackets are included in each kit. A Blank Mounting Bracket is offered separately for installations where the Header does not meet the wall at 90 degree, and the standard Wall Mounting Brackets cannot be used. Header is constructed of 6063-T5 Aluminum Alloy.
This Header Kit is adaptable to Senior Prima, Senior Cardiff, Prima, Cardiff, Rondo or Shell Hinges, if using the Kit with Top and Bottom Mount Pivot Hinges.
EACH DELUXE HEADER KIT CONTAINS:
98" (2.49 m) Piece of Header Extrusion
36" (.91 m) Piece of Snap-In Filler for Door Pocket
Vinyl for 5/16" (8 mm) and 3/8" (10 mm) Glass [not needed for 1/2" (12 mm) Glass]
Pack of BWB2 Brass Wall Mounting Brackets (Pack includes two Brackets)
NOTE: If choosing to use a Header Kit with 1/4" (6 mm) glass, Cat. No. HV140 Clear Vinyl may be ordered separately.
