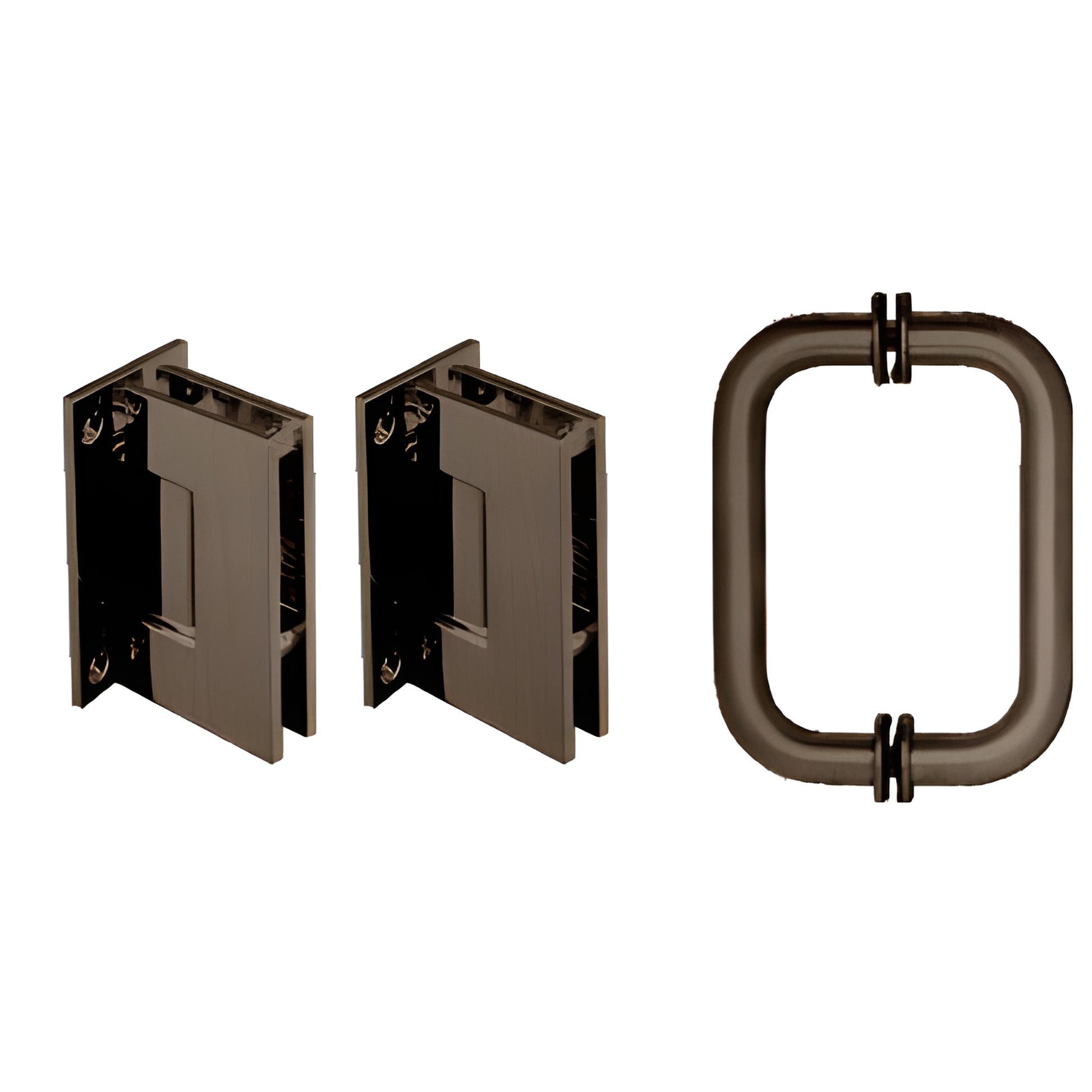

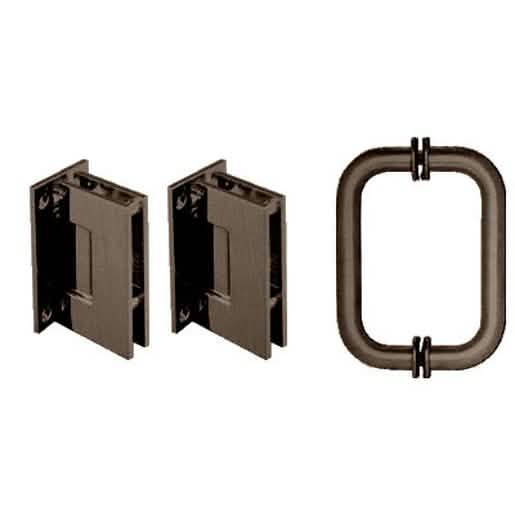

CRL Geneva Oil-Rubbed Bronze Shower Door Pull & Hinge Set
CRL Geneva Oil-Rubbed Bronze Shower Door Pull & Hinge Set
Regular price
$209.55 CAD
Regular price
Sale price
$209.55 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GENS30RB
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
5 Degree Pre-Set
No
Adjustable
No
Back Plate
Full
Finish/Color
Oil Rubbed Bronze
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Material
Brass
Maximum Door Weight
80 lbs. (36.3 kg)
Maximum Door Width
28 in. (711 mm)
Mounting Type
Wall Mount
Self-Centering
Yes
Series
Geneva
Overview
- Hinges for 5/16" to 1/2" (8 to 12 mm) glass
- Includes two GEN037 wall-mount hinges (top & bottom pivot options)
- Includes one BM6X6 pull handle set with metal washers
- Available in our five most popular hinge series and four most popular finishes
- All components packaged together in easy-to-order sets (SKU: GENS30RB)
- Designed for use with monolithic tempered glass shower doors
CRL Shower Pull and Hinge Set — This compact, easy-to-order set combines our two most popular GEN037 wall-mount hinges with the best-selling BM6X6 pull handle. Built for 5/16"–1/2" (8–12 mm) glass, the set simplifies specifying and installing a residential or hotel shower door hinge and pull handle solution.
Key differentiators:
- Pre-packaged combination: hinges + pull handle + washers for faster procurement
- Specifically matched components to reduce installation issues and part mismatches
- Optimized for monolithic tempered glass shower doors — ideal for frameless shower installations
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Order the GENS30RB hinge and pull set today for a hassle-free, matched shower door hardware solution.
