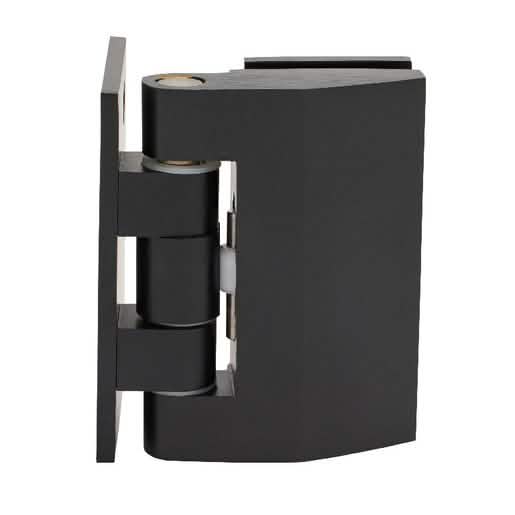

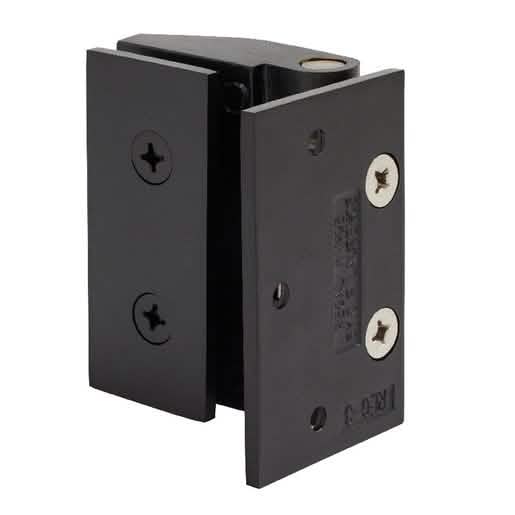

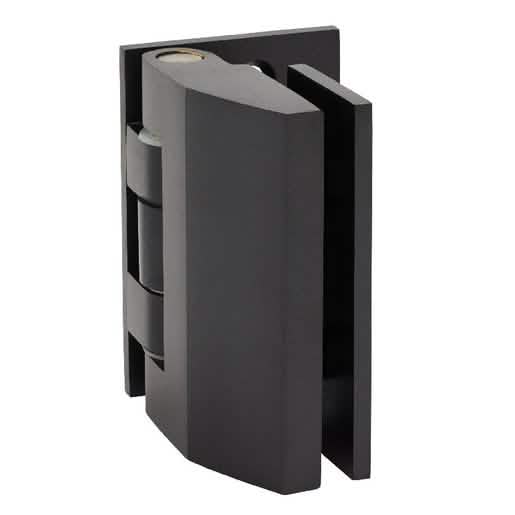

CRL Oil Rubbed Bronze Regal 037 Series Wall Mount Offset Back Plate Hinge
CRL Oil Rubbed Bronze Regal 037 Series Wall Mount Offset Back Plate Hinge
Regular price
$172.04 CAD
Regular price
Sale price
$172.04 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# REG0370RB
Shipping Weight: 1.91 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 1.91 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Adjustable | Yes |
| Back | Plate Offset |
| Finish/Color | Oil Rubbed Bronze |

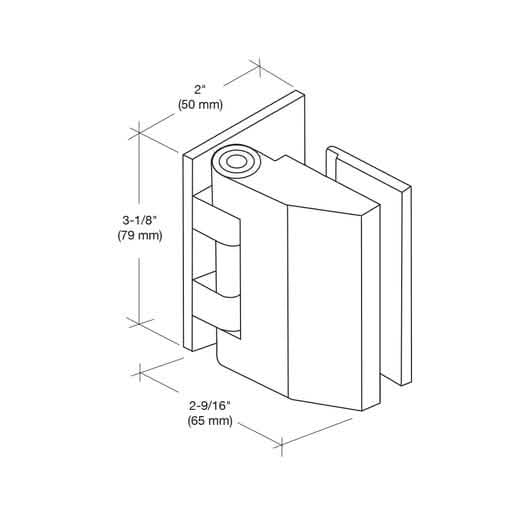

| Height 3-1/8 in. | (79 mm) |
| Material | Brass |
| Maximum Door Weight - 2 Hinges 90 lbs. | (40.8 kg) |
| Maximum Door Weight - 3 Hinges 130 lbs. | (59 kg) |
| Maximum Door Width - | 2 Hinges 30 |
| Maximum Door Width - | 3 Hinges 34 |
| Mounting | Type Wall Mount |
| Self-Centering Yes | (65 mm) |
Overview
The CRL Regal Adjustable Hinge is a versatile and innovative solution for shower doors, featuring a wall mount design that requires minimal drilling—only two holes per door and four per Glass-to-Glass model.
This hinge offers an adjustable closing angle from 0 to 90 degrees, allowing for easy alignment even if walls don't meet at a perfect right angle.
Available in a variety of elegant finishes, the hinge supports glass thicknesses of 5/16" to 3/8" and can hold up to 90 lbs with two hinges or 130 lbs with three.
Note that the REG037 and REG180 models are not available in Europe, and custom finishes can be requested.
Ideal for residential or hotel use, CRL Shower Door Hinges require proper approval if used for other purposes.
For precise installation, use the included template, as cut-out dimensions may differ from other brands.
Contact CRL Customer Service for detailed shipping weights and custom finish inquiries.
This hinge offers an adjustable closing angle from 0 to 90 degrees, allowing for easy alignment even if walls don't meet at a perfect right angle.
Available in a variety of elegant finishes, the hinge supports glass thicknesses of 5/16" to 3/8" and can hold up to 90 lbs with two hinges or 130 lbs with three.
Note that the REG037 and REG180 models are not available in Europe, and custom finishes can be requested.
Ideal for residential or hotel use, CRL Shower Door Hinges require proper approval if used for other purposes.
For precise installation, use the included template, as cut-out dimensions may differ from other brands.
Contact CRL Customer Service for detailed shipping weights and custom finish inquiries.
