CRL P3 36 in Polished Stainless Steel Railing Kit Right End Post
CRL P3 36 in Polished Stainless Steel Railing Kit Right End Post
Regular price
$1,127.93 CAD
Regular price
Sale price
$1,127.93 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P336REPS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Length
5 in. (127 mm)
Base Plate Mounting Holes
4
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Polished Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Meets or exceeds guard rail and hand rail code standards
- Standard post heights: 36" (914 mm) and 42" (1067 mm); custom heights available
- Two standard stainless steel finishes; custom powder-painted finishes also available
- Glass attachment fittings and hand rail brackets sold separately

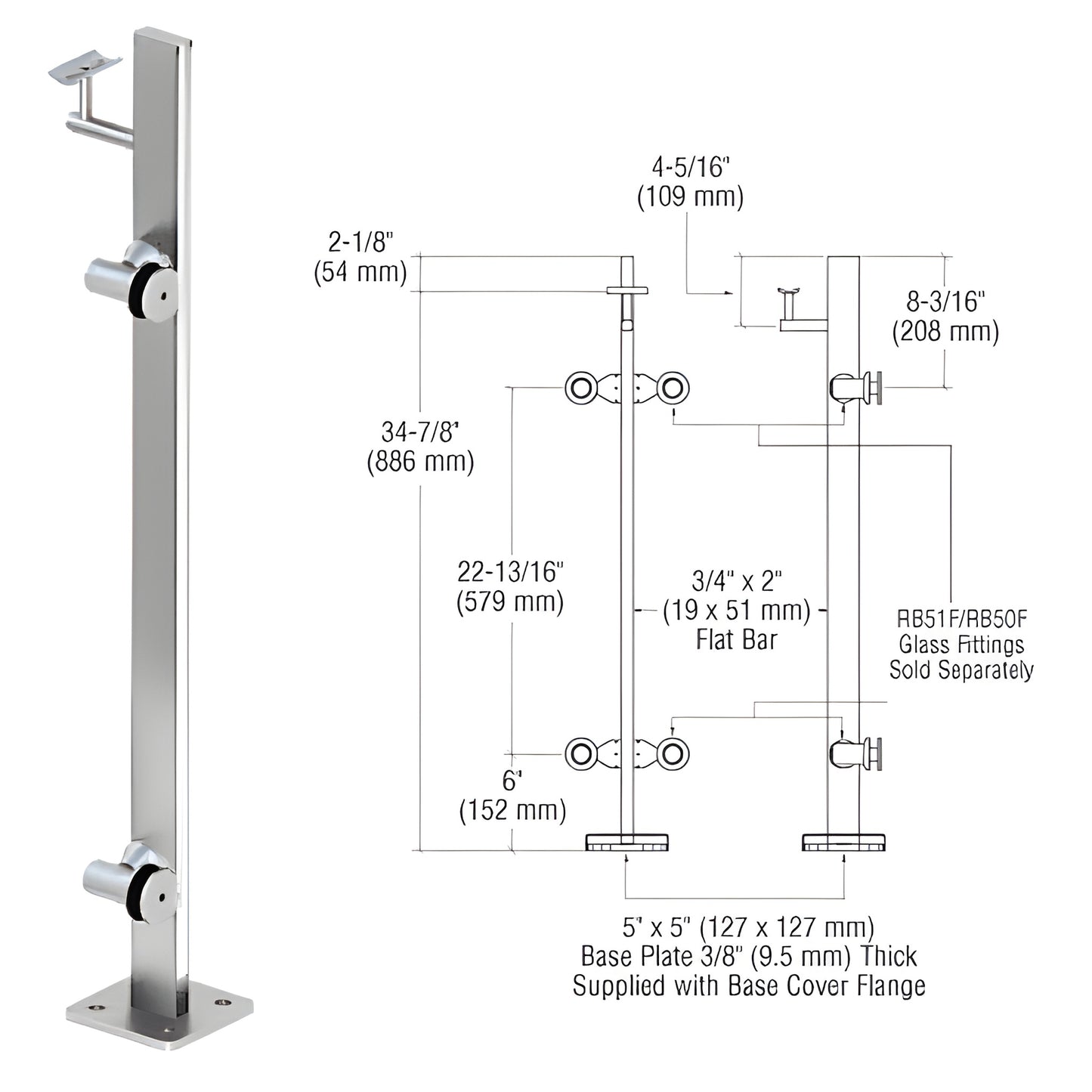

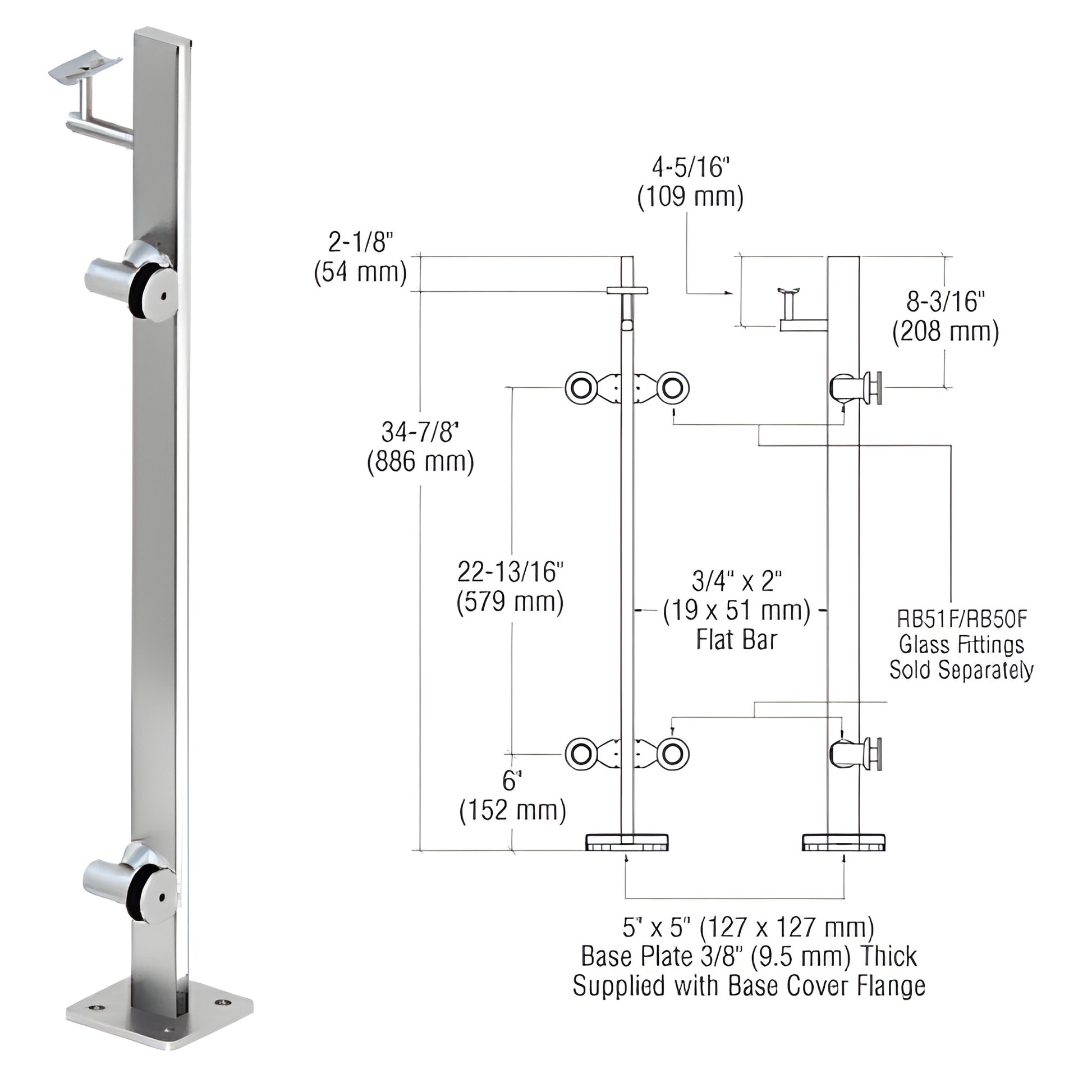

CRL P3 Surface Mounted Post Railing Kits (SKU: P336REPS) are engineered for commercial and residential installations requiring code-compliant guard rails and hand rails. These surface-mounted stainless steel railing posts are manufactured from 3/4" x 2" (19 x 51 mm) flat bar and include a 5" x 5" (127 x 127 mm) base plate with cover for secure, clean mounting. Ideal for glass panel railing systems where glass attachment fittings are purchased separately.
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass mounts and hand rail brackets must be purchased separately.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Need a custom height, finish, or glass mounting solution? Contact CRL for quotes and technical assistance to complete your surface-mounted glass railing system.
