CRL P3 Series 42 in Brushed Stainless Left-Hand End Post Railing Kit
CRL P3 Series 42 in Brushed Stainless Left-Hand End Post Railing Kit
Regular price
$1,143.51 CAD
Regular price
Sale price
$1,143.51 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P342LEBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Length
5 in. (127 mm)
Base Plate Mounting Holes
4
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick glass or panel infills
- Meets or exceeds guardrail and handrail code standards
- Standard post heights: 36" (914 mm) and 42" (1.07 m); custom heights available
- Two standard stainless steel finishes; custom powder-coated finishes available
- Glass attachment fittings and handrail brackets sold separately

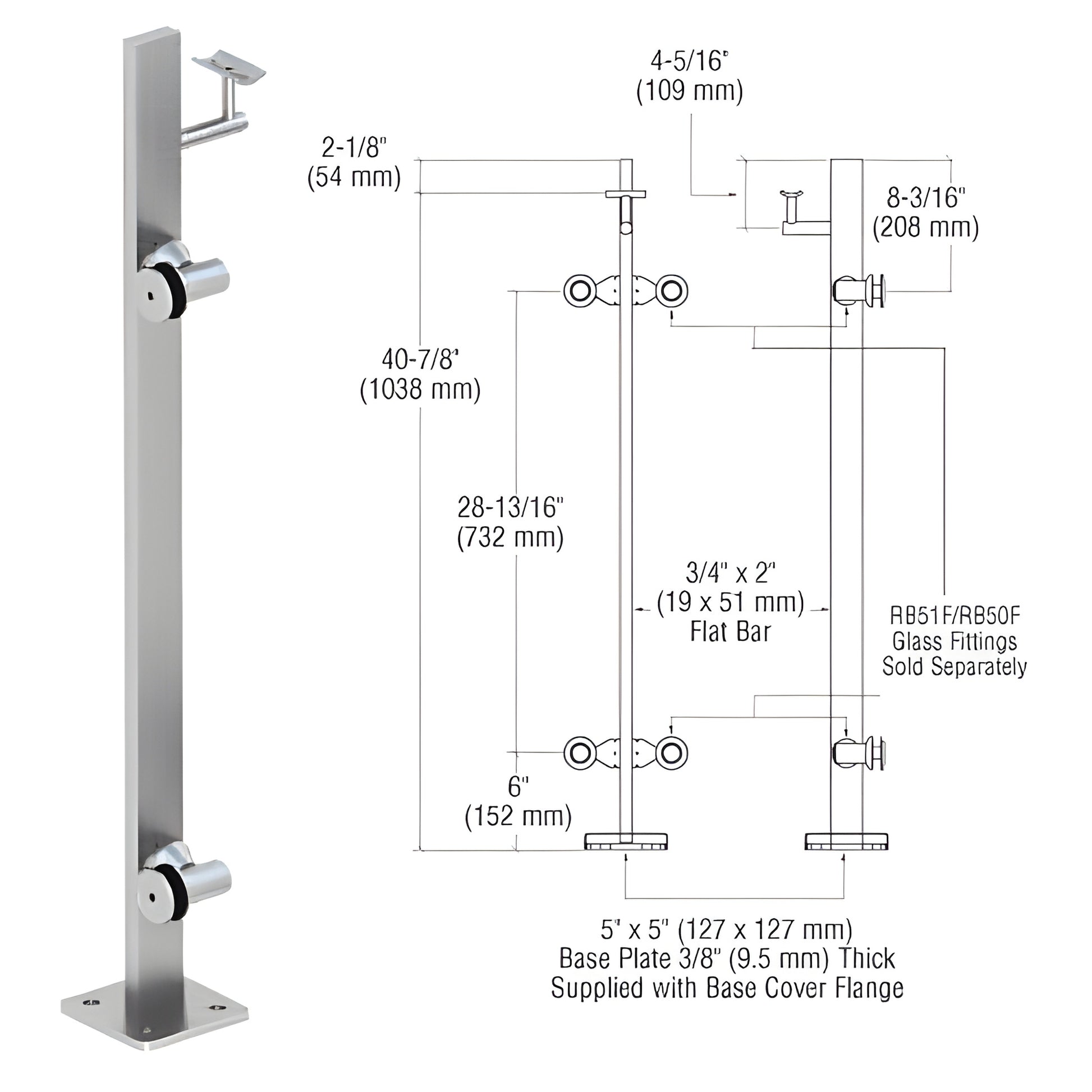

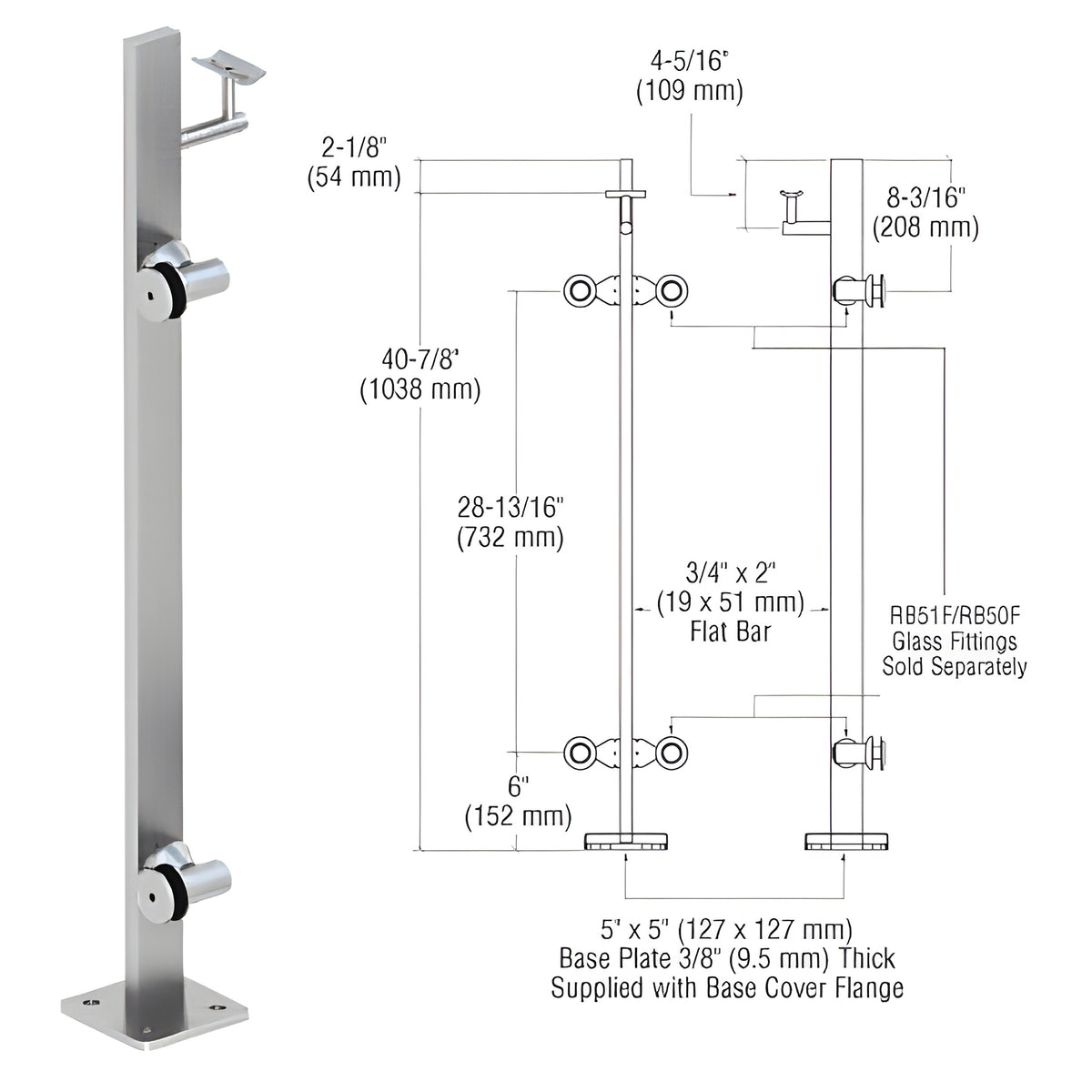

CRL P3 Surface Mounted Post Railing Kits (SKU: P342LEBS) are engineered for commercial and residential glass railing installations. These surface-mounted stainless steel post kits are made from 3/4" x 2" (19 x 51 mm) stainless flat bar and include a 5" x 5" (127 x 127 mm) base plate with cover for a secure, low-profile installation. Ideal for glass panel railings, balcony guards, and stair systems where code-compliant, durable stainless steel components are required. Handrail brackets and fixed or swivel glass mount fittings must be purchased separately.
Product Warning:
All P-Series post kits are sold without glass attachment fittings; purchase glass mounts separately.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for maintenance guidance.
Order P342LEBS for a code-compliant surface-mounted stainless steel post railing kit for glass panels — contact CRL to request custom heights, finishes, or glass fittings.
