CRL P3 Series 42 in Polished Stainless 180° Center-Post Railing Kit
CRL P3 Series 42 in Polished Stainless 180° Center-Post Railing Kit
Regular price
$1,266.82 CAD
Regular price
Sale price
$1,266.82 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P342CPS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Length
5 in. (127 mm)
Base Plate Mounting Holes
4
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Polished Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick glass or panel infill
- Meets or exceeds guard rail and hand rail code standards
- Standard post heights: 36" (914 mm) and 42" (1.07 m); custom heights available
- Two standard stainless steel finishes; custom powder-coated finishes available
- Includes 5" x 5" (127 x 127 mm) base plate and base plate cover; glass attachment fittings and handrail brackets sold separately

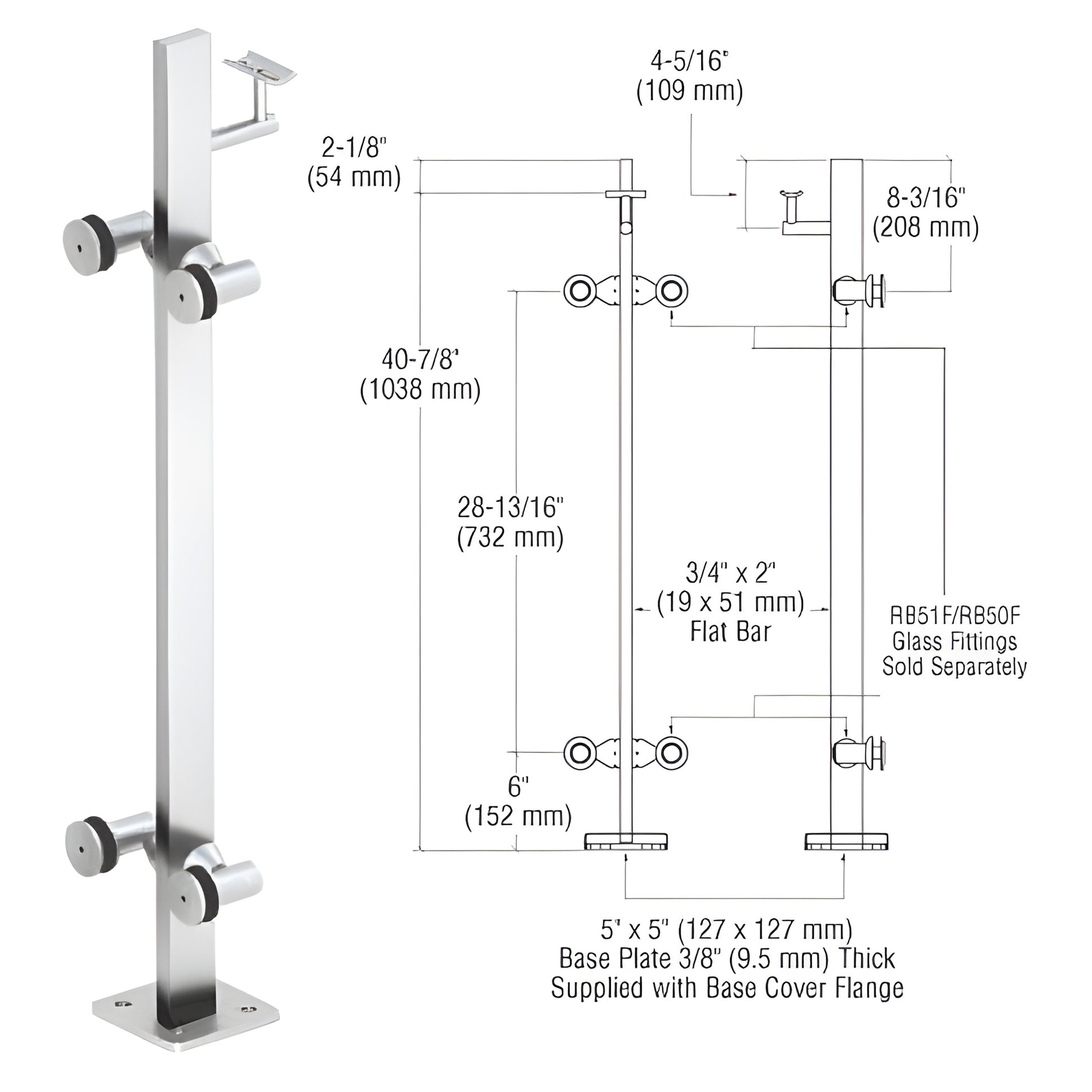

CRL P3 Surface Mounted Post Railing Kits (SKU: P342CPS) are engineered for commercial and residential glass railing installations. Manufactured from 3/4" x 2" (19 x 51 mm) stainless steel flat bar, these surface mounted post railing kits are ideal for frameless glass balustrades and terrace guardrails. Kits include sturdy base plates and covers; choose standard stainless finishes or specify custom powder-coated colors. Handrail brackets and fixed or swivel glass mount fittings are available separately to match your project requirements.
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass mount fittings must be purchased separately.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Order the CRL P3 Surface Mounted Post Railing Kit (P342CPS) or contact us for custom heights, finishes, and compatible glass fittings.
