CRL P7 42in Polished SS 180° Centerpost Railing Kit No Fittings
CRL P7 42in Polished SS 180° Centerpost Railing Kit No Fittings
Regular price
$468.55 CAD
Regular price
Sale price
$468.55 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P7F42CPS
Shipping Weight: 12.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 12.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Cover Included
Yes
Base Plate Diameter
4-3/4 in. (121 mm)
Base Plate Mounting Holes
2
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Polished Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Standard post heights: 36" (914 mm) and 42" (1.07 m)
- Custom post heights also available
- Two standard stainless finishes; custom powder coat finishes also available

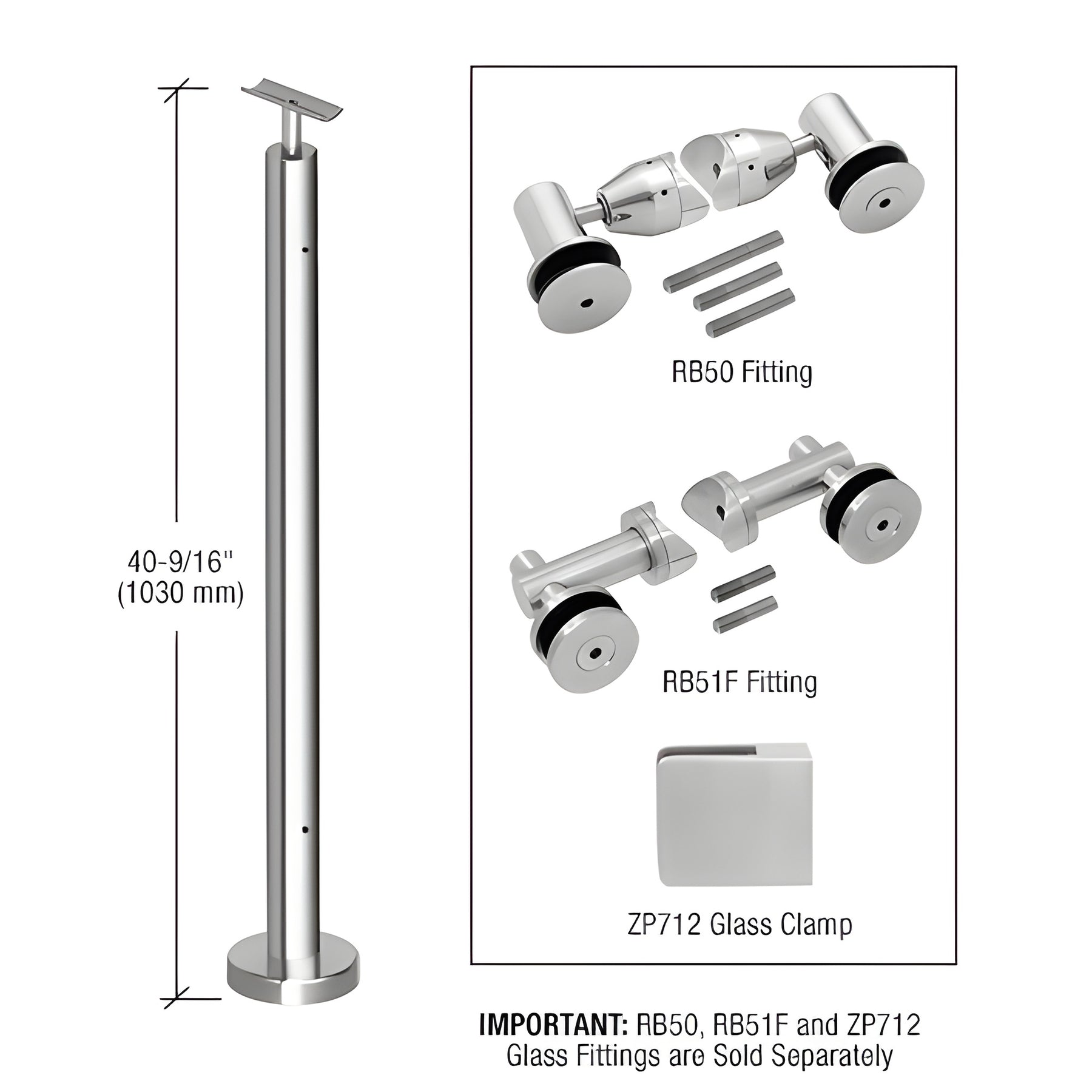

CRL's Surface Mounted Post Railing Kits (SKU: P7F42CPS) are manufactured from Schedule 40, 1.9" (48 mm) diameter stainless steel tubing and are designed for guard rail and hand rail applications. Saddles support 1-1/4" or 1-1/2" (31.8 or 38 mm) Schedule 40 hand rail tubing. Kits include a base plate, base cover flange, and welded top saddle. For screws to attach the top rail to the saddle, specify Cat. No. PRS1032 (10-32 x 5/8" stainless steel screws, 50 per pack).
Product Warning:
All P-Series post kits are sold without glass attachment fittings; those must be purchased separately.
Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for more information.
Ideal for commercial and residential surface-mounted glass railing projects, this stainless steel post railing kit offers durable construction and flexible customization options. Order SKU P7F42CPS or contact CRL for a quote and available glass attachment fittings.
