CRL P9 Polished Stainless 42-in End Post Glass Railing Kit
CRL P9 Polished Stainless 42-in End Post Glass Railing Kit
Regular price
$525.67 CAD
Regular price
Sale price
$525.67 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P942EPS
Shipping Weight: 13.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Length
5 in. (127 mm)
Base Plate Mounting Holes
4
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Polished Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Standard post height: 42" (1.07 m); custom post heights available
- Two standard stainless finishes; custom powder coat finishes available

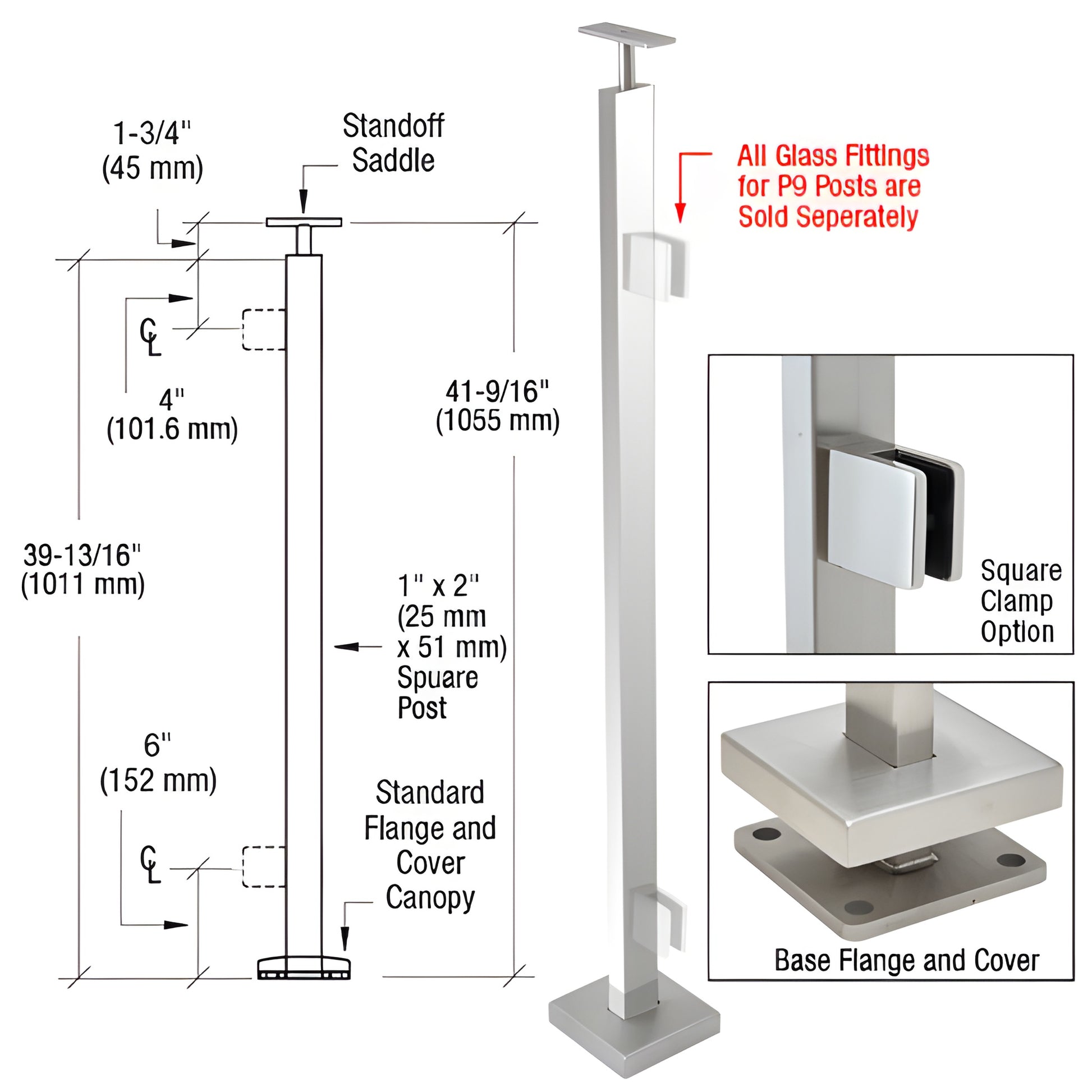

CRL P9 Surface Mounted Post Railing Kits (SKU P942EPS) are built from 1" x 2" (25 mm x 51 mm) stainless steel rectangular tubing for guardrail and handrail applications. Kits include a base plate, base cover flange, and a welded top saddle with vertical adjustment. Saddles support a 1" x 2" (25 mm x 51 mm) stainless steel rectangular top rail. For top-rail attachment screws, specify Cat. No. PRS1032 (10/32" x 5/8" stainless steel screws; sold 50 per pack).
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not impervious to rust or staining. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Key differentiators: surface mounted post design for easy installation, welded top saddle with vertical adjustment, customizable post heights and powder coat finishes—ideal for commercial and residential stainless steel railing projects. Order SKU P942EPS or contact us for a custom quote.
