• PHE7LBR polished brass CRL PHE7 kit - pivot patch fittings, transom/sidelite parts for 10/12mm tempered glass double doors
1 1

CRL

CRL Polished Brass Double Door Patch Kit w/ Lock for Transom/Sidelite

CRL Polished Brass Double Door Patch Kit w/ Lock for Transom/Sidelite

$1,314.97 CAD
$1,314.97 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHE7LBR
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Pair With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Polished Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16

Overview

  • For 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Five architectural finishes
  • Available with or without locks

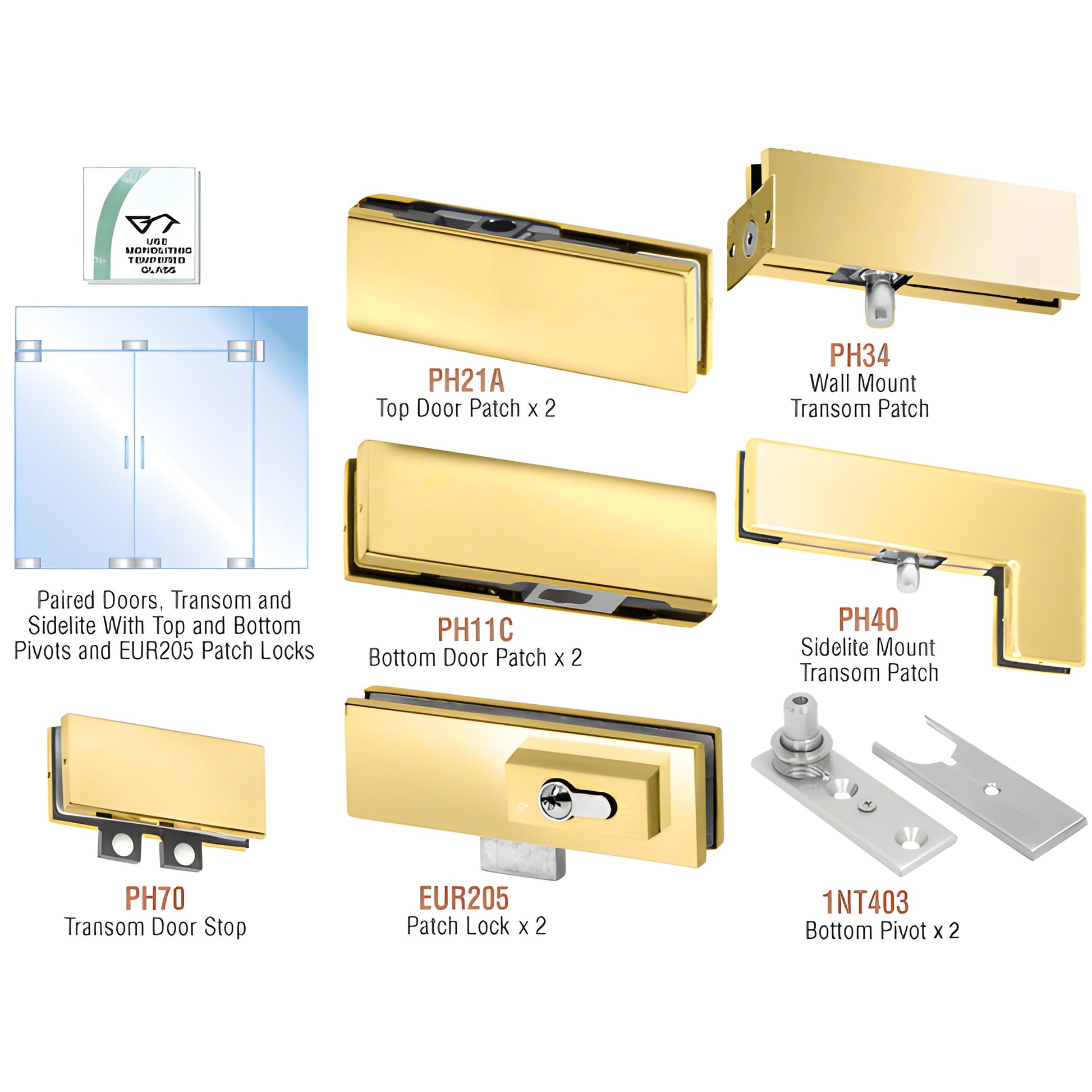

CRL PHE7 European Double Door Kits (SKU: PHE7LBR) include all hardware to complete a pair of free-swinging frameless glass doors with fixed transom and sidelite, except glass and any additional supports for the fixed transom and sidelite. Pivot setback: 2-9/16" (65 mm). Compatible with floor closers that use a tapered spindle (floor closer ordered separately). Ideal for commercial and high-end residential frameless glass door installations requiring pivot patch fittings and tempered glass hardware. Kit contains:
  • 1 - PH34 Wall Mount Transom Patch
  • 1 - PH40 Sidelite Mount Transom Patch
  • 2 - PH21A Top Door Patches
  • 2 - PH11C Bottom Door Patches
  • 1 - PH70 Transom Door Stop
  • 2 - 1NT403 Bottom Pivots
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)
Kits with locks also include two EUR205 patch locks. Cylinders, thumbturns, and keepers are ordered separately. NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate. If exact weight is required to determine shipping costs, contact CRL Customer Service before placing your order. Product images are representative; colors may vary with monitor settings.

Brass Finish Advisory:
Brass finishes are durable but prone to oxidation and may develop a tarnished appearance over time. See the Brass Finish Disclaimer in the Technical References section for care and longevity tips.

Order the CRL PHE7 European Double Door Kit (PHE7LBR) for durable pivot patch fittings for 10 or 12 mm tempered glass — contact us to confirm compatibility and place your order.
