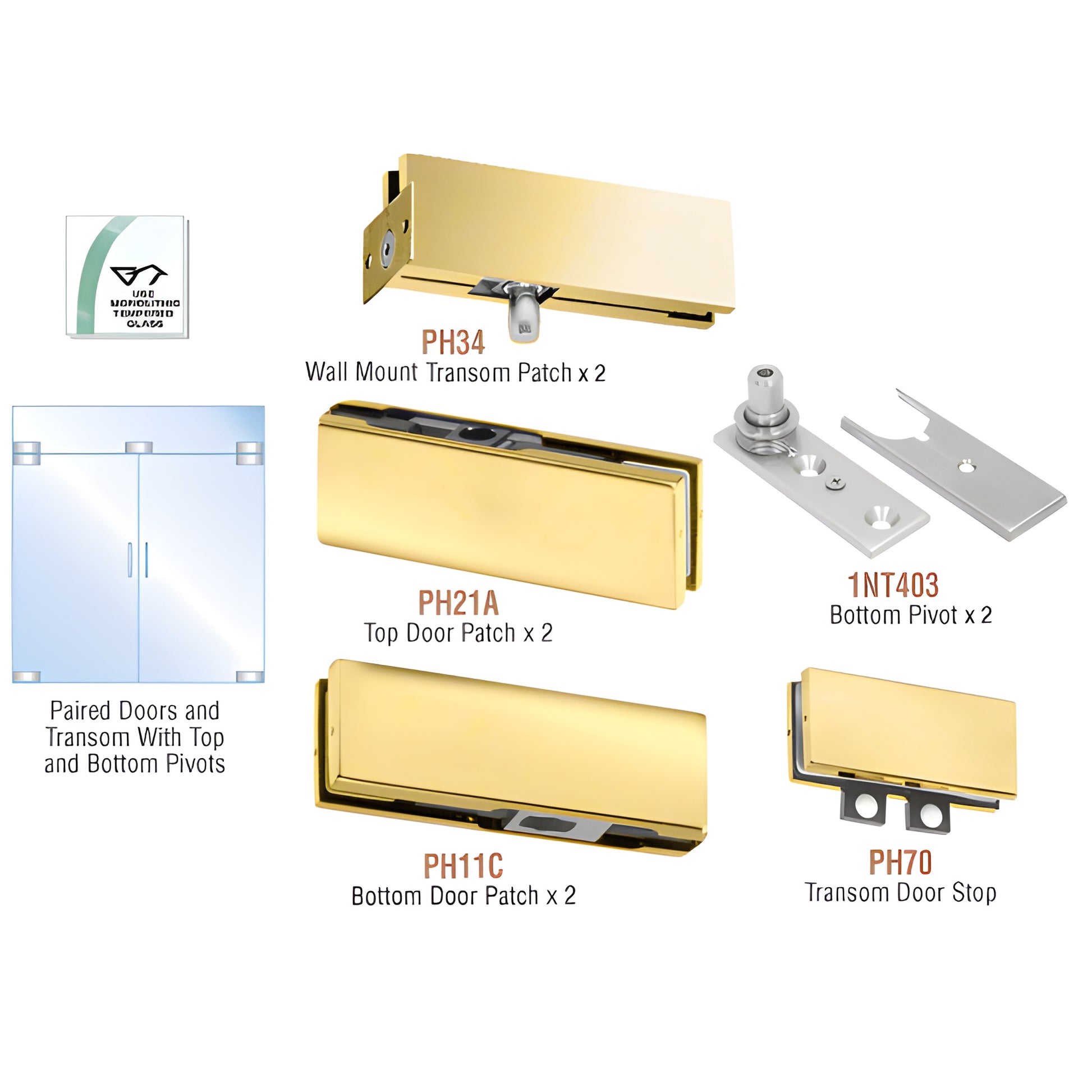

• PHE6BR polished brass European double door patch kit for 3/8-1/2" tempered glass with top, bottom, transom patches and pivots
1 1

CRL

CRL Polished Brass Euro Patch Kit Double Door w/ Transom - No Lock

CRL Polished Brass Euro Patch Kit Double Door w/ Transom - No Lock

$878.07 CAD
$878.07 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHE6BR
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Pair With Transom
Door Type
A Style Glass Door
Finish/Color
Polished Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16

Overview

  • Most Popular Design
  • Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Available with or without locks (SKU: PHE6BR)
CRL PHE6 European Double Door Kits include the hardware needed to assemble a pair of free-swinging glass doors with a fixed transom (glass and additional supports for the fixed transom not included). Pivot setback: 2-9/16" (65 mm). Compatible with a floor closer using a tapered spindle (ordered separately). Ideal for commercial and architectural applications requiring European double door kits for tempered glass. Kit Contains:
  • 2 - PH34 Wall Mount Transom Patches
  • 2 - PH21A Top Door Patches
  • 2 - PH11C Bottom Door Patches
  • 1 - PH70 Transom Door Stop
  • 2 - 1NT403 Bottom Pivots
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)
Kits with locks include two Cat. No. EUR205 patch locks; cylinders, thumbturns, and keepers are ordered separately. NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before submitting your order. Product images are of the actual product or a close representation; colors may vary by monitor.

Brass Finish Advisory:
Although durable, brass finishes can oxidize and develop a tarnished appearance over time regardless of initial packaging or storage. See the Brass Finish Disclaimer in the Technical References for care and maintenance details.

Shop this European double door kit for tempered glass (SKU: PHE6BR) now or contact us for a quote and installation guidance.
